Driver Door Central Lock (Arm)/Unlock (Disarm) Switch Failure

Test 1 - 3:

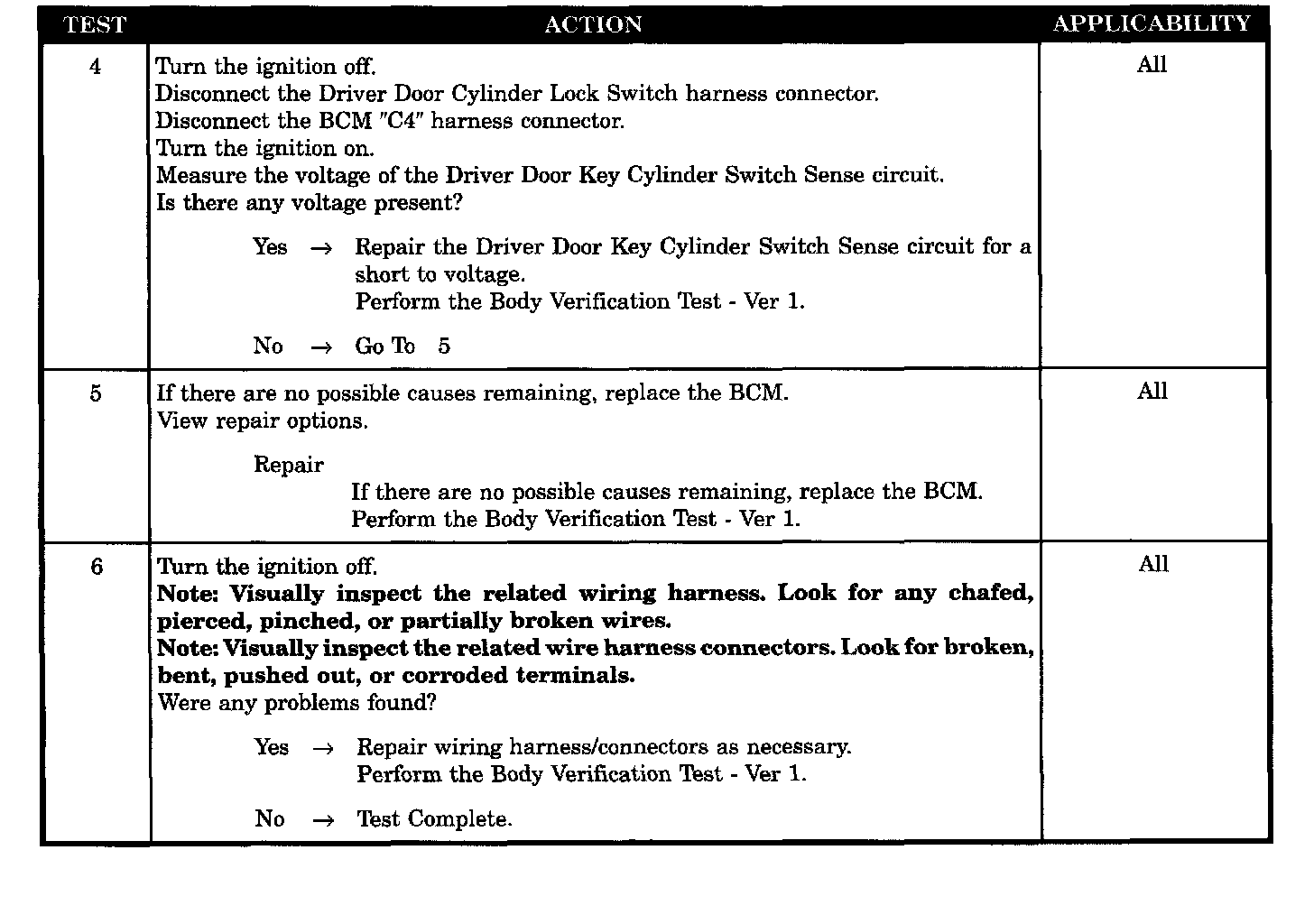

Test 4 - 6:

SYMPTOM
DRIVER DOOR CENTRAL LOCK (ARM)/UNLOCK (DISARM) SWITCH FAILURE

WHEN MONITORED
Continuously

SET CONDITION
The BCM detect a signal on the input for over 10 seconds.

POSSIBLE CAUSES
- Driver Door Key Cylinder Switch Sense Circuit Shorted To Voltage
- Binding Driver Door Cylinder Lock Switch
- Driver Door Cylinder Lock Switch Shorted To Voltage
- Wiring Harness Intermittent Defect
- Body Control Module
