Power Door Locks/RKE
>>
Automatic (Rolling) Door Locks
Automatic (Rolling) Door Locks

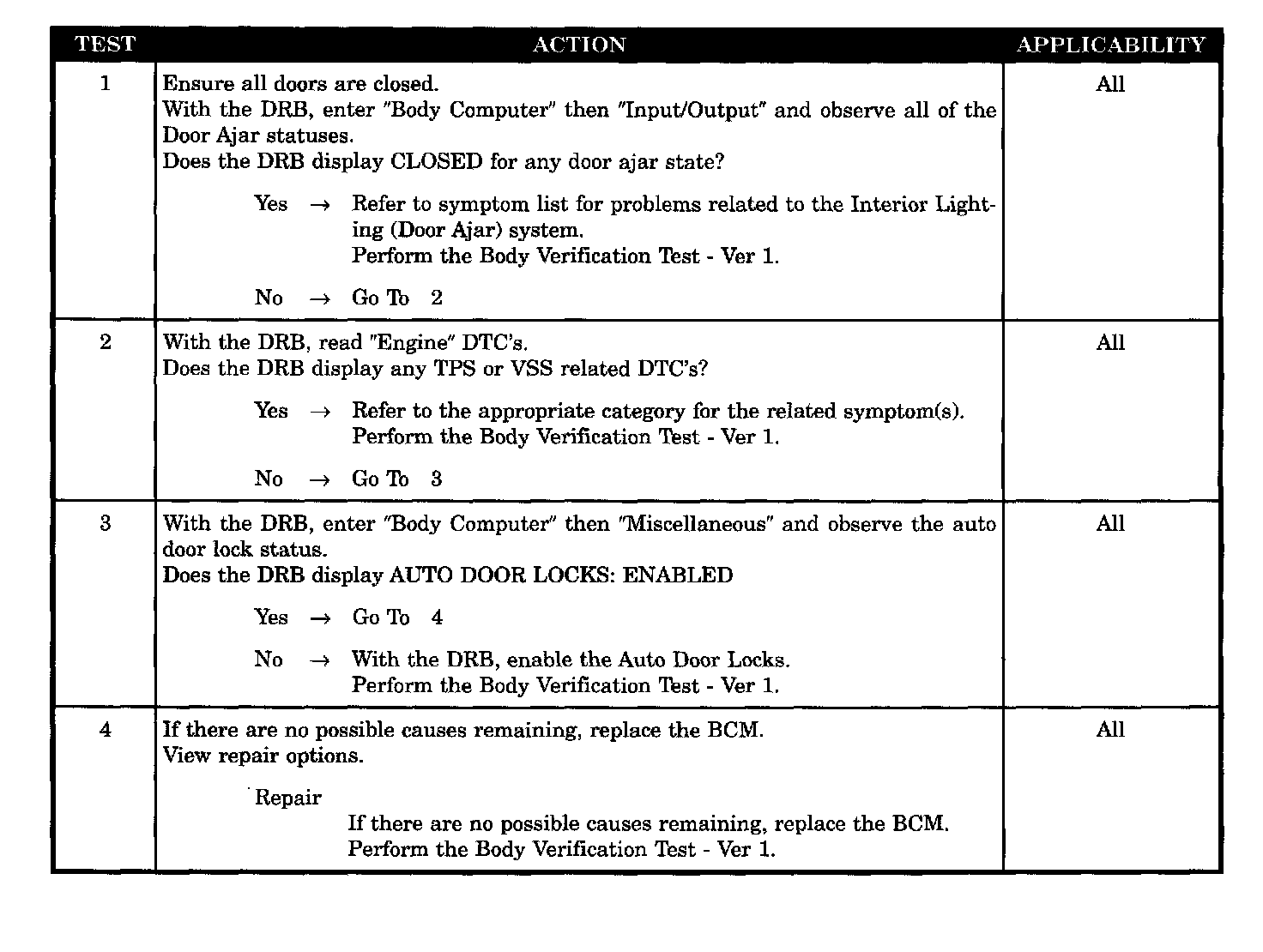

Test 1 - 4:
SYMPTOM
AUTOMATIC (ROLLING) DOOR LOCKS
POSSIBLE CAUSES
-
Body control module
-
Check the door ajar switch status
-
With the DRB check for PCM DTC'S
-
With the DRB enable auto door locks
