Incorrect Ambient Temperature Sensor Readings

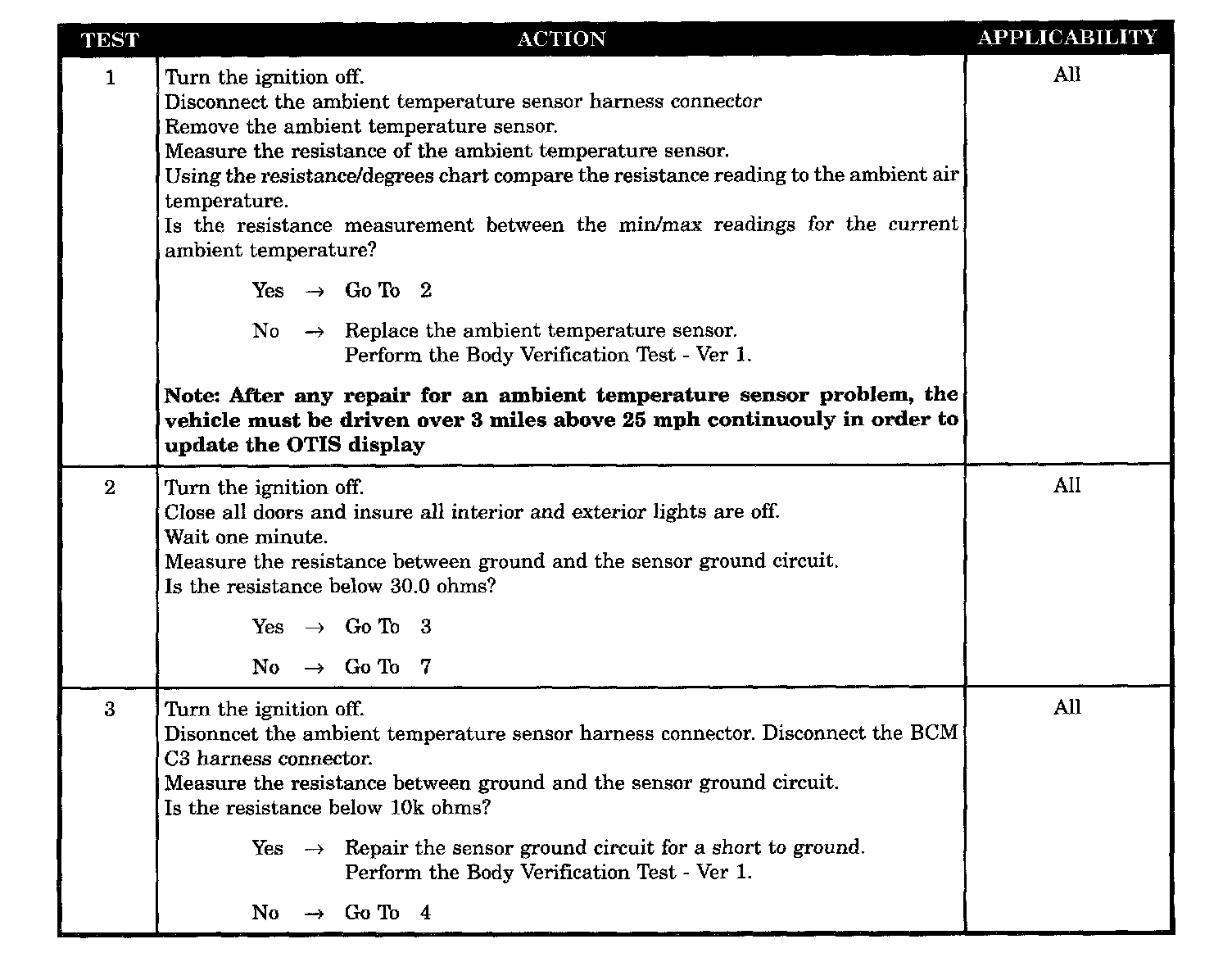

Test 1 - 3:

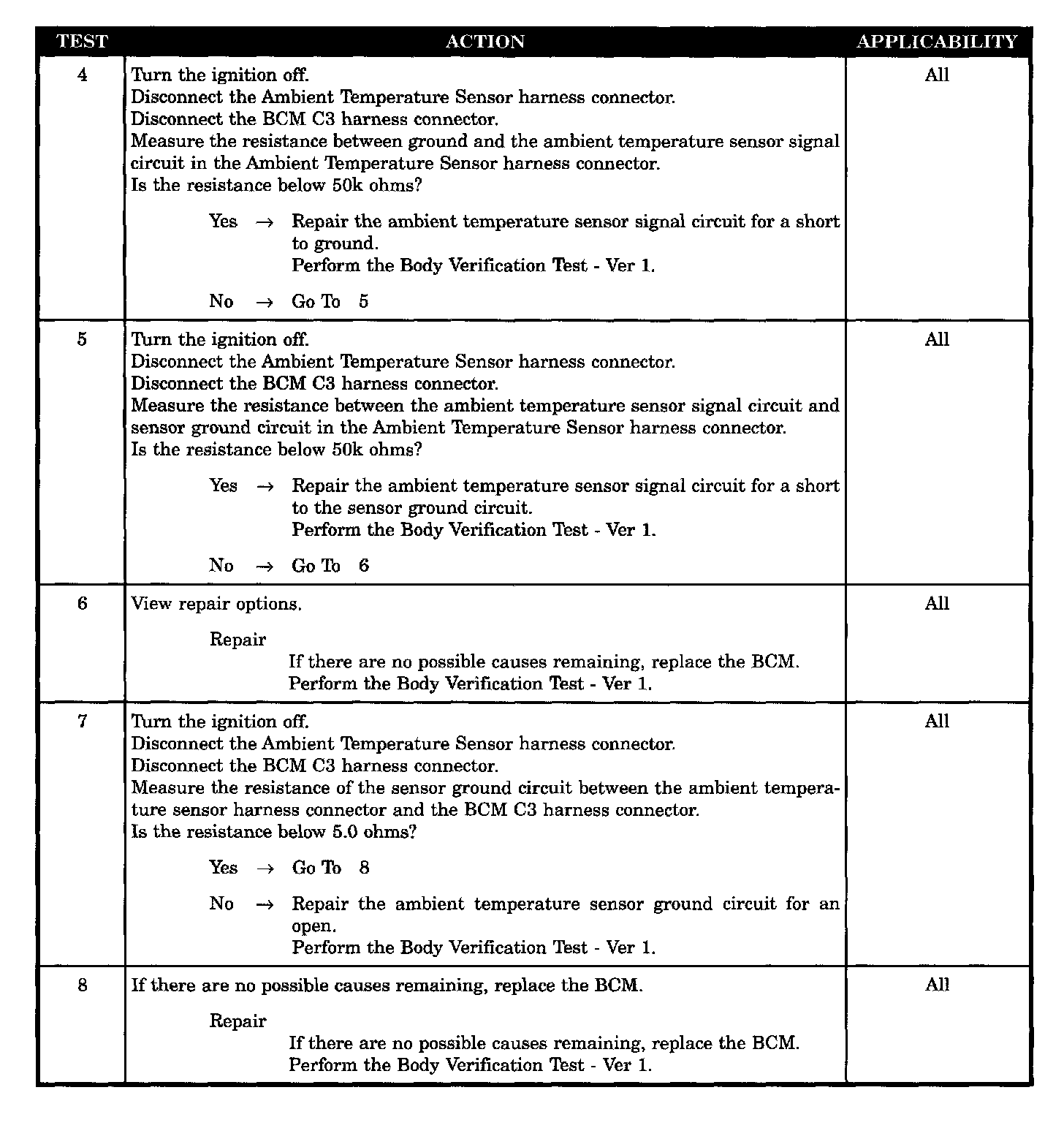

Test 4 - 8:

SYMPTOM
INCORRECT AMBIENT TEMPERATURE SENSOR READING

POSSIBLE CAUSES
- Body Control Module
- Ambient Temp Sensor Ground Circuit Open
- Sensor Ground Circuit Shorted To Ground
- Ambient TEMP Sensor Signal Circuit Shorted To Ground
- Ambient TEMP Sensor Signal Circuit Shorted To Sensor Ground
- Checking Ambient Temperature Sensor
- Body Control Module
