Ambient Temp Sensor Failure; OTIS Outside Temp Shows SC or OC

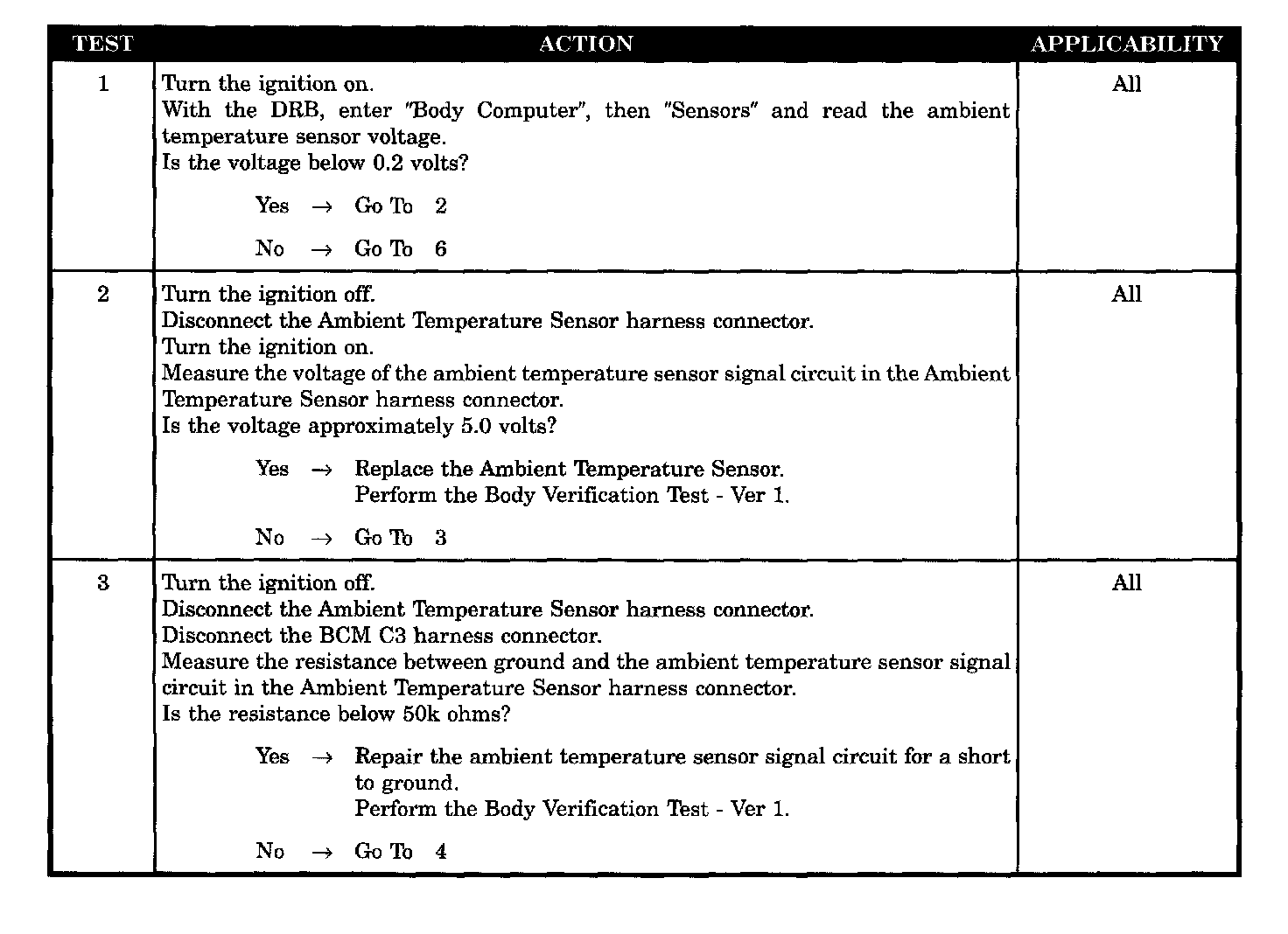

Test 1 - 3:

Test 4 - 8:

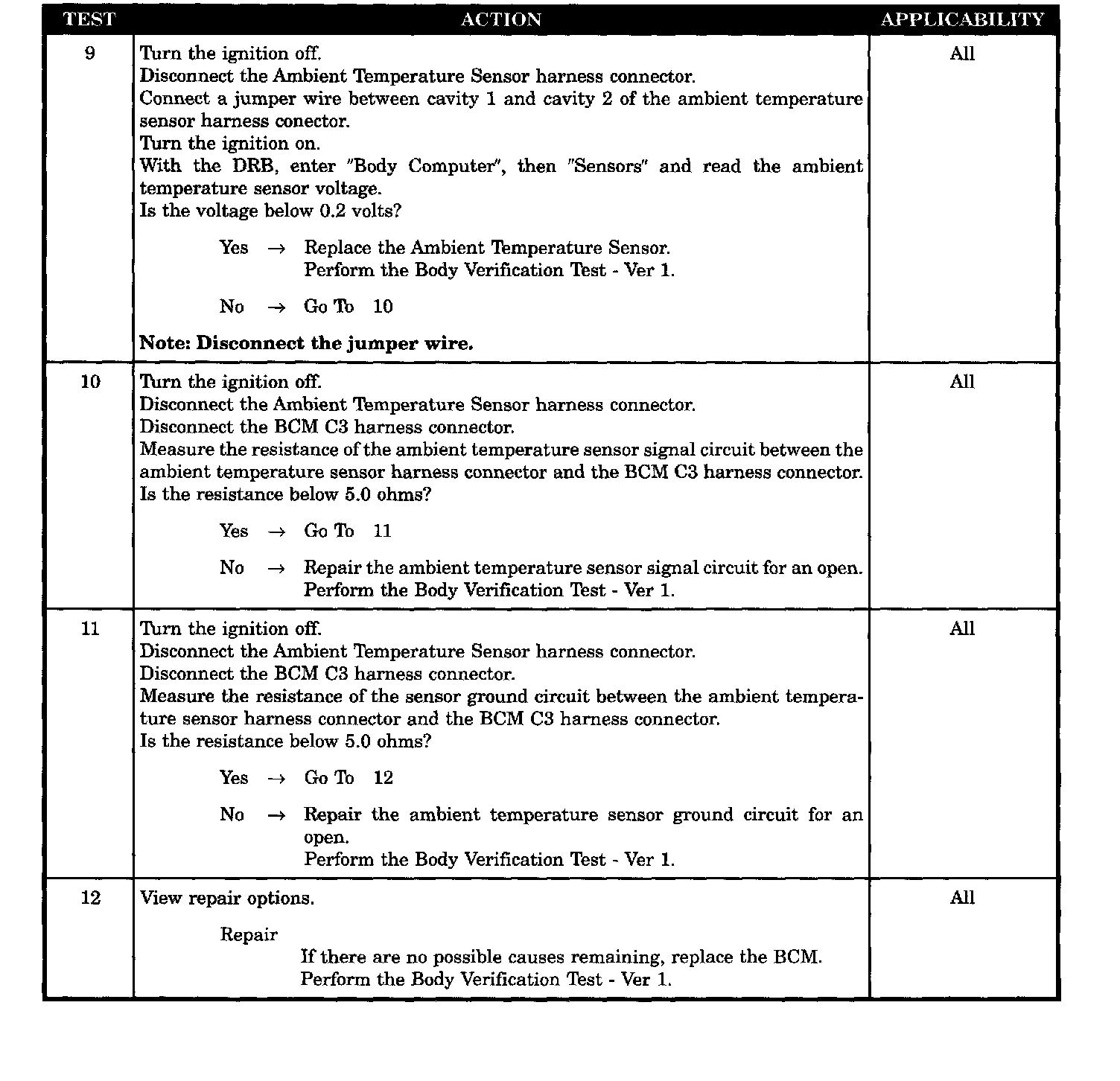

Test 9 - 12:

SYMPTOM
AMBIENT TEMPERATURE SENSOR FAILURE; OTIS OUTSIDE TEMPERATURE SHOWS SC OR OC

POSSIBLE CAUSES
- Ambient TEMP Sensor Ground Circuit Open
- Ambient TEMP Sensor Signal Circuit Open
- Ambient TEMP Sensor Signal Circuit Shorted To Ground
- Ambient TEMP Sensor Signal Circuit Shorted To Sensor Ground
- Ambient TEMP Sensor Signal Circuit Shorted To Voltage
- Ambient TEMP Sensor Internally Open
- Ambient TEMP Sensor Internally Shorted
- BCM - Ambient TEMP Sensor Circuit Open
- BCM - Ambient TEMP Sensor Signal Short To Ground
- BCM - Ambient TEMP Sensor Signal Shorted To Voltage
