Recliner Sensor Out of Range Low

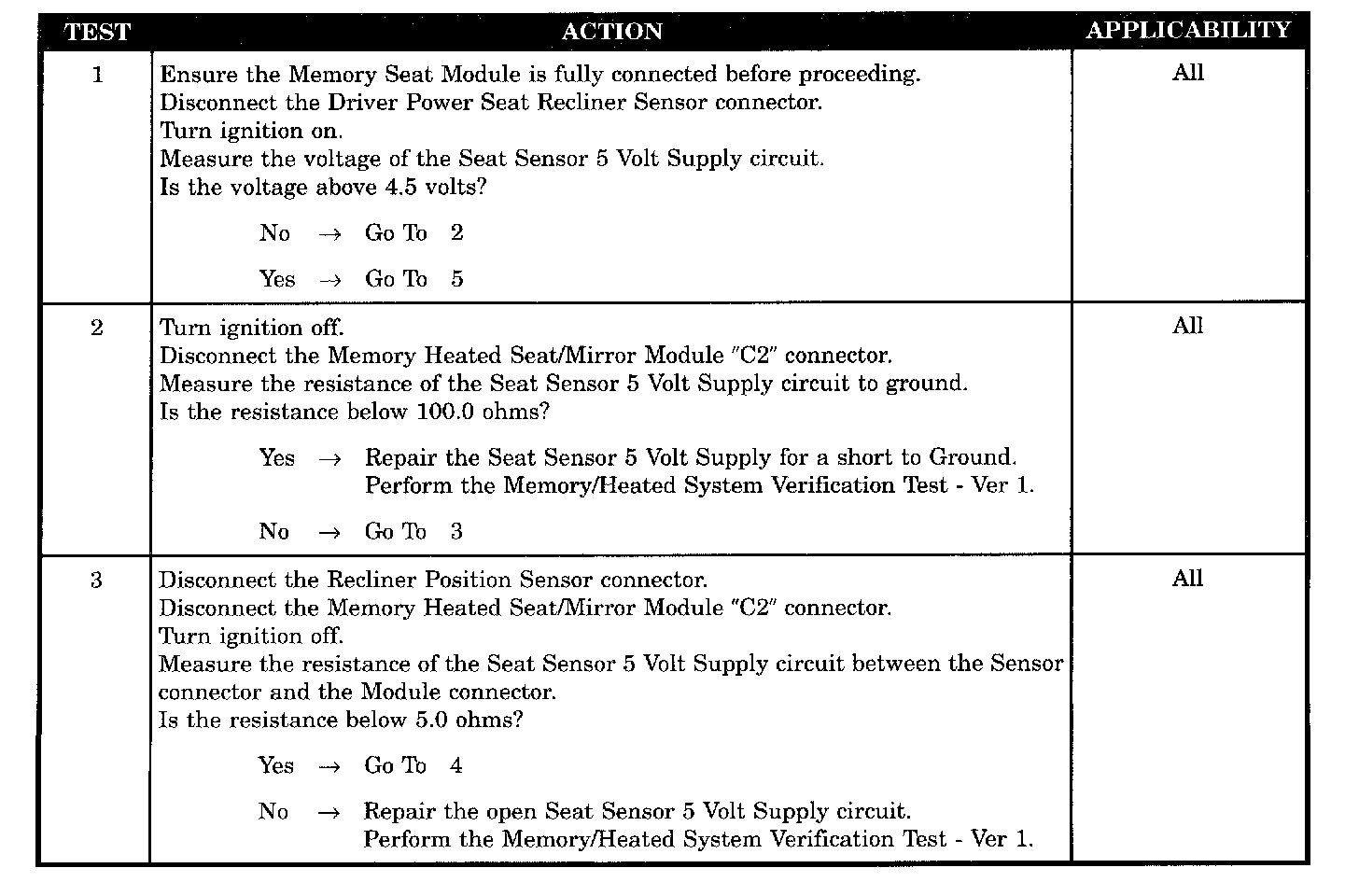

Test 1 - 3:

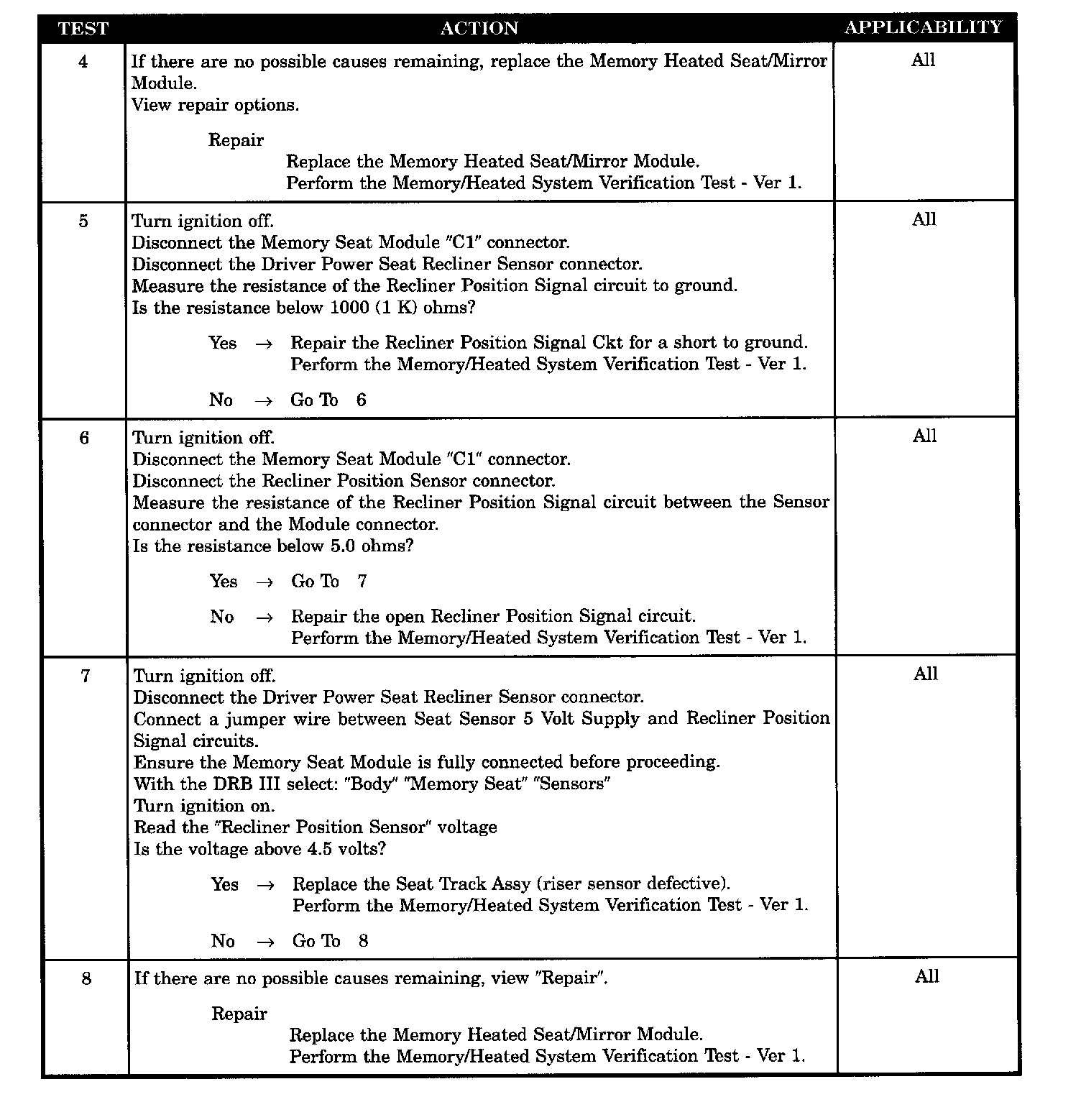

Test 4 - 8:

SYMPTOM
RECLINER SENSOR OUT OF RANGE LOW

WHEN MONITORED
Ignition ON.

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value lower than the Memory Heated Seat/Mirror Module has stored in EEPROM.

POSSIBLE CAUSES
- Recliner Position Signal CKT Open
- Recliner Position Signal CKT Short To Ground
- Seat Sensor 5 V Supply Short To Ground
- Seat Sensor 5 Volt Supply Open
- Defective Recliner Position Sensor (low)
- Memory Heated Seat/Mirror Module
- Memory Heated Seat/Mirror Module
