Passenger Mirror Vertical Sensor Out of Range Low

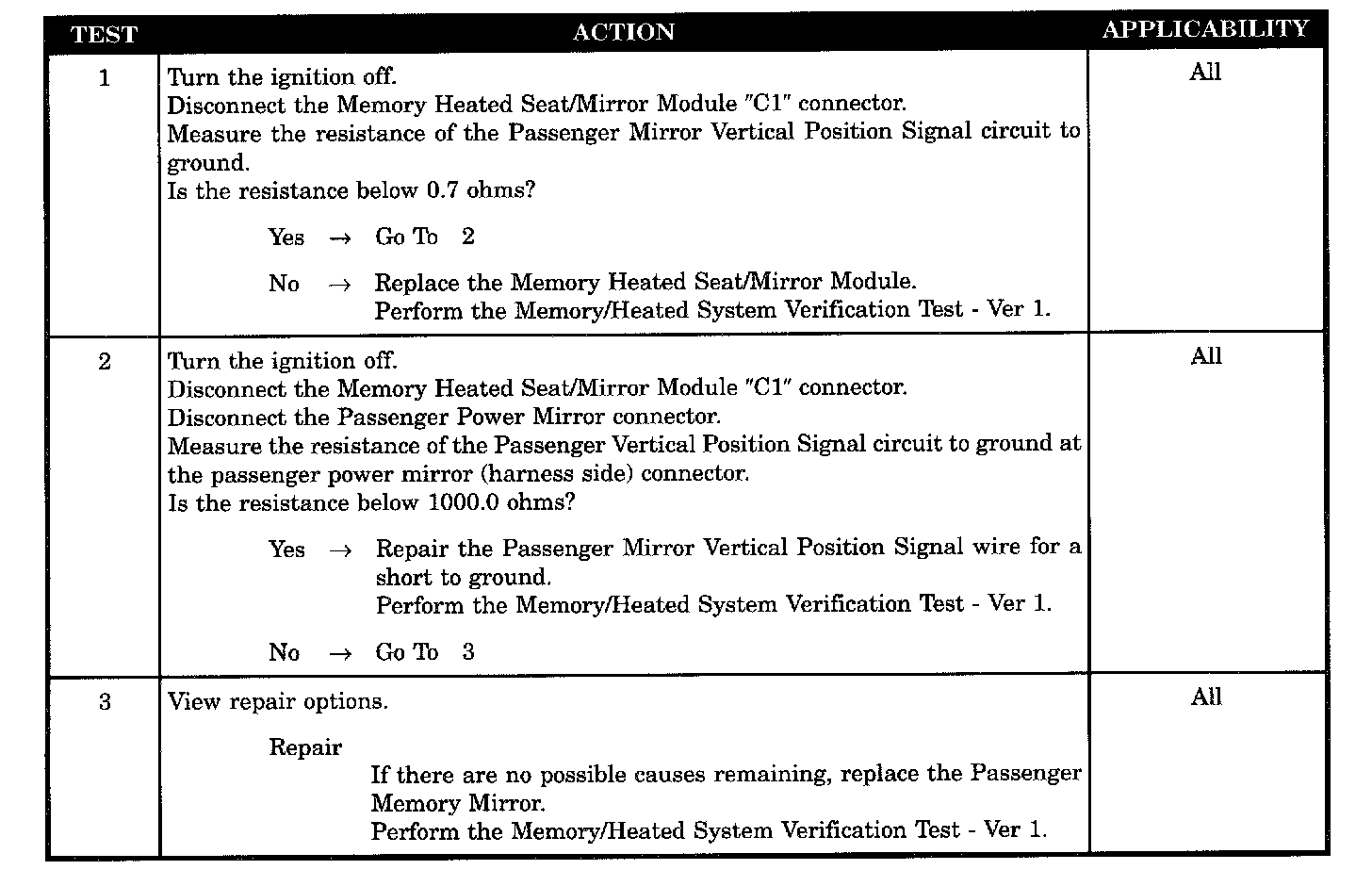

Test 1 - 3:

SYMPTOM
PASSENGER MIRROR VERTICAL SENSOR OUT OF RANGE LOW

WHEN MONITORED
Ignition ON.

SET CONDITION
This code is set when the mirror sensor feedback to the MHSMM is less than the mirror out of range low value stored in EEPROM.

POSSIBLE CAUSES
- Passenger Mirror Vertical Position Signal Wire Short To Ground
- Passenger Memory Mirror
- Memory Heated Seat/Mirror Module
