Passenger Mirror Vertical Sensor Out of Range High

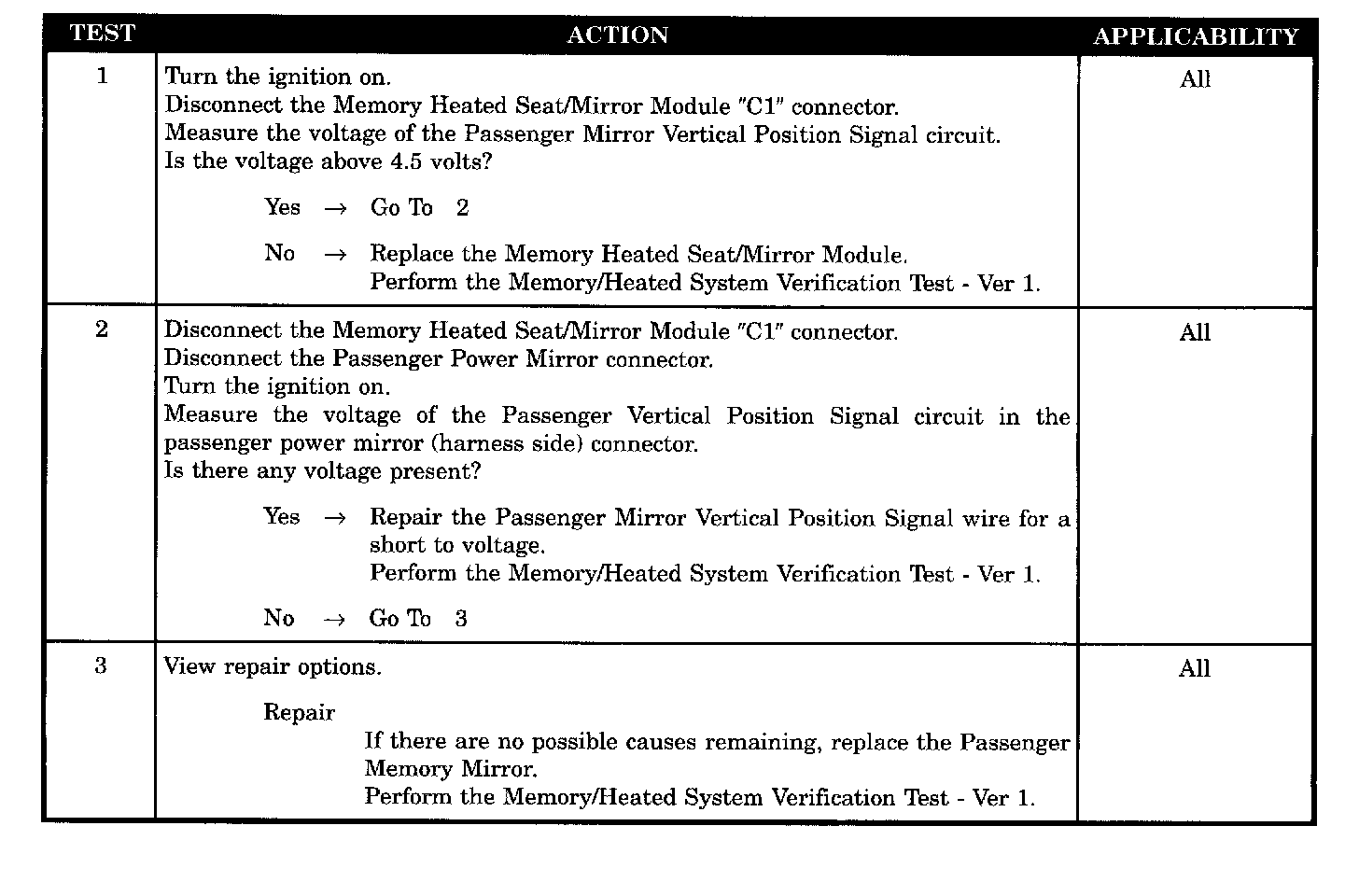

Test 1 - 3:

SYMPTOM
PASSENGER MIRROR VERTICAL SENSOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition ON.

SET CONDITION
This code is set when the mirror sensor feedback to the MHSMM is greater than the mirror out of range high value stored in EEPROM.

POSSIBLE CAUSES
- Passenger Mirror Vertical Position Signal Wire Short To Voltage
- Passenger Memory Mirror
- Memory Heated Seat/Mirror Module
