Horizontal Sensor Out of Range Low

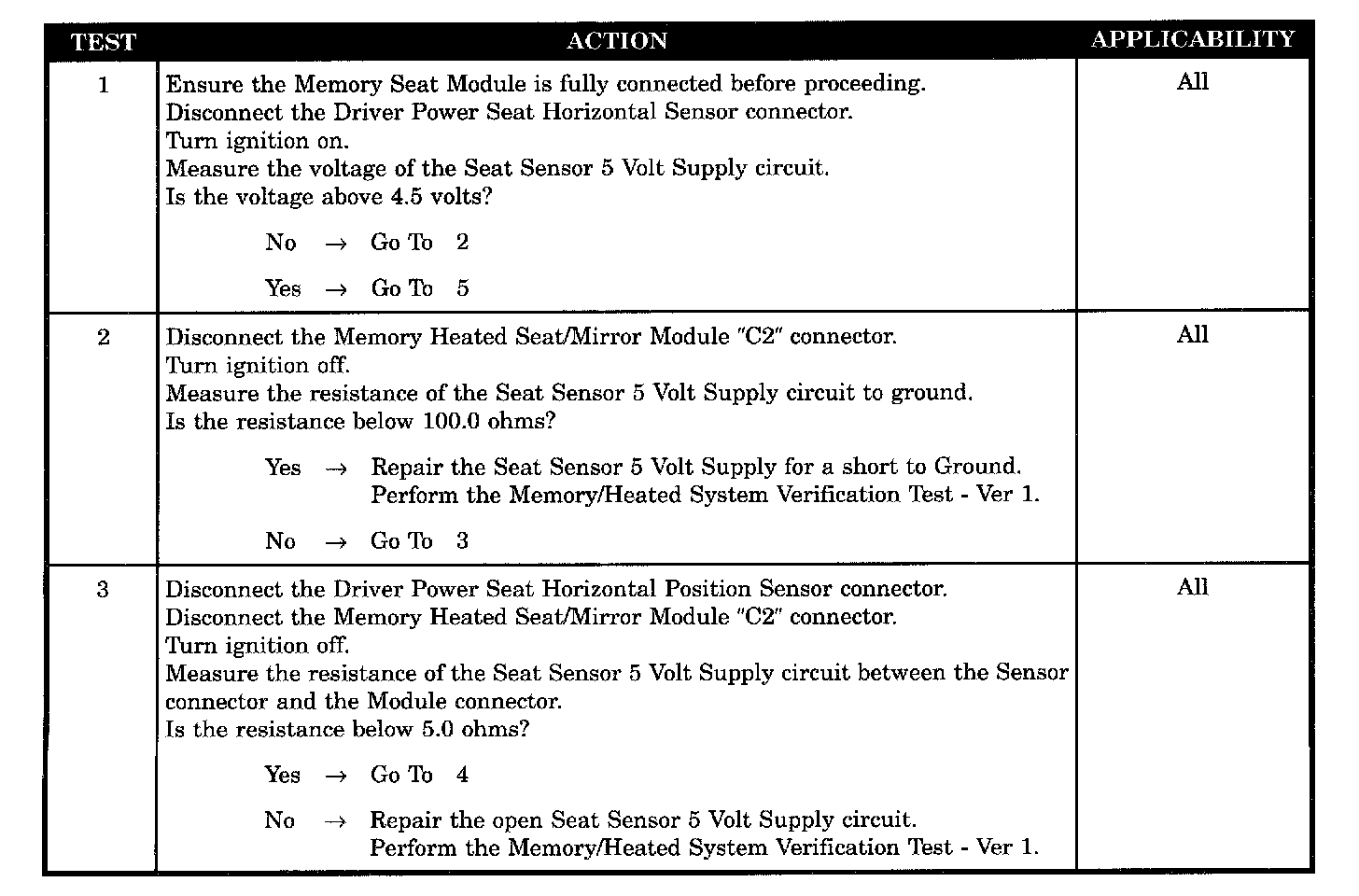

Test 1 - 3:

Test 4 - 8:

SYMPTOM
HORIZONTAL SENSOR OUT OF RANGE LOW

WHEN MONITORED
Ignition ON.

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value lower than the Memory Heated Seat/Mirror Module has stored in EEPROM.

POSSIBLE CAUSES
- Seat Sensor 5V Supply SHT GND
- Seat Sensor 5 Volt Supply Open
- Horizontal Sensor Defective (low)
- Horizontal POS Signal CKT Short To Ground
- Seat Horizontal Position Signal CKT Open
- Memory Heated Seat/mirror Module
- Memory Heated Seat/mirror Module
