Horizontal Sensor Out of Range High

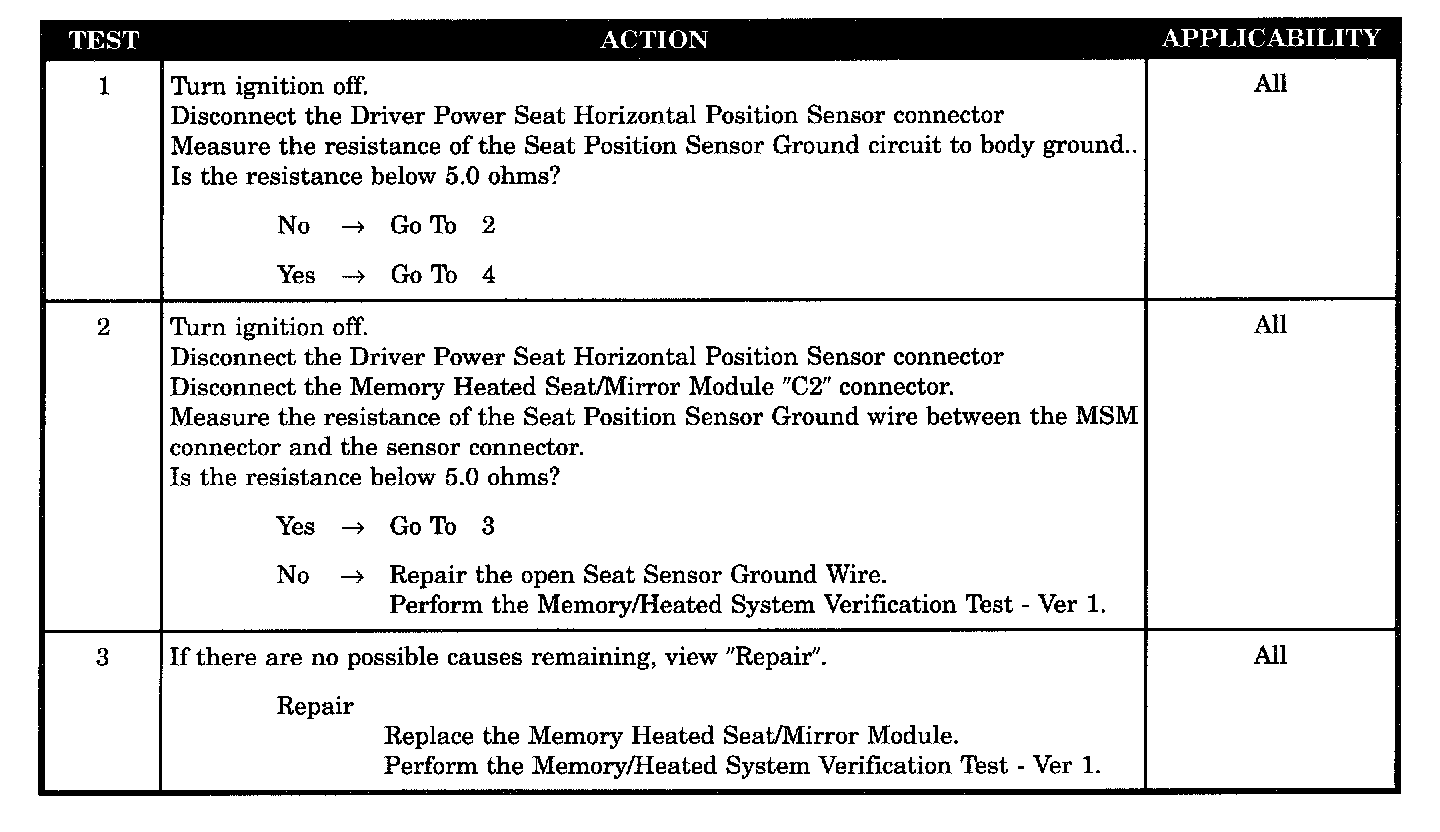

Test 1 - 3:

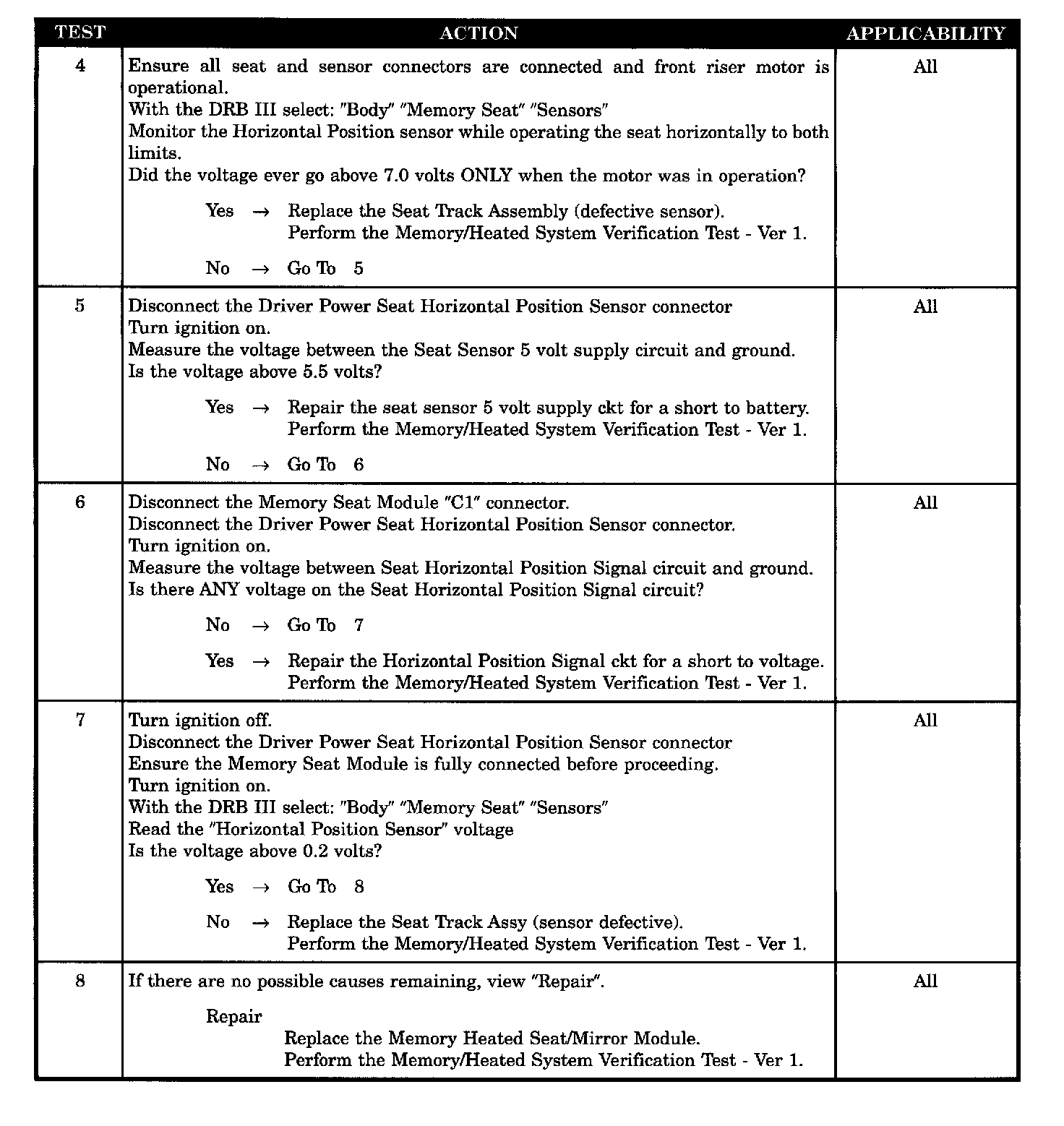

Test 4 - 8:

SYMPTOM
HORIZONTAL SENSOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition ON.

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value higher than the Memory Heated Seat/Mirror Module has stored in EEPROM.

POSSIBLE CAUSES
- Seat sensor ground wire open
- Horizontal position sensor defective high
- Seat sensor 5 volt supply short to battery
- Checking seat horizontal POS signal short to voltage
- Seat horizontal position signal short to motor
- Memory heated seat/mirror module
- Memory heated seat/mirror module
