Front Riser Sensor Out of Range Low

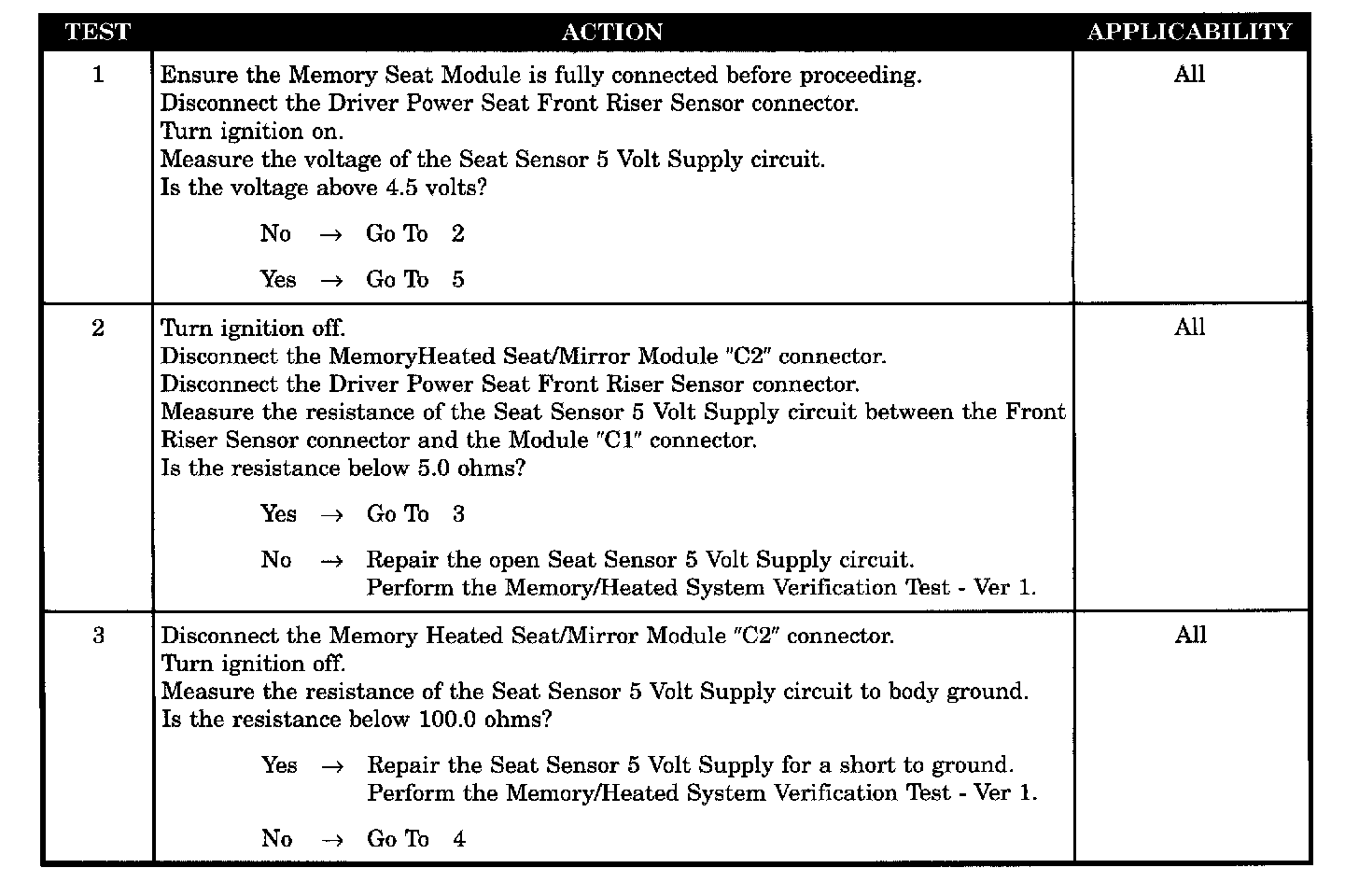

Test 1 - 3:

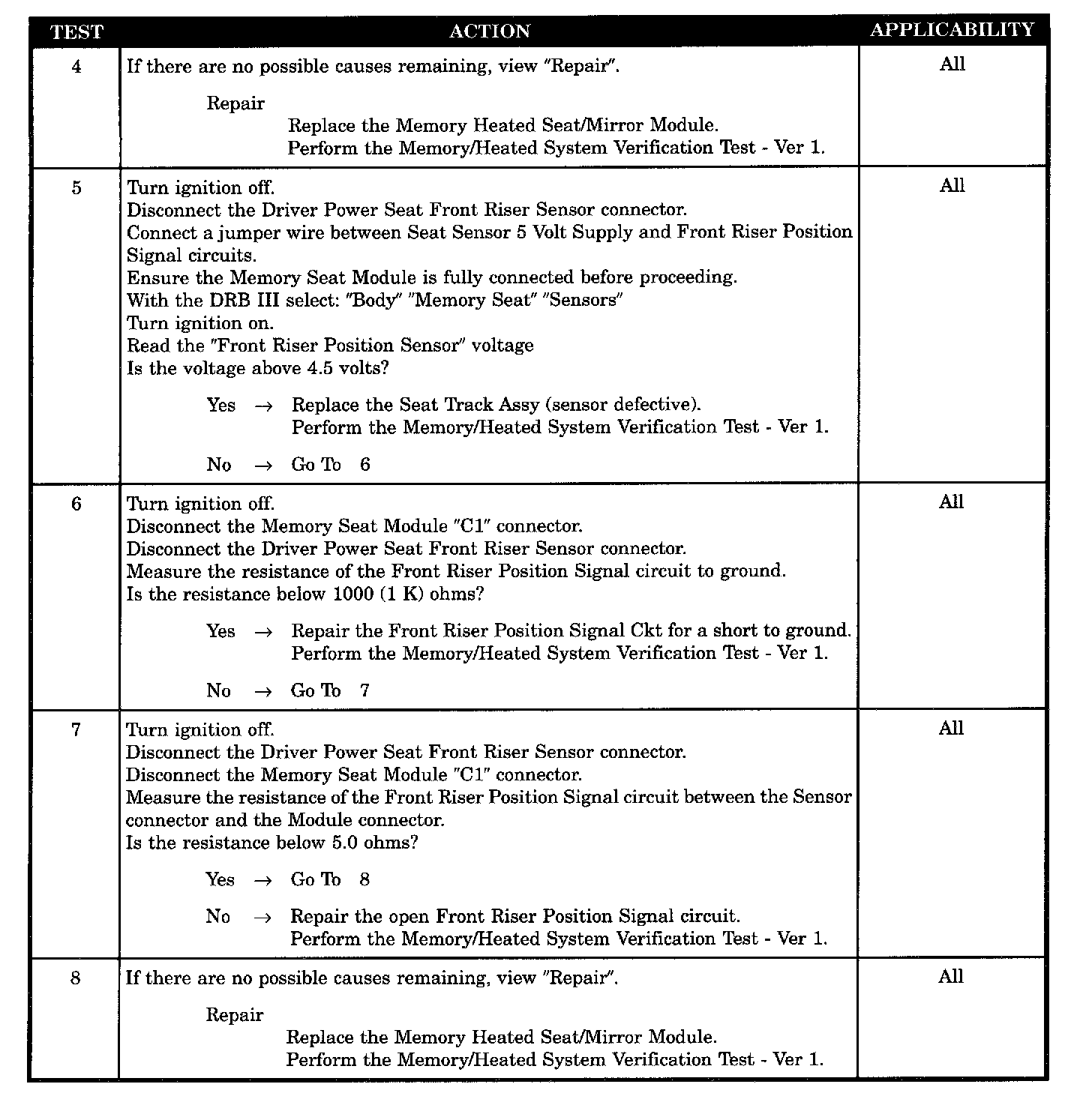

Test 4 - 8:

SYMPTOM
FRONT RISER SENSOR OUT OF RANGE LOW

WHEN MONITORED
Ignition ON.

SET CONDITION
This code is immediately set when the seat motor potentiometer feeds a value lower than the Memory Seat Module has stored in EEPROM.

POSSIBLE CAUSES
- Front riser POS signal CKT short to ground
- Front riser position signal CKT open
- Seat sensor 5 volt supply open
- Seat sensor 5 V supply short to ground
- Front riser sensor defective (low)
- Memory heated Seat/Mirror module
- Memory heated Seat/Mirror module
