Front Riser Sensor Out of Range High

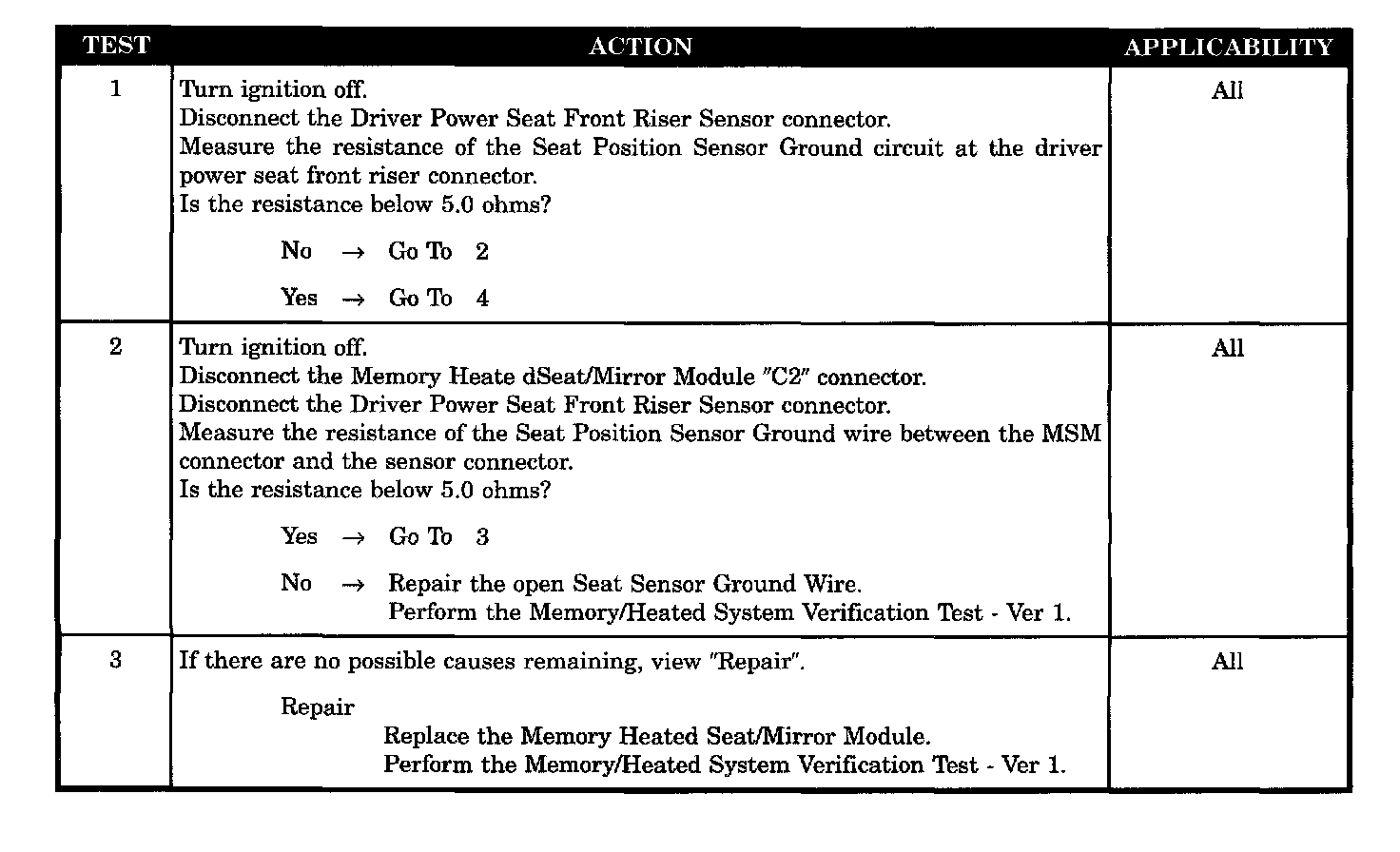

Test 1 - 3:

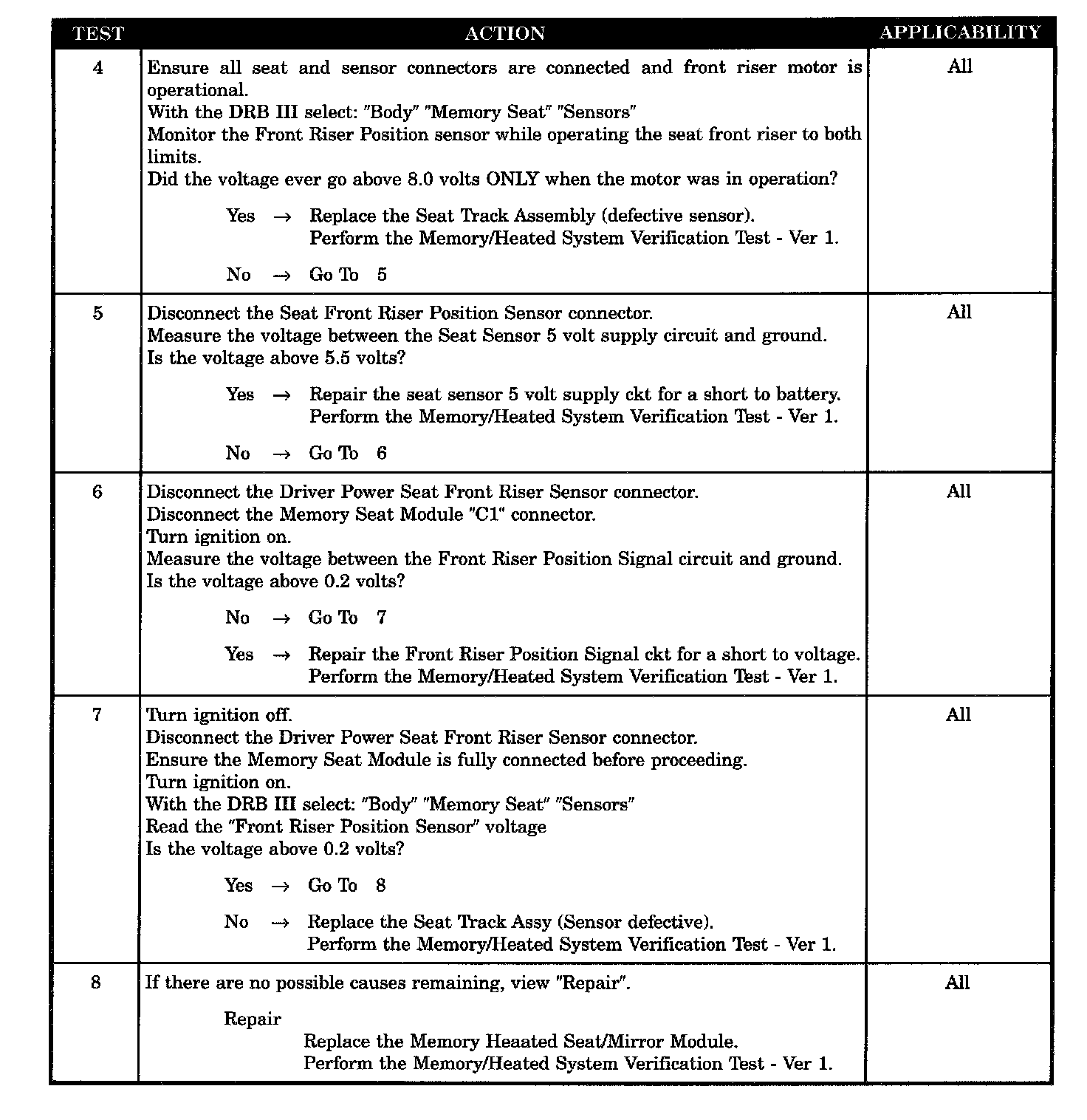

Test 4 - 8:

SYMPTOM
FRONT RISER SENSOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition ON.

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value higher than the Memory Seat Module has stored in EEPROM.

POSSIBLE CAUSES
- Seat Sensor Ground Wire Open
- Front Riser Sensor Signal Short To Motor
- Front Riser POS Signal CKT Short To Voltage
- Front Riser Sensor Defective High
- Seat Sensor 5 Volt Supply Short To Battery
- Memory Heated Seat/Mirror Module
- Memory Heated Seat/Mirror Module
