Driver Mirror Horizontal Sensor Out of Range Low

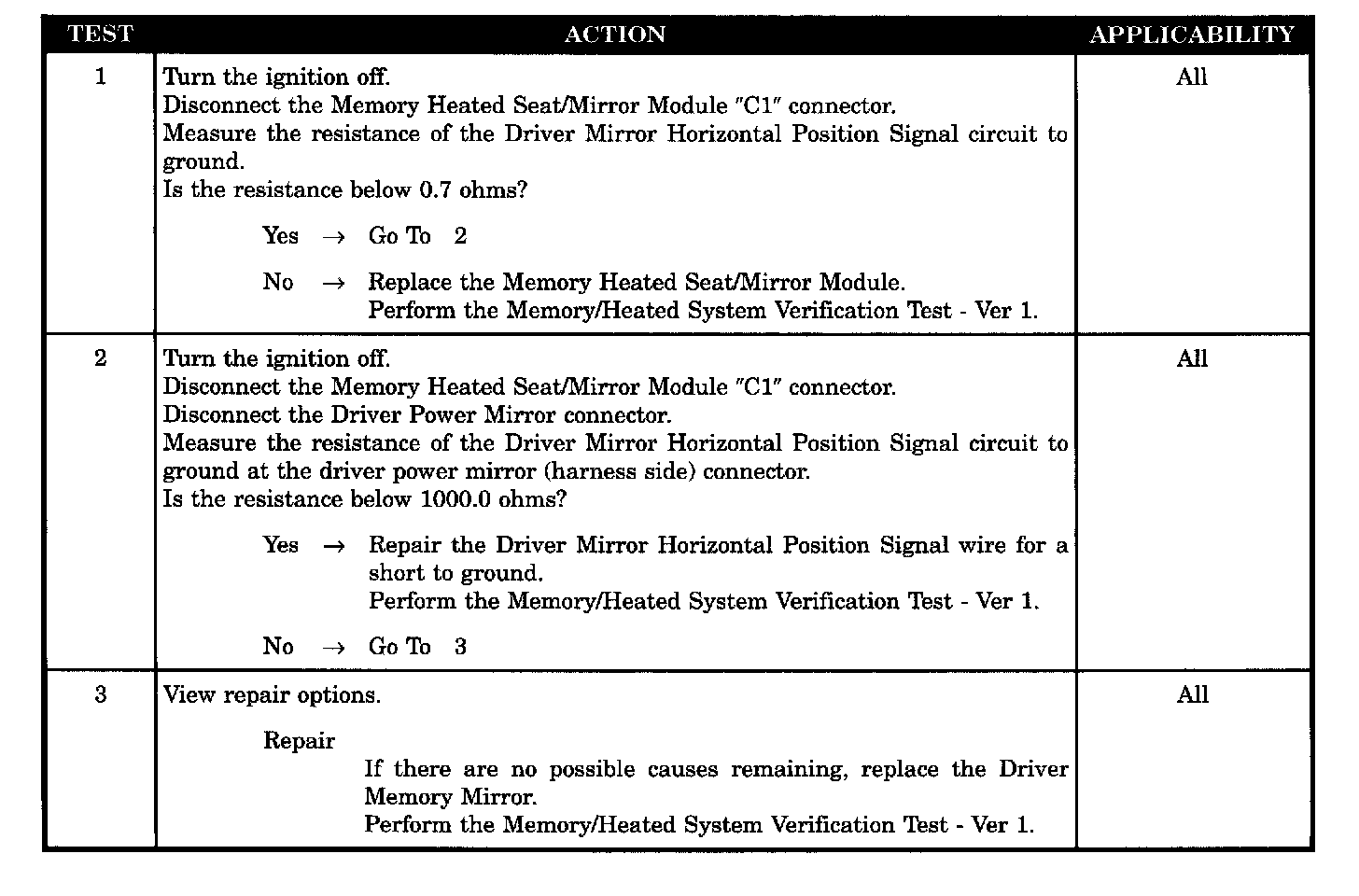

Test 1 - 3:

SYMPTOM
DRIVER MIRROR HORIZONTAL SENSOR OUT OF RANGE LOW

WHEN MONITORED
Ignition ON.

SET CONDITION
This code is set when the mirror sensor feedback to the MHSMM is less than the mirror out of range low value stored in EEPROM.

POSSIBLE CAUSES
- Driver mirror horizontal position signal wire short to ground
- Driver memory mirror
- Memory heated seat/mirror module
