Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Interior Lighting >> Courtesy Lamps Inoperative From Drivers Door

Courtesy Lamps Inoperative From Drivers Door

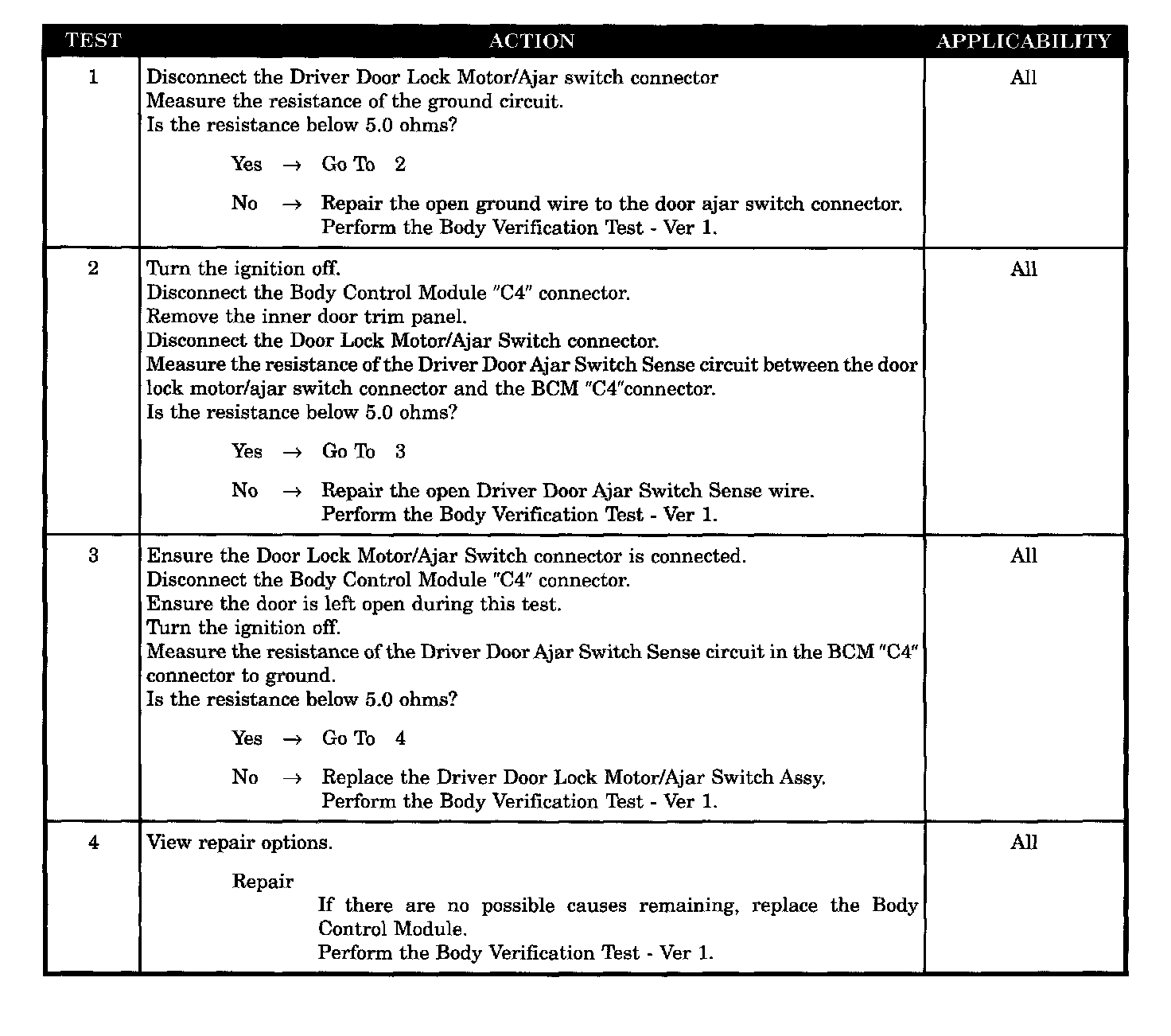

Test 1 - 4:




SYMPTOM
COURTESY LAMPS INOPERATIVE FROM DRIVERS DOOR

POSSIBLE CAUSES
- Open ground wire
- Open driver door ajar switch sense
- Defective driver door ajar switch
- Body control module
