Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Interior Lighting >> Courtesy Lamps Inoperative From Dome Lamp Switch Only

Courtesy Lamps Inoperative From Dome Lamp Switch Only

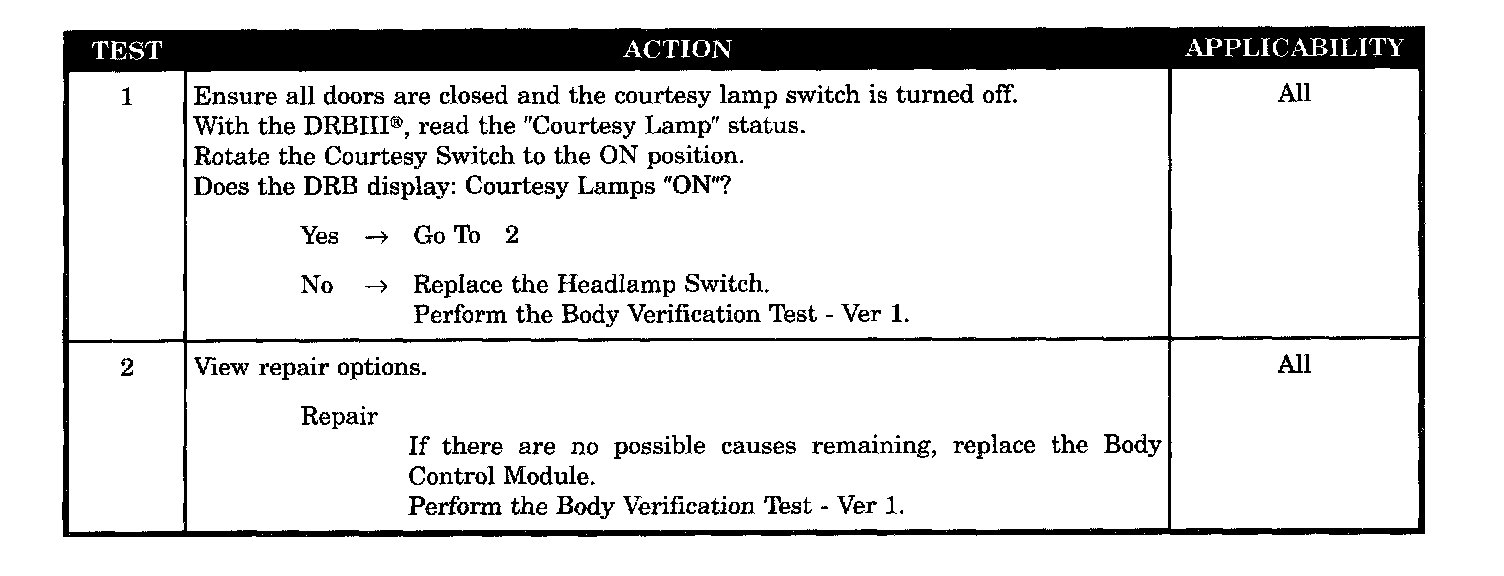

Test 1 - 2:

SYMPTOM
COURTESY LAMPS INOPERATIVE FROM DOME LAMP SWITCH ONLY

POSSIBLE CAUSES
- Headlamp switch dimmer
- BCM
