Courtesy Lamps Inoperative - Overhead Lamps

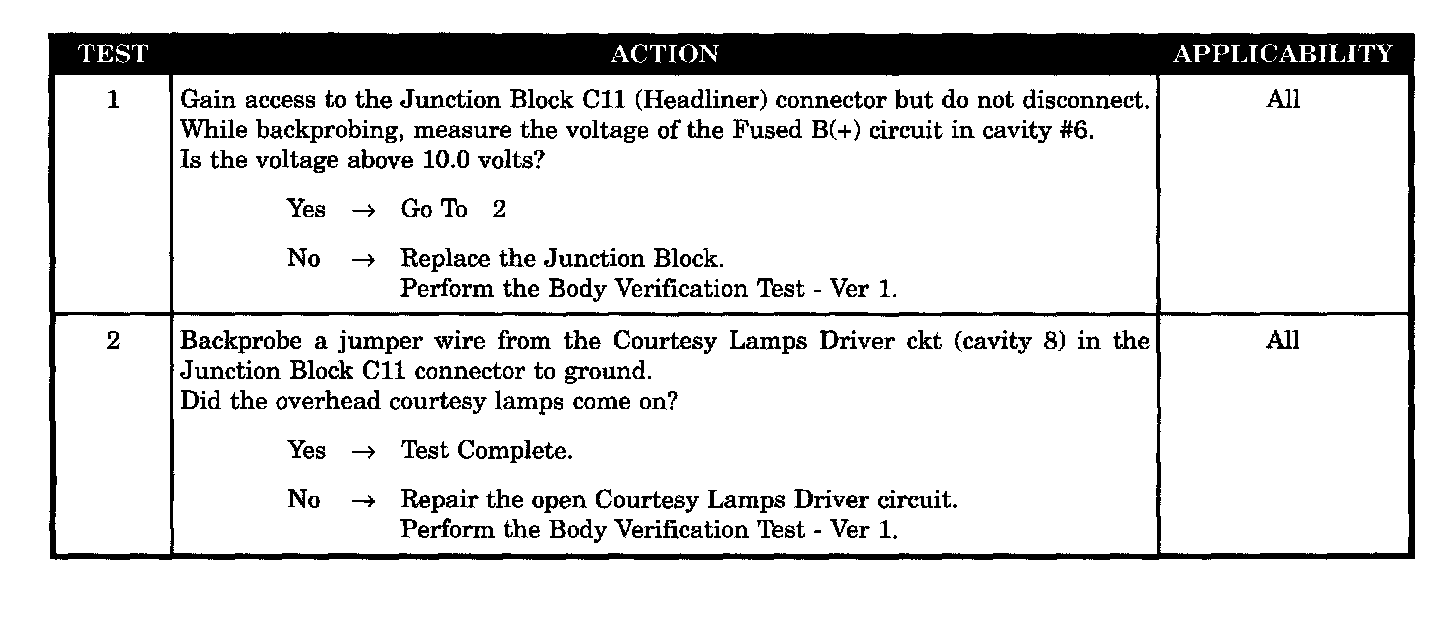

Test 1 - 2:




SYMPTOM
COURTESY LAMPS INOPERATIVE - OVERHEAD LAMPS

POSSIBLE CAUSES
- Junction block open
- Overhead courtesy lamps driver CKT open
