Courtesy Lamps Inoperative - Door Lamps
Courtesy Lamps Inoperative - Door Lamps

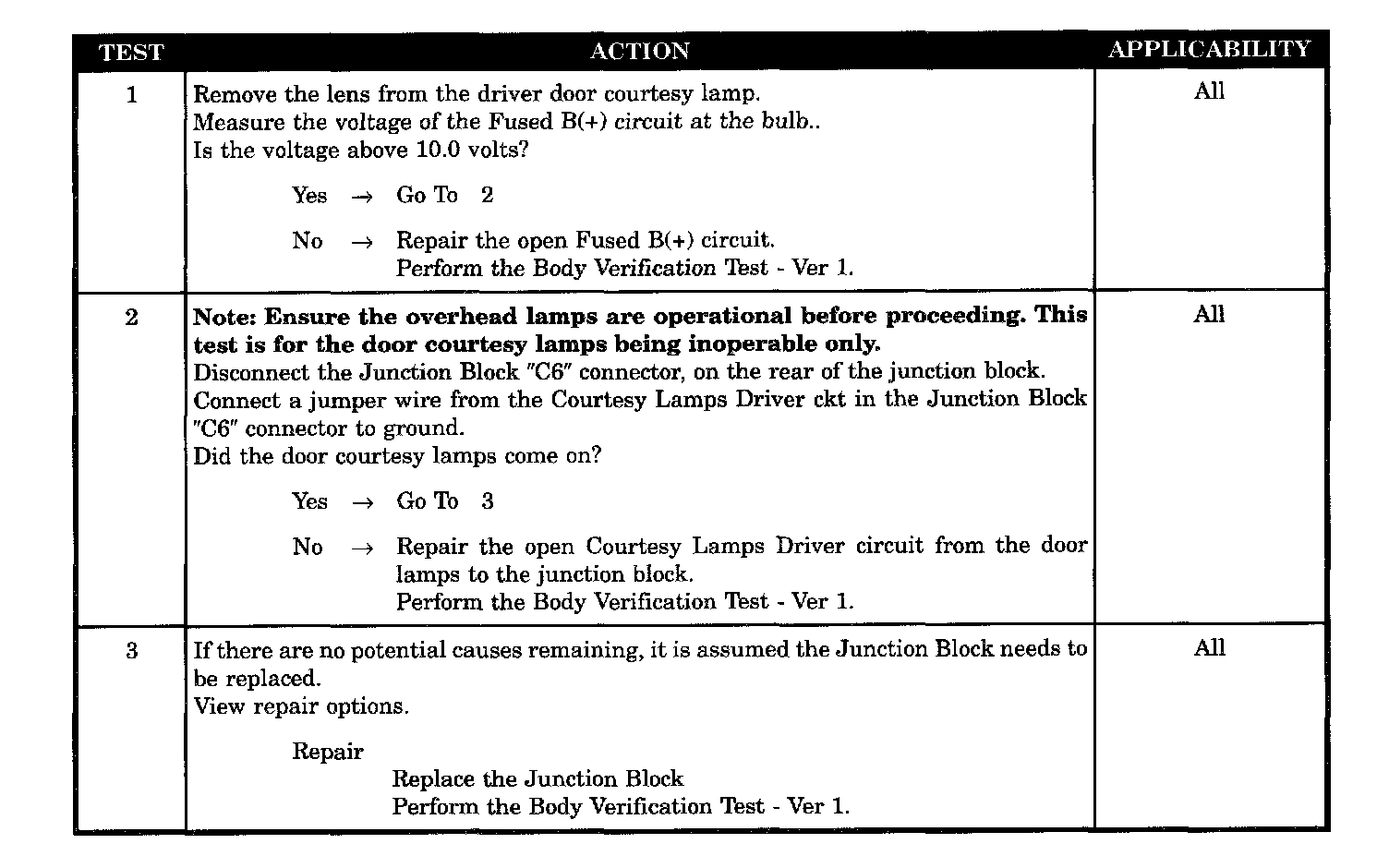

Test 1 - 3:
SYMPTOM
COURTESY LAMPS INOPERATIVE - DOOR LAMPS
POSSIBLE CAUSES
-
Open fused B(+) to door lamps
-
Courtesy lamps driver circuit open
-
Junction block open
