Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Interior Lighting >> Courtesy Lamps Inoperative - All Lamps

Courtesy Lamps Inoperative - All Lamps

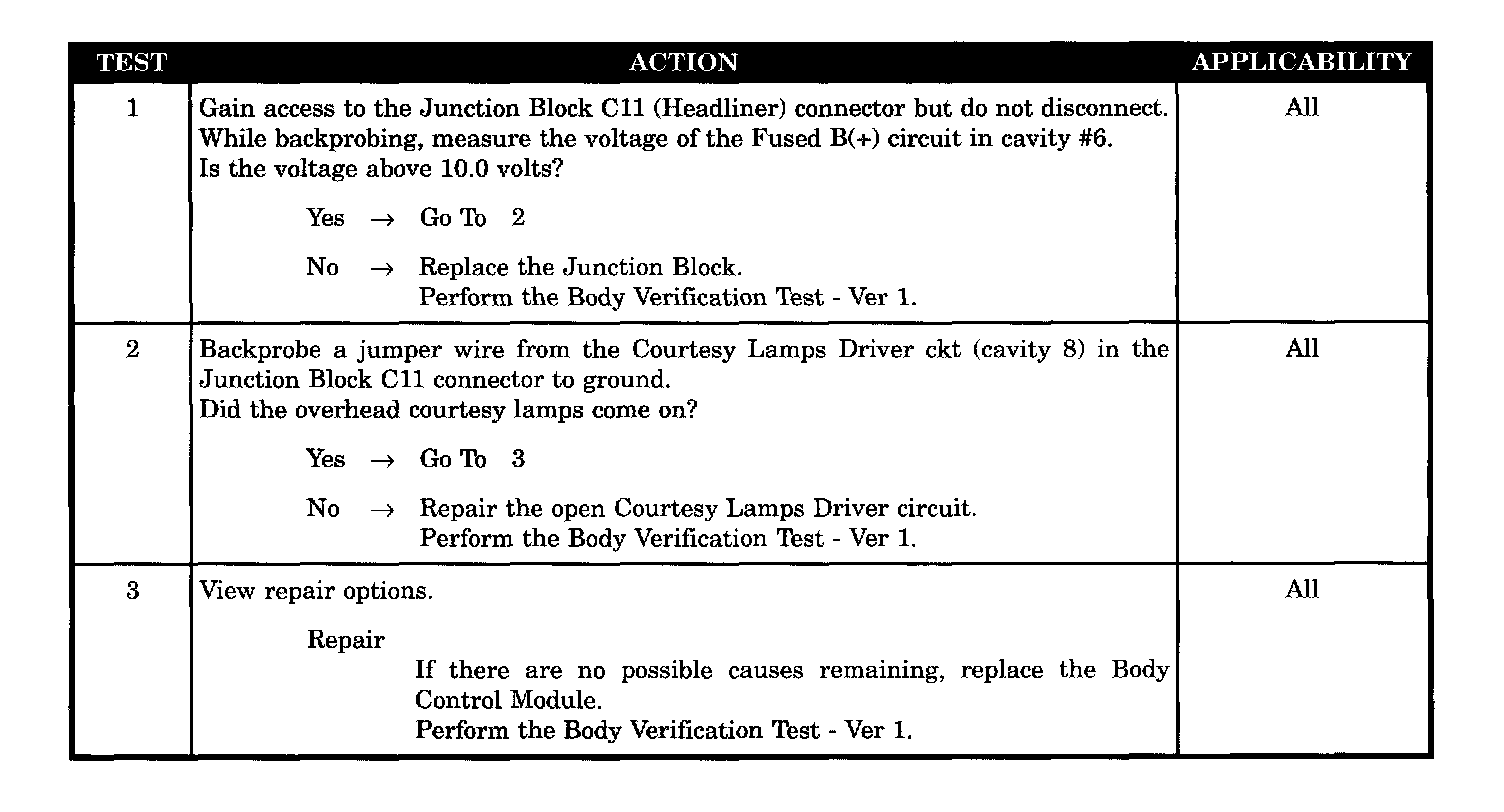

Test 1 - 3:




SYMPTOM
COURTESY LAMPS INOPERATIVE - ALL LAMPS

POSSIBLE CAUSES
- Junction block open
- Overhead courtesy lamps driver CKT open
- Body control module
