Traction OFF Indicator Not Operating Properly

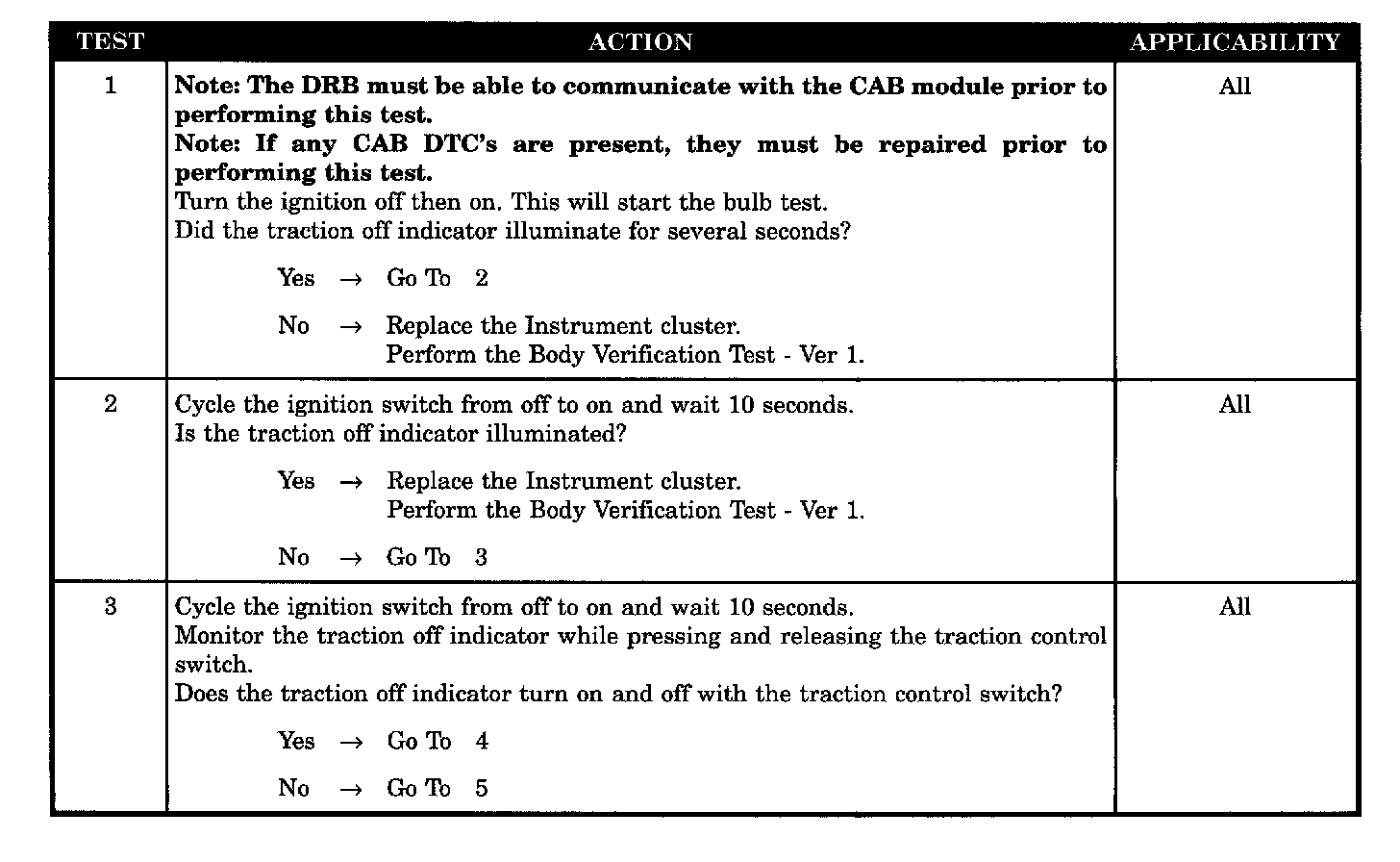

Test 1 - 3:

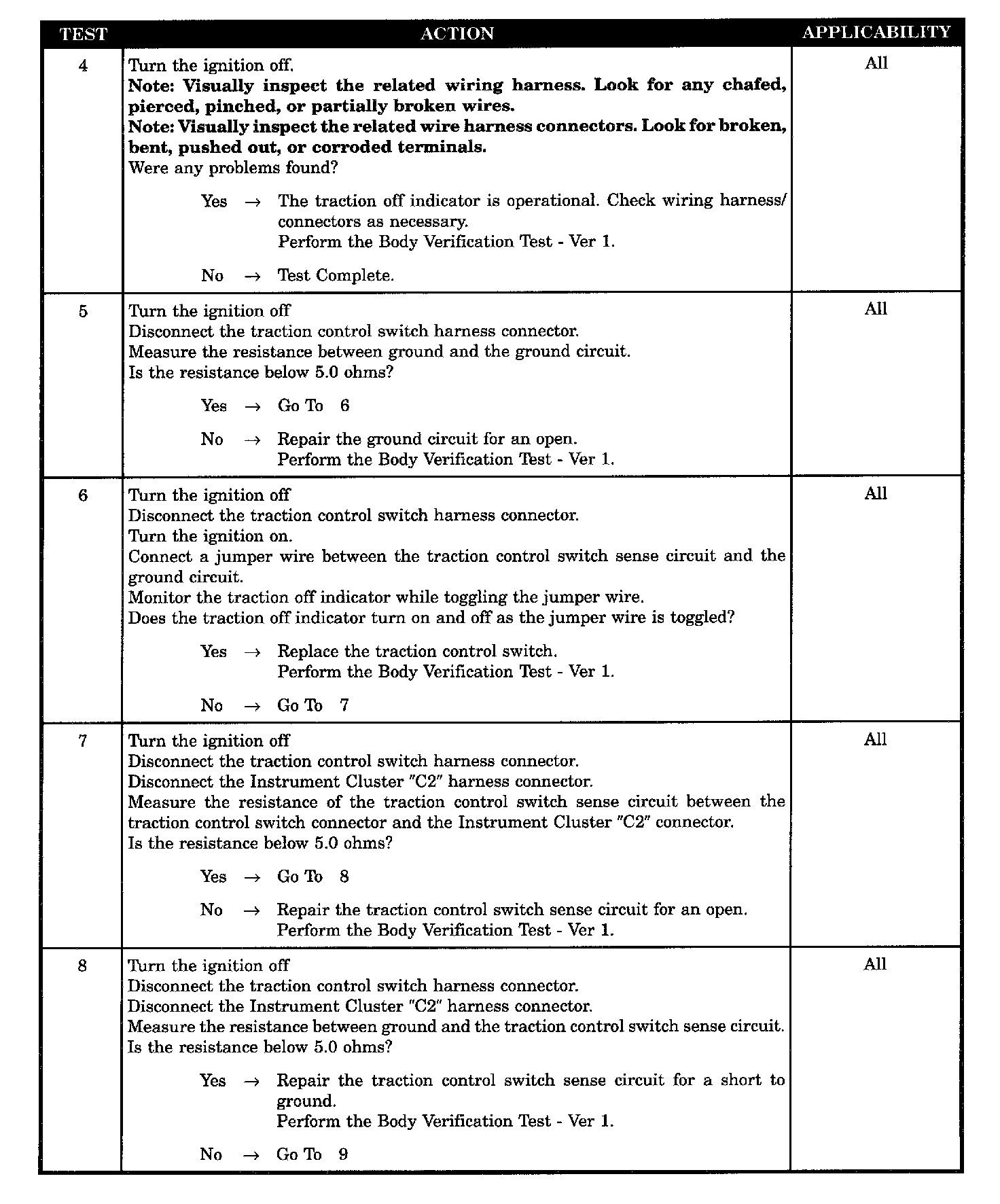

Test 4 - 8:

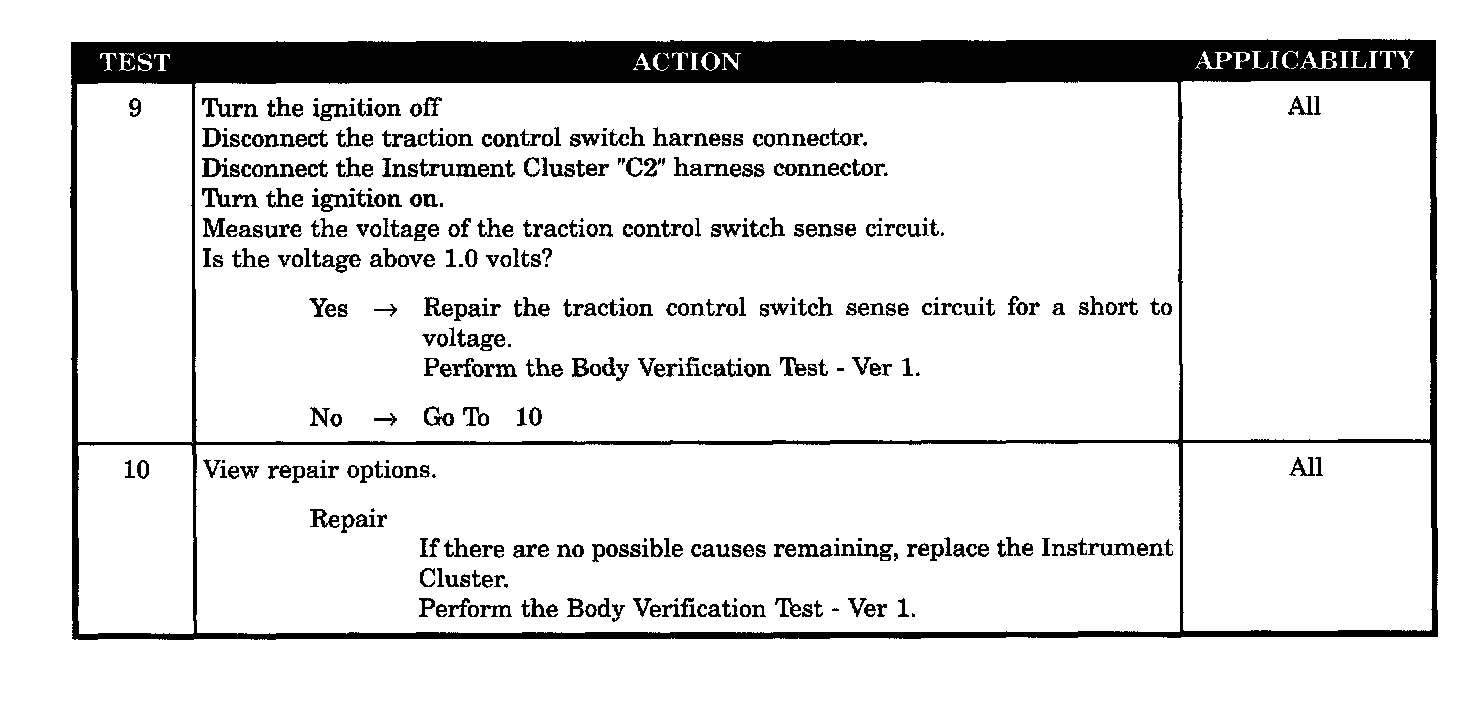

Test 9 - 10:

SYMPTOM
TRACTION OFF INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Instrument cluster (traction control switch sense circuit)
- Observe the traction OFF indicator
- Open ground circuit
- Open traction control switch sense circuit
- Perform instrument cluster self test
- Traction control switch
- Traction control switch sense circuit shorted to ground
- Traction control switch sense circuit shorted to voltage
- Wiring harness intermittent defect
