No Messages From EATX
No Messages From EATX

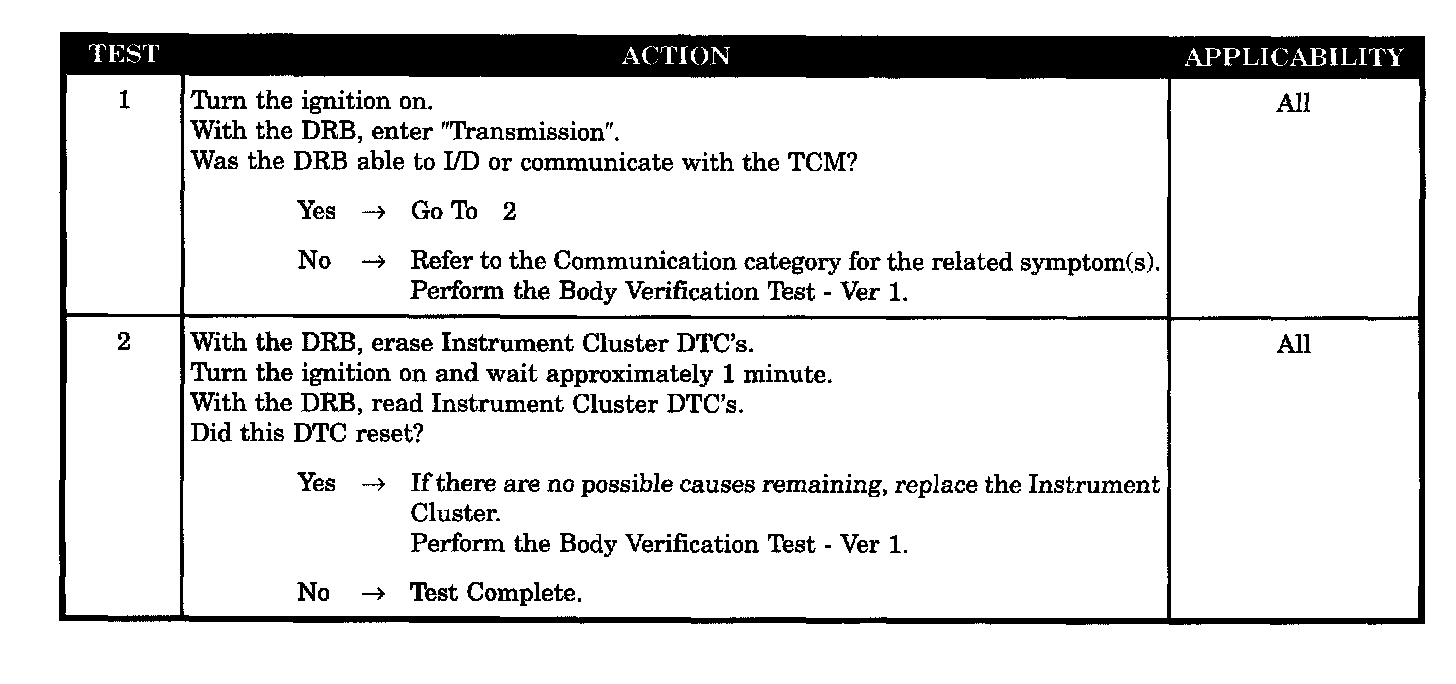

Test 1 - 2:
SYMPTOM
NO MESSAGES FROM EATX
WHEN MONITORED
With the ignition ON.
SET CONDITION
No EATX messages received for
10 seconds
.
POSSIBLE CAUSES
-
Attempt to communicate with the TCM
-
Instrument cluster
