No Messages From ABS

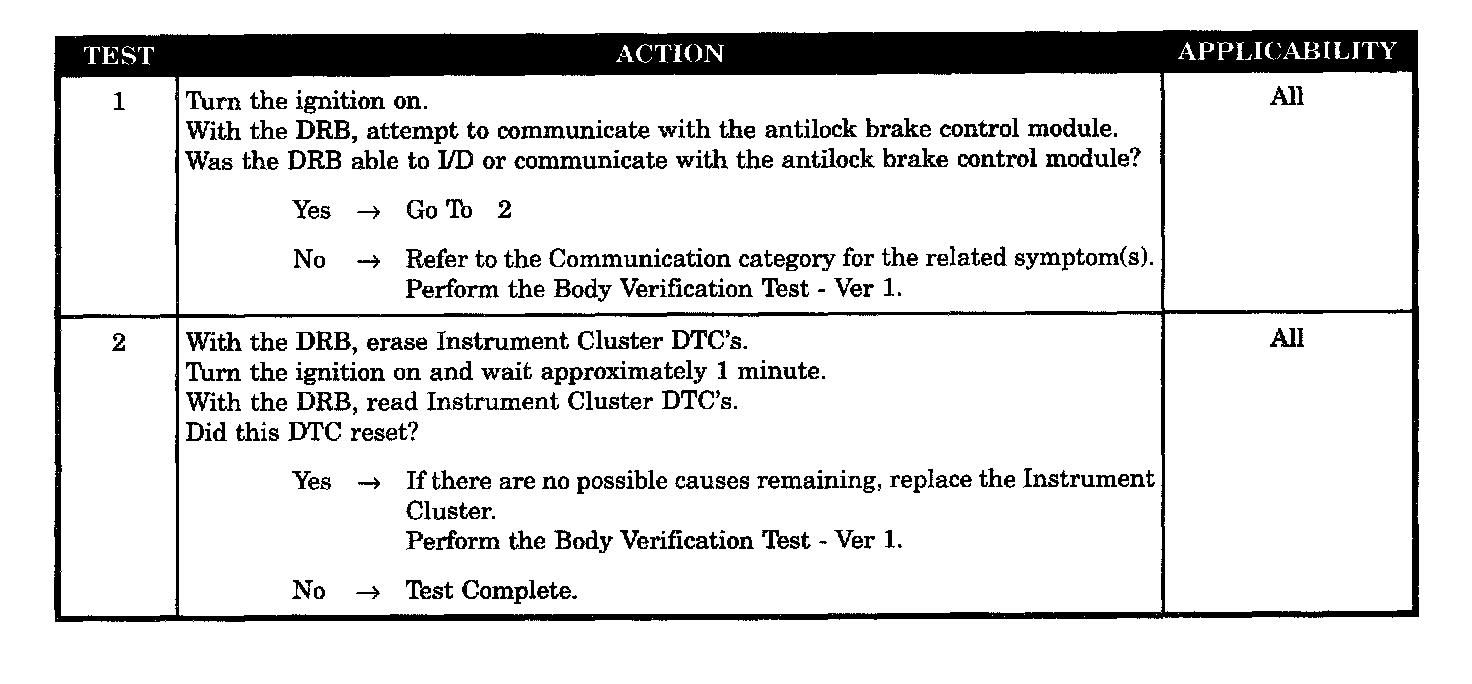

Test 1 - 2:




SYMPTOM
NO MESSAGES FROM ABS

WHEN MONITORED
With the ignition ON.

SET CONDITION
No ABS messages received for 10 seconds.

POSSIBLE CAUSES
- Attempt to communicate with the antilock brake control module
- Instrument cluster
