Cruise ON Indicator Not Operating Properly

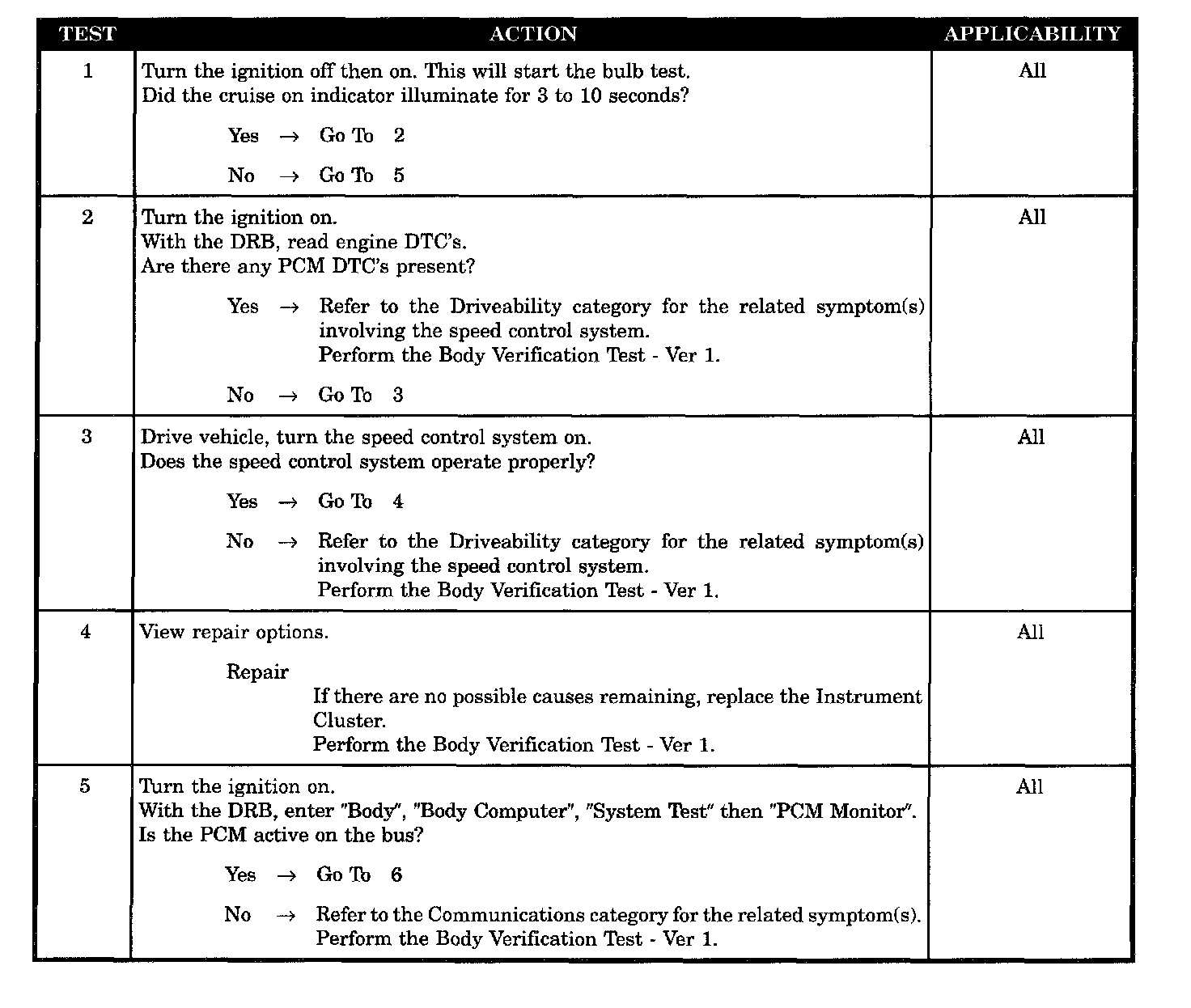

Test 1 - 5:

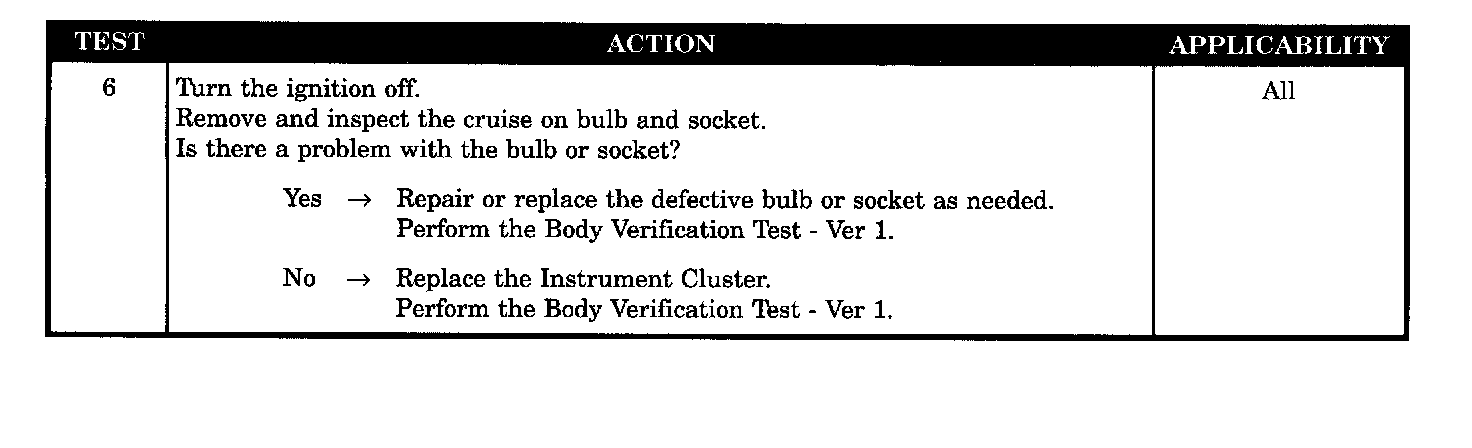

Test 6:




SYMPTOM
CRUISE ON INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Instrument cluster
- Attempt to communicate with the PCM
- Check the operation of the speed control system
- Defective bulb or socket
- Engine trouble codes
- Instrument cluster
