Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Instrument Cluster >> Charging Indicator Not Operating Properly

Charging Indicator Not Operating Properly

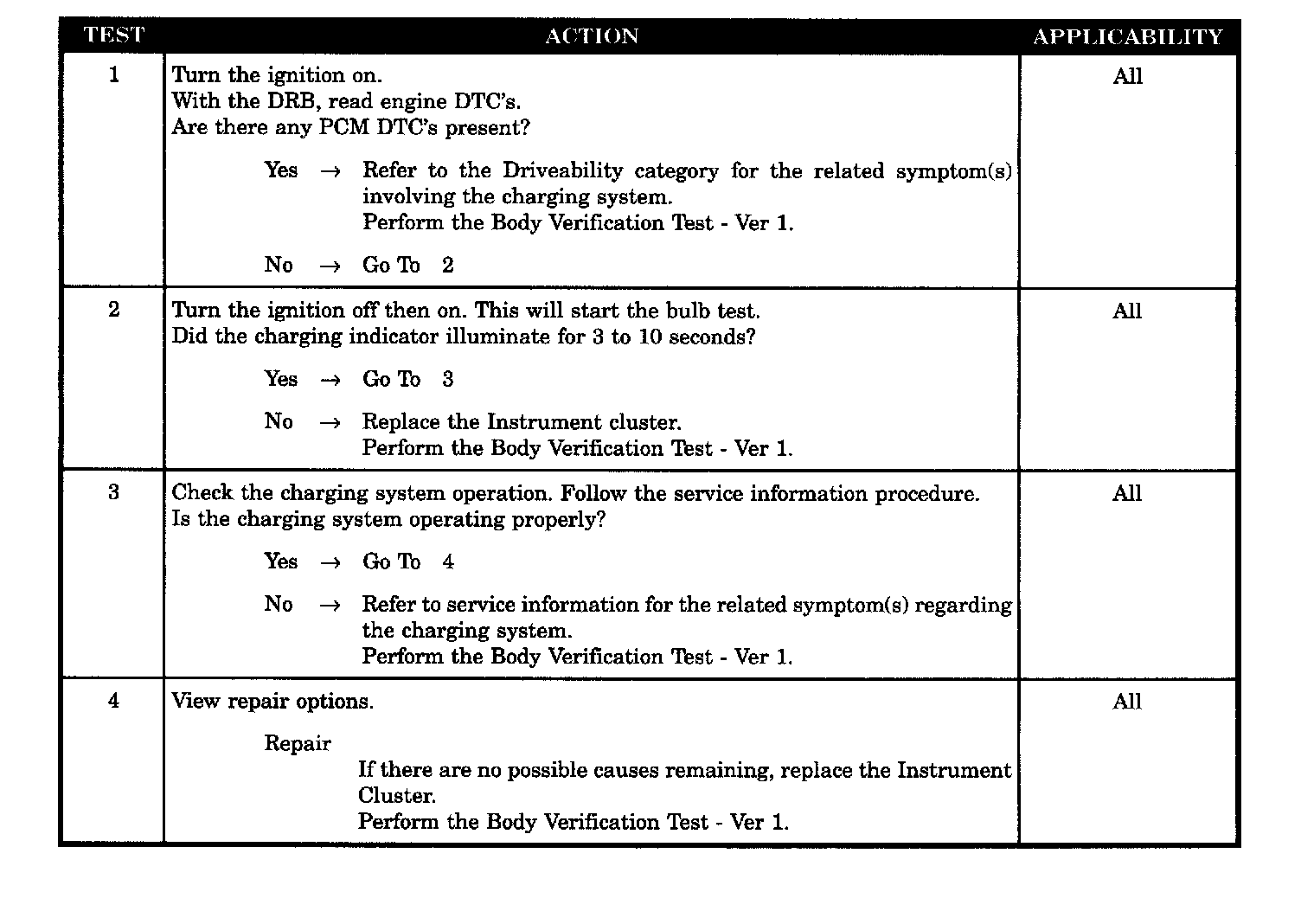

Test 1 - 4:




SYMPTOM
CHARGING INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Check the charging system operation
- Engine trouble codes
- Instrument cluster
- Perform instrument cluster self test
