Manual A/C Control Head Illumination
Manual A/C Control Head Illumination

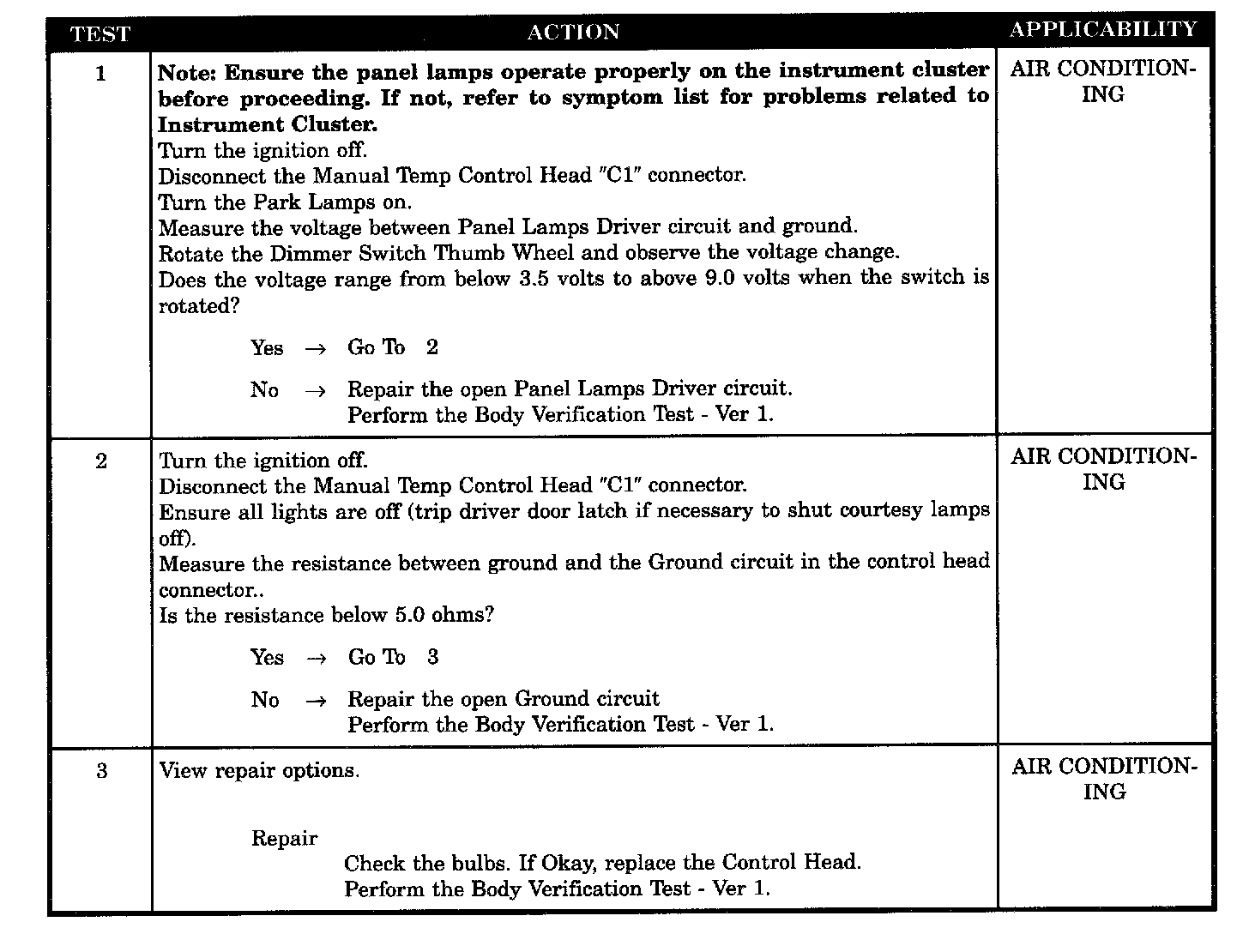

Test 1 - 3:
SYMPTOM
MANUAL A/C CONTROL HEAD ILLUMINATION
POSSIBLE CAUSES
-
Ground CKT open
-
Panel lamps driver CKT open
-
Control head - lamps inoperative
