Manual A/C Control Head Button Switch Inoperative

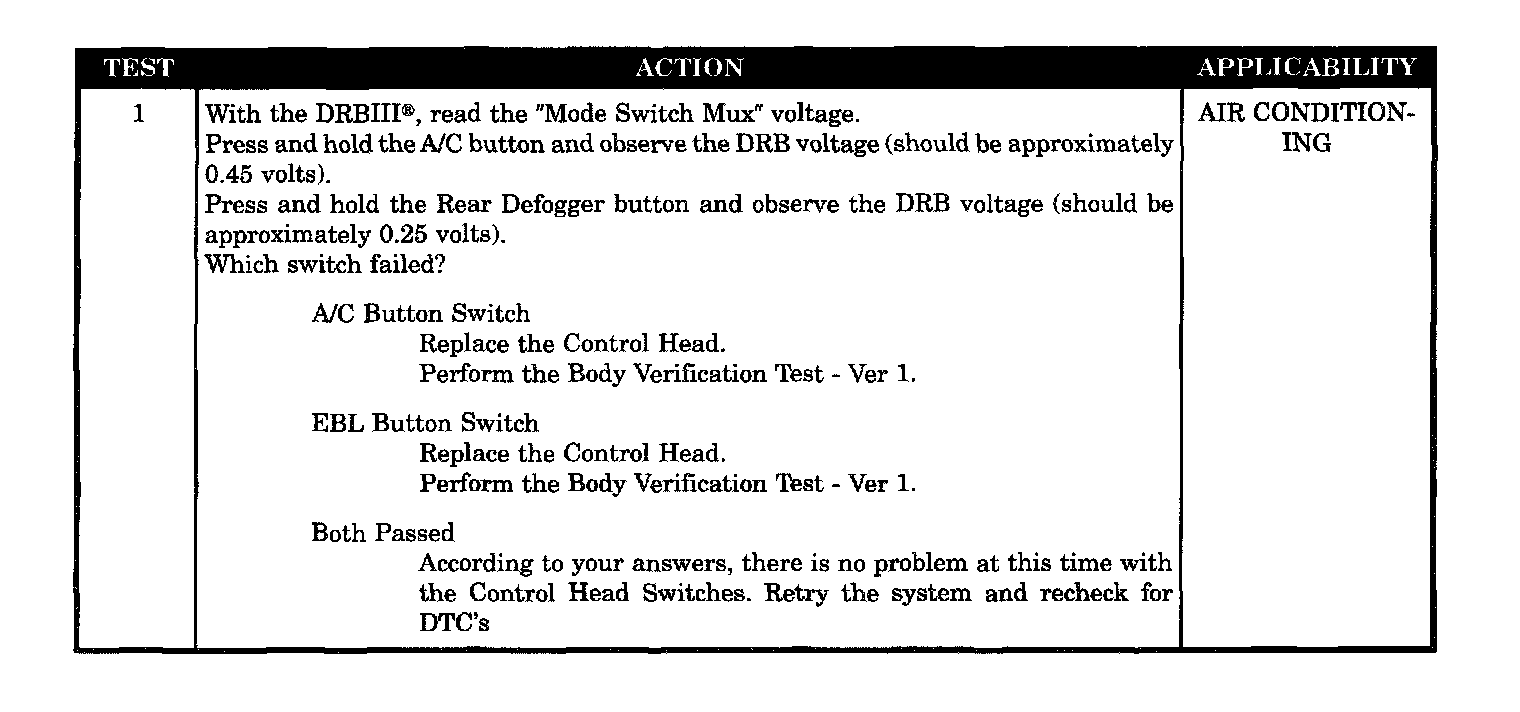

Test 1:




SYMPTOM
MANUAL A/C - CONTROL HEAD BUTTON SWITCH INOPERATIVE

POSSIBLE CAUSES
- Control head switches okay
- Control head - open switch
