Manual A/C Clutch Inoperative - No LED
Manual A/C Clutch Inoperative - No LED

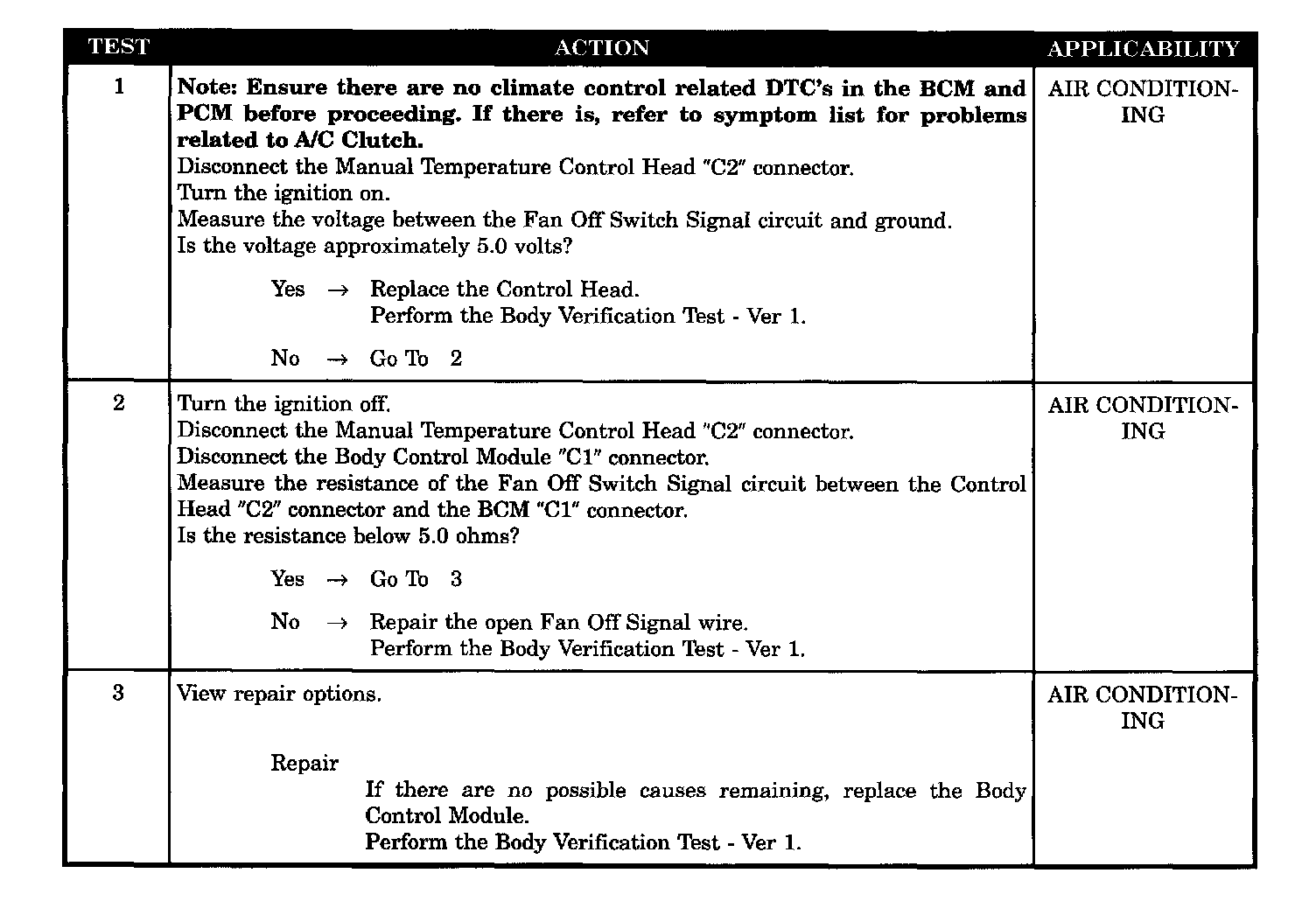

Test 1 - 3:
SYMPTOM
MANUAL A/C - CLUTCH INOPERATIVE - NO LED
POSSIBLE CAUSES
-
Fan OFF signal wire open
-
Control head - A/C switch no led
-
Body control module - fan off switch signal open
