Manual A/C Blower Motor Speeds Incorrect
Manual A/C Blower Motor Speeds Incorrect

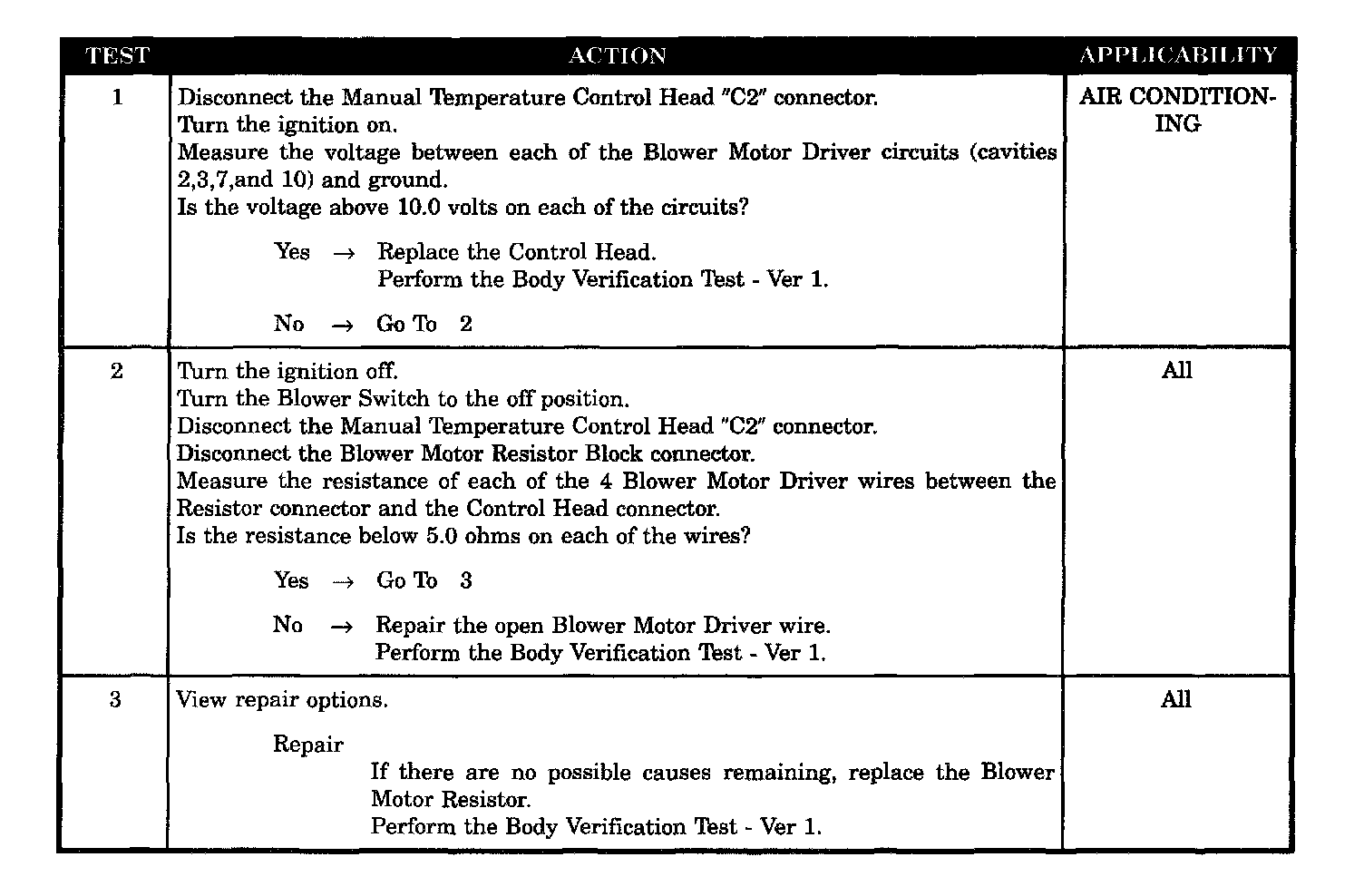

Test 1 - 3:
SYMPTOM
MANUAL A/C - BLOWER MOTOR SPEEDS INCORRECT
POSSIBLE CAUSES
-
Blower motor driver wire open
-
Blower motor resistor - open speed
-
Control head - blower speeds incorrect
