Common Output Shorted to Ground

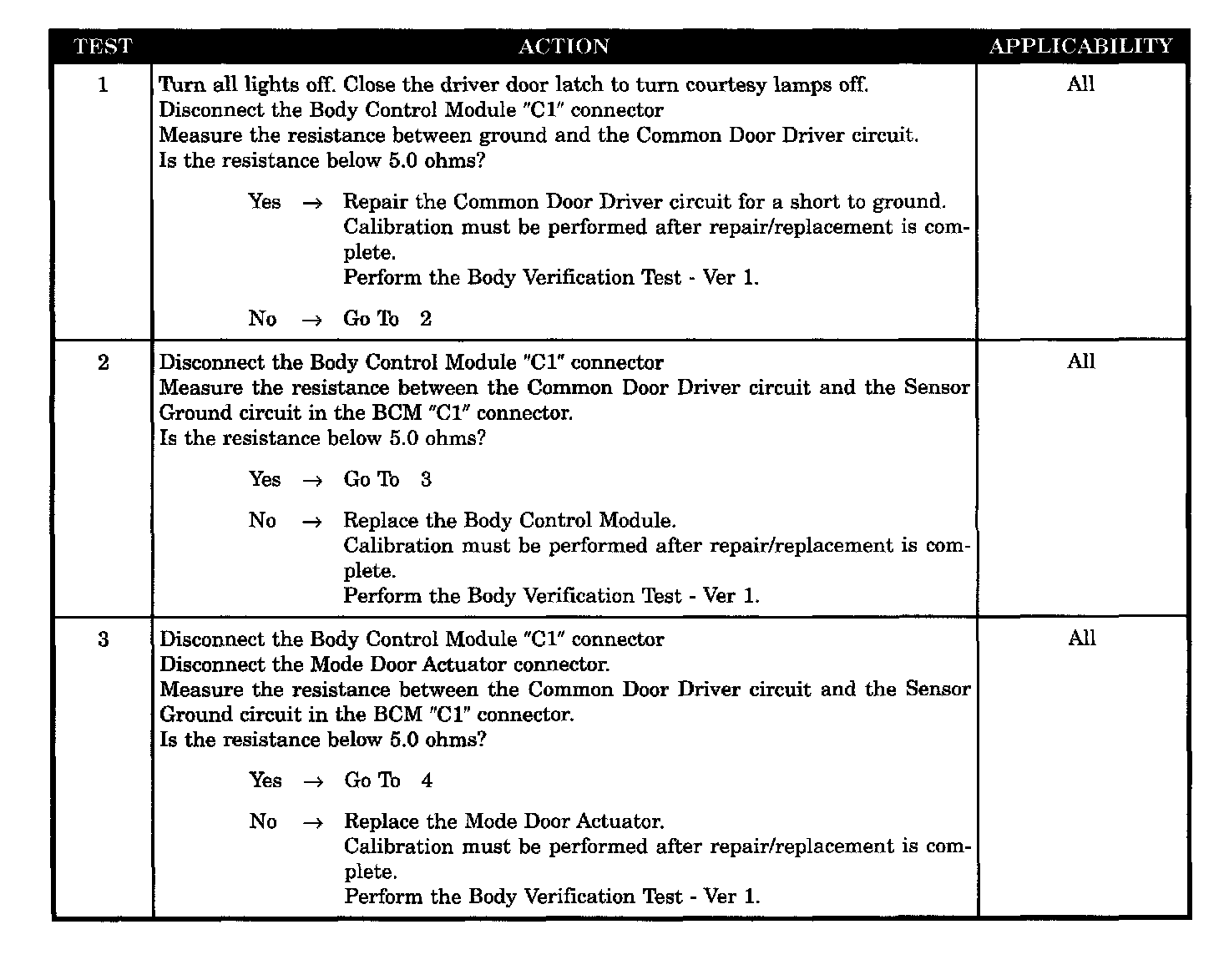

Test 1 - 3:

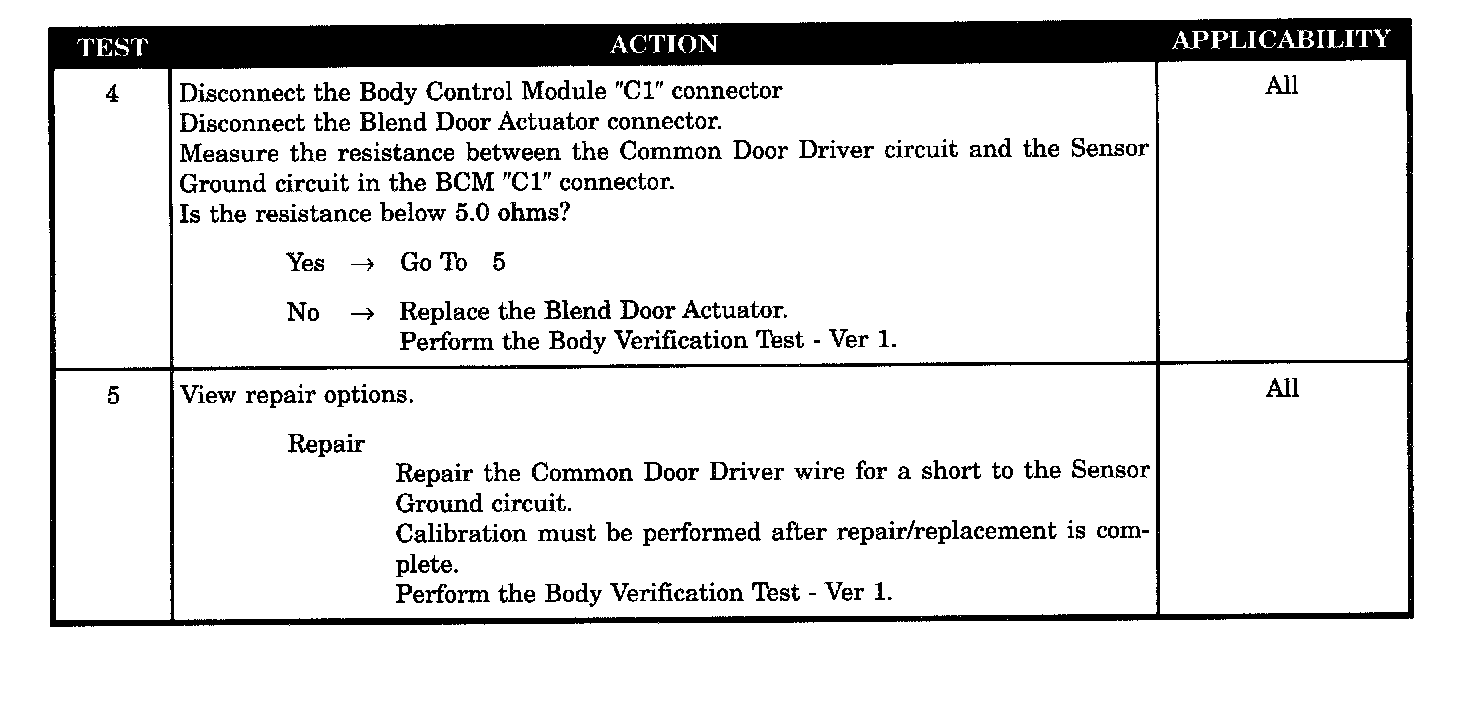

Test 4 - 5:

SYMPTOM
COMMON OUTPUT SHORTED TO GROUND

POSSIBLE CAUSES
- Common door driver circuit short to ground
- Common door driver CKT short to sensor ground
- Common door driver wire short to sensor ground
- Mode door actuator short to common driver
- Blend door actuator short to common driver
