Blend Door Output Shorted to Ground

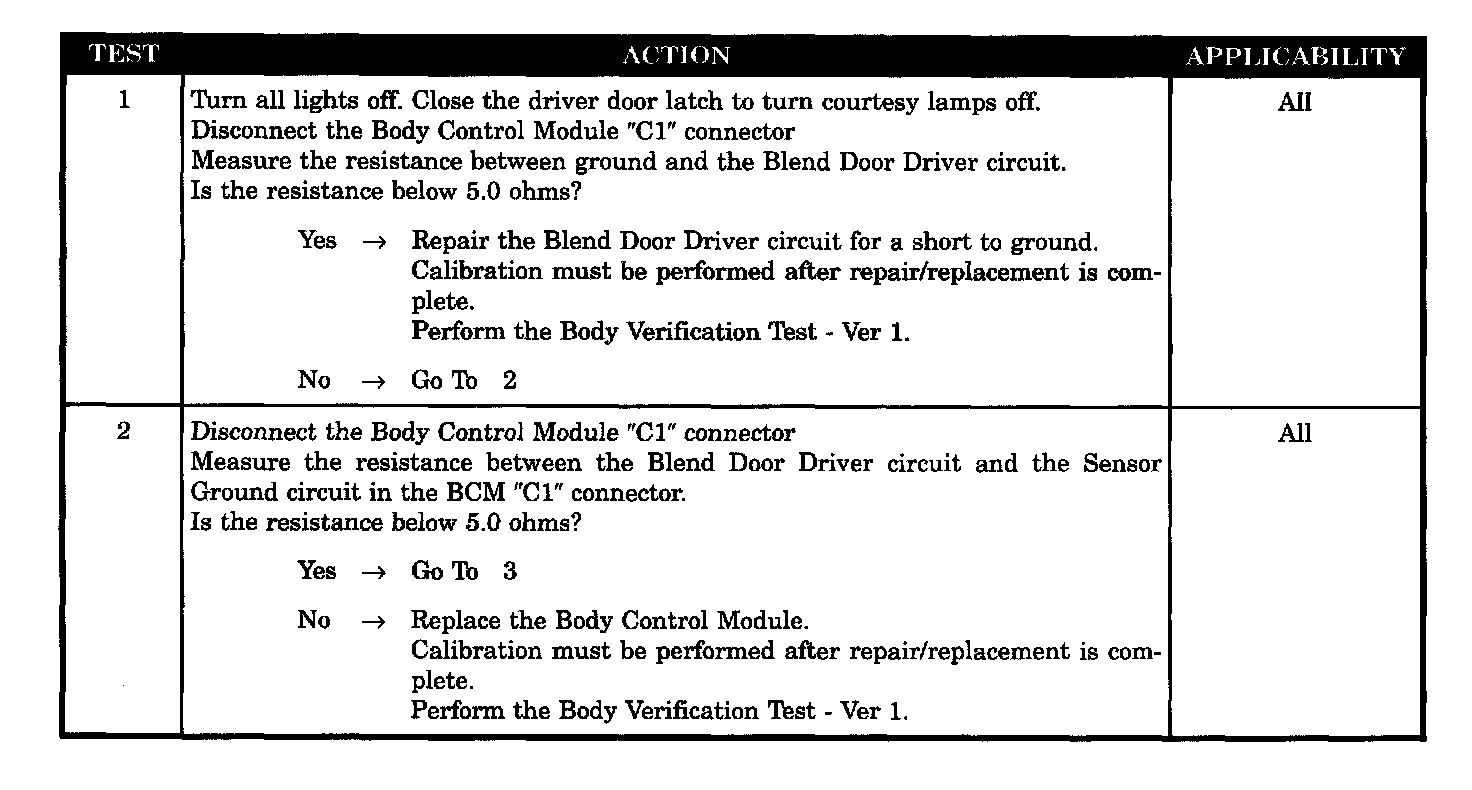

Test 1 - 2:

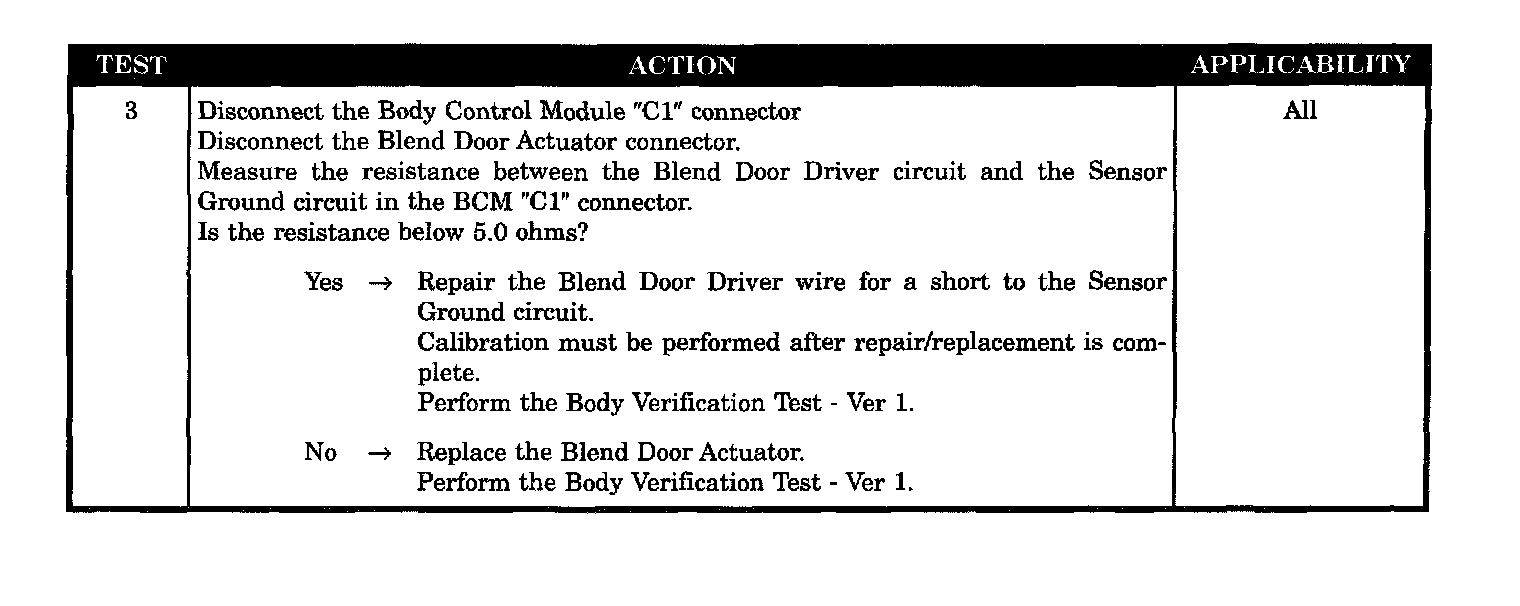

Test 3:

SYMPTOM
BLEND DOOR OUTPUT SHORTED TO GROUND

WHEN MONITORED
Whenever the BCM attempts to move one of the HVAC actuators.

SET CONDITION
When the BCM detects one or more of the following outputs shorted to ground: mode driver, blend driver, recirc driver or common driver.

POSSIBLE CAUSES
- Blend door actuator short to sensor ground
- Blend door driver circuit short to ground
- Blend door driver CKT short to sensor ground
- Blend door driver wire short to sensor ground
