Blend Air Door Inoperative

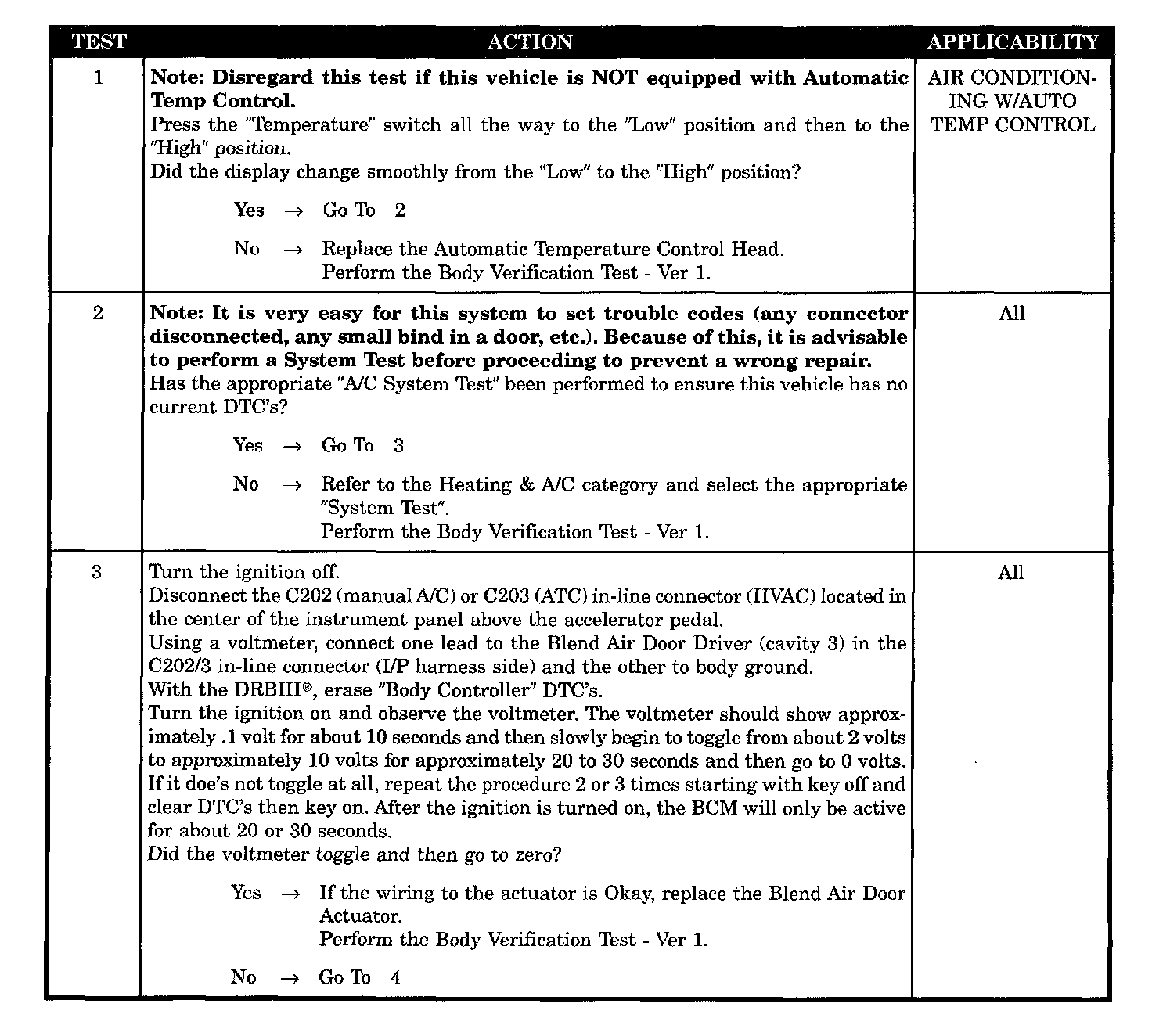

Test 1 - 3:

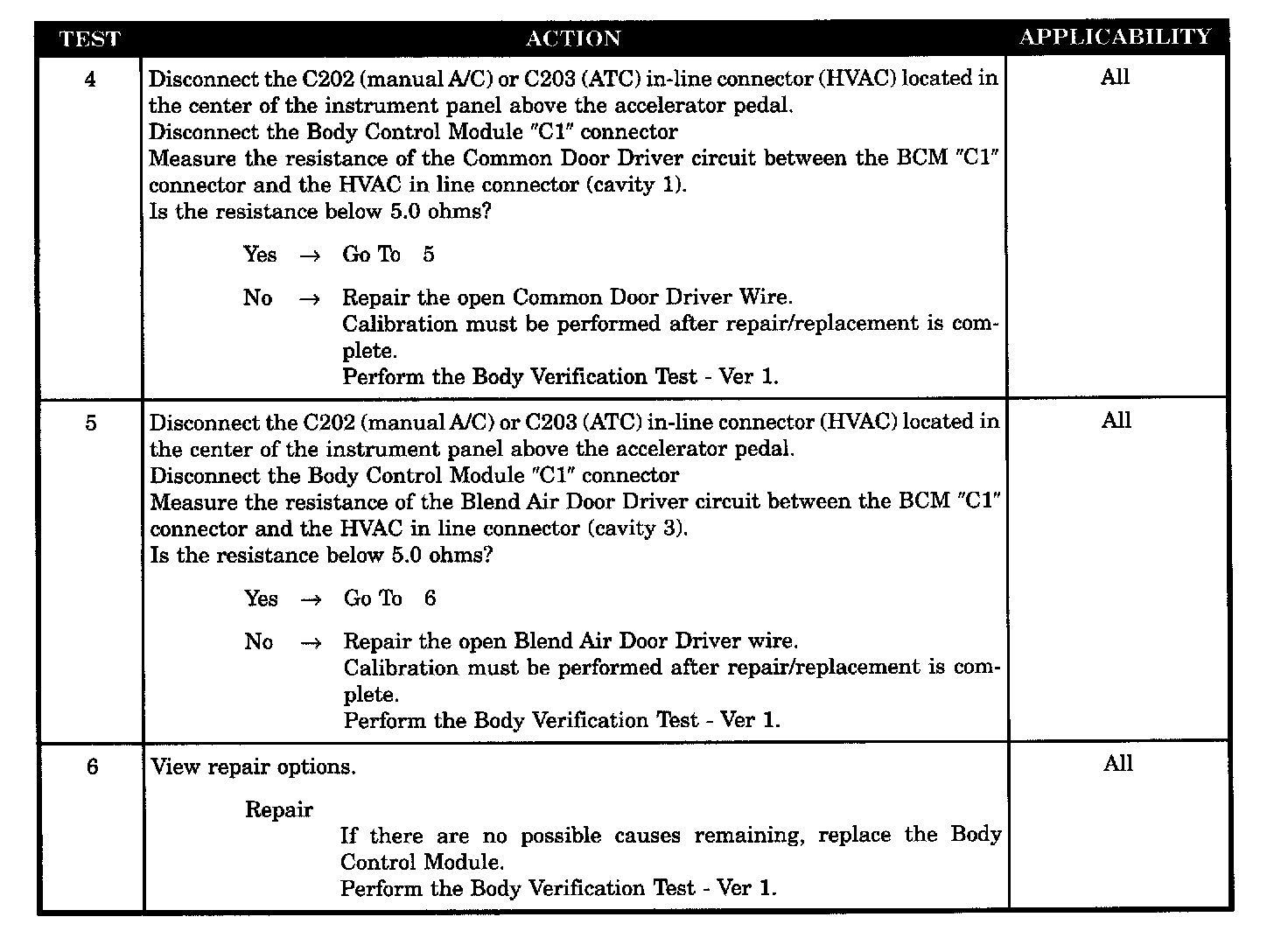

Test 4 - 6:

SYMPTOM
BLEND AIR DOOR INOPERATIVE

POSSIBLE CAUSES
- Common door driver wire open
- Blend air door driver wire open
- Blend air door actuator check
- Blend air door inoperable pre test
- Body control module
- ATC control head blend door buttons open
