ATC Blower Motor Inoperative

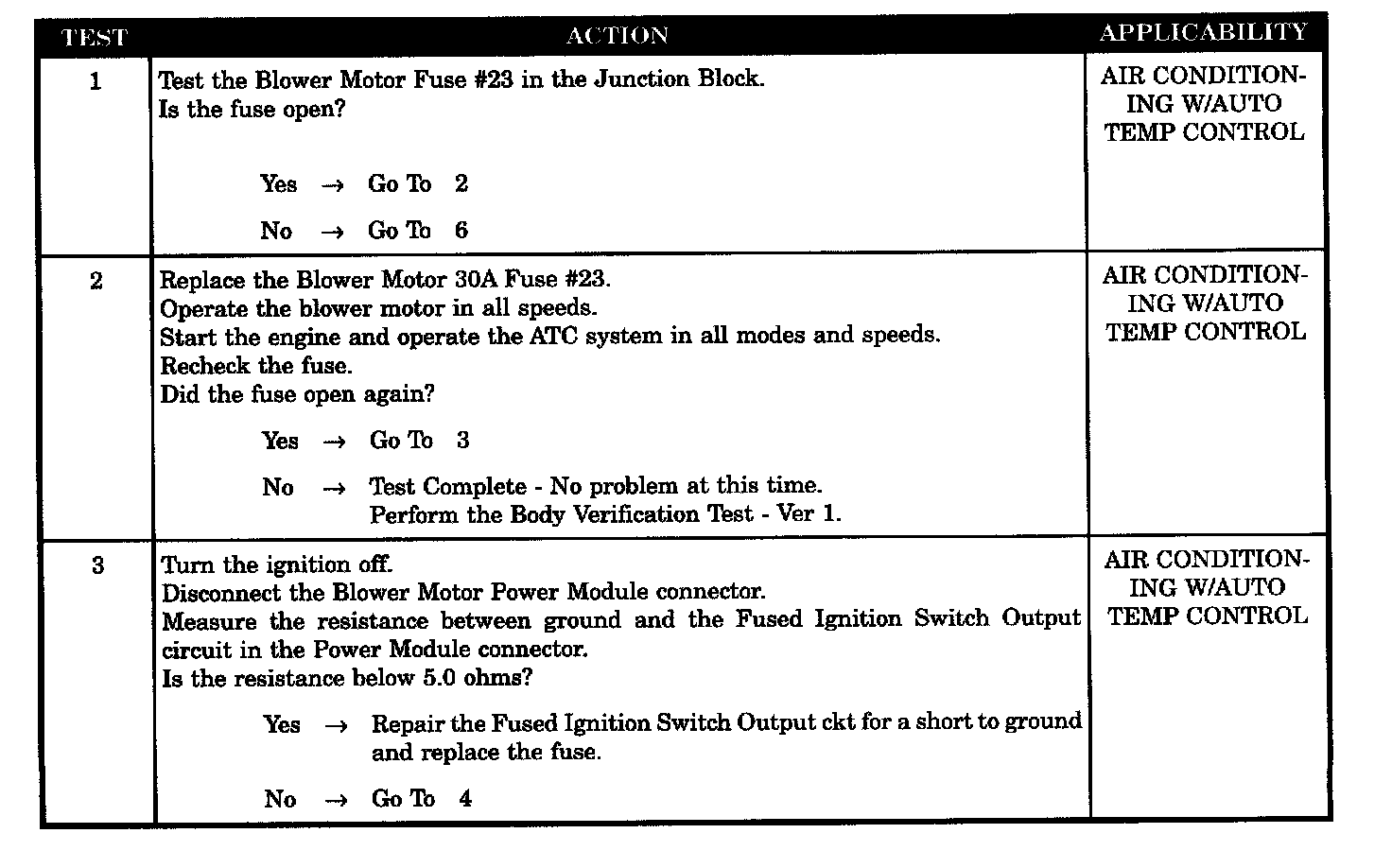

Test 1 - 3:

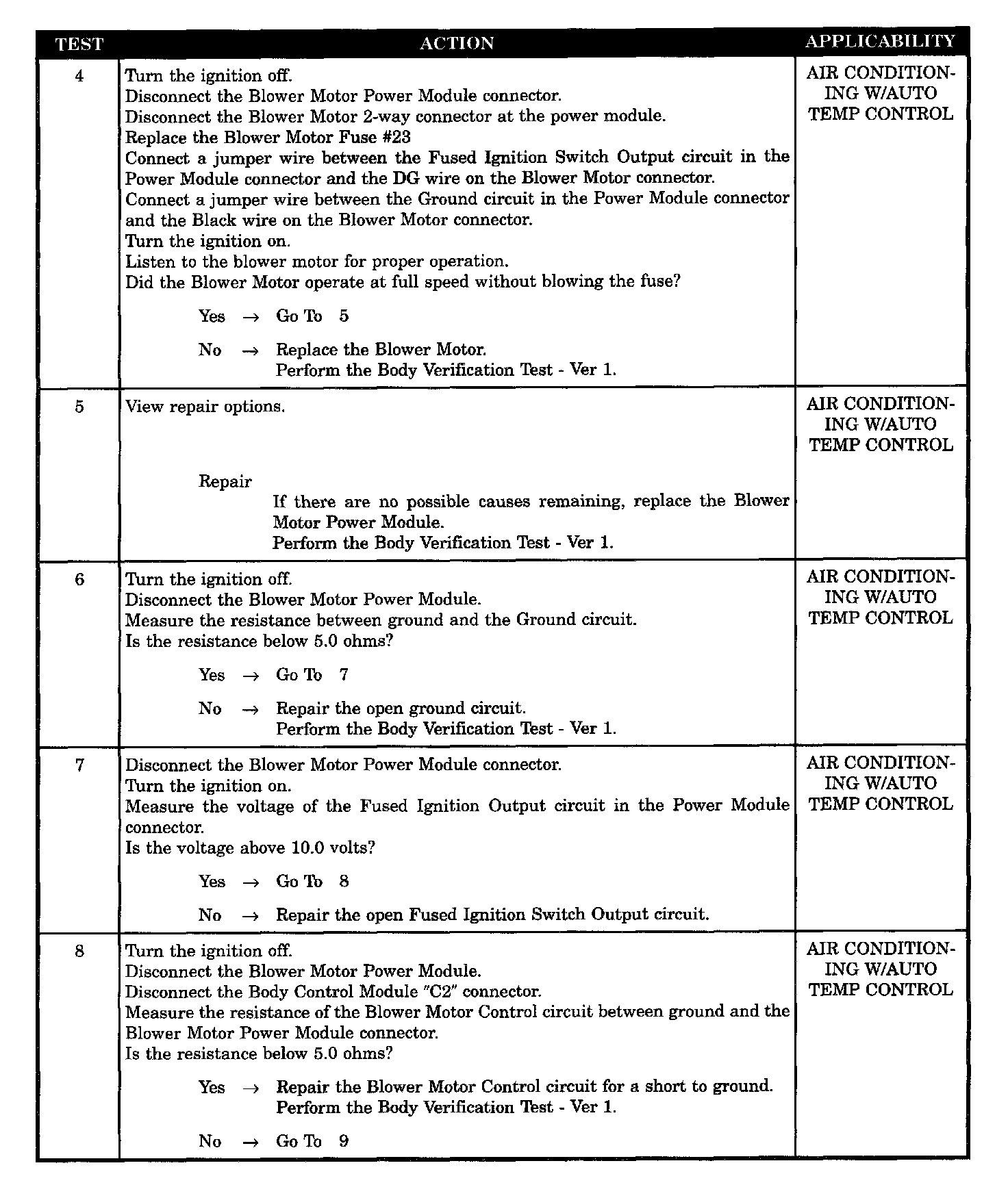

Test 4 - 8:

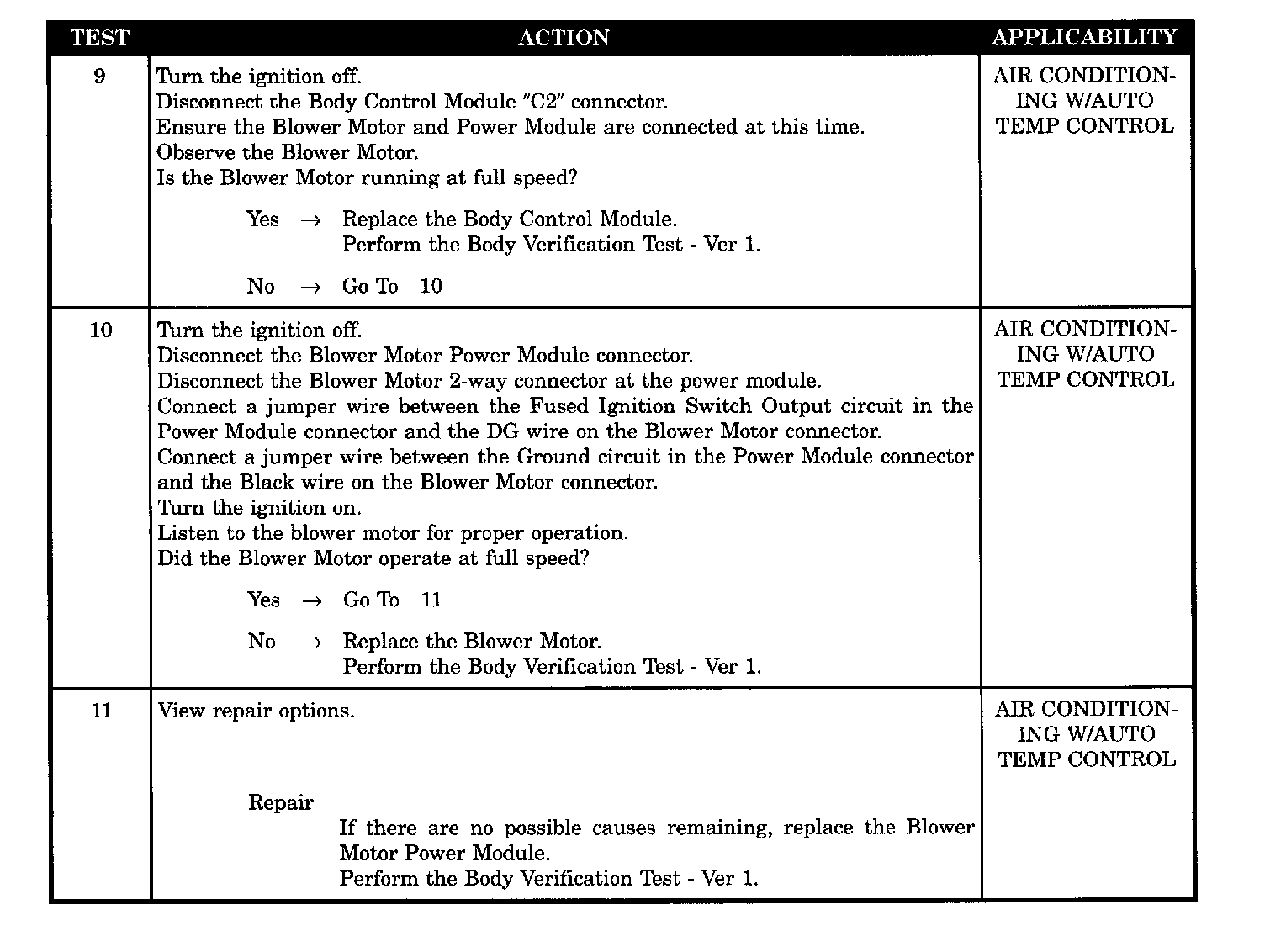

Test 9 - 11:

SYMPTOM
ATC BLOWER MOTOR INOPERATIVE

POSSIBLE CAUSES
- Ground circuit open
- Fused ignition switch output circuit open
- Fused ignition switch output short to ground
- Blower fuse defective
- Blower motor operation
- Blower motor short to ground
- Blower motor control circuit short to ground
- Blower motor power module open
- Blower motor power module short to ground
- Body control module - blower control ground
