ATC A/C Clutch Inoperative

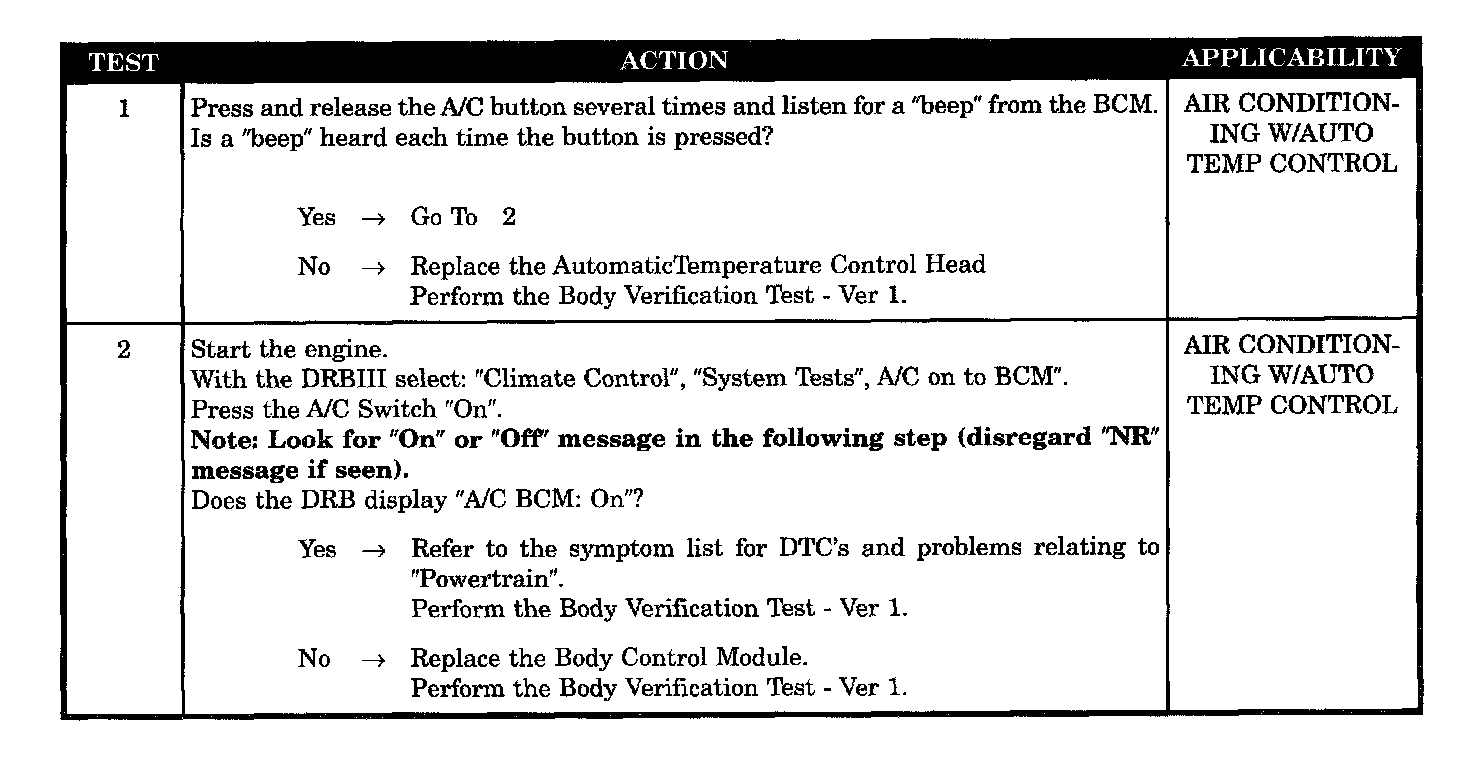

Test 1 - 2:




SYMPTOM
ATC A/C CLUTCH INOPERATIVE

POSSIBLE CAUSES
- BCM okay
- Body control module - A/C message
- Automatic TEMP control head-A/C button
