Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Exterior Lighting >> Park Lamps Will Not Turn Off

Park Lamps Will Not Turn Off

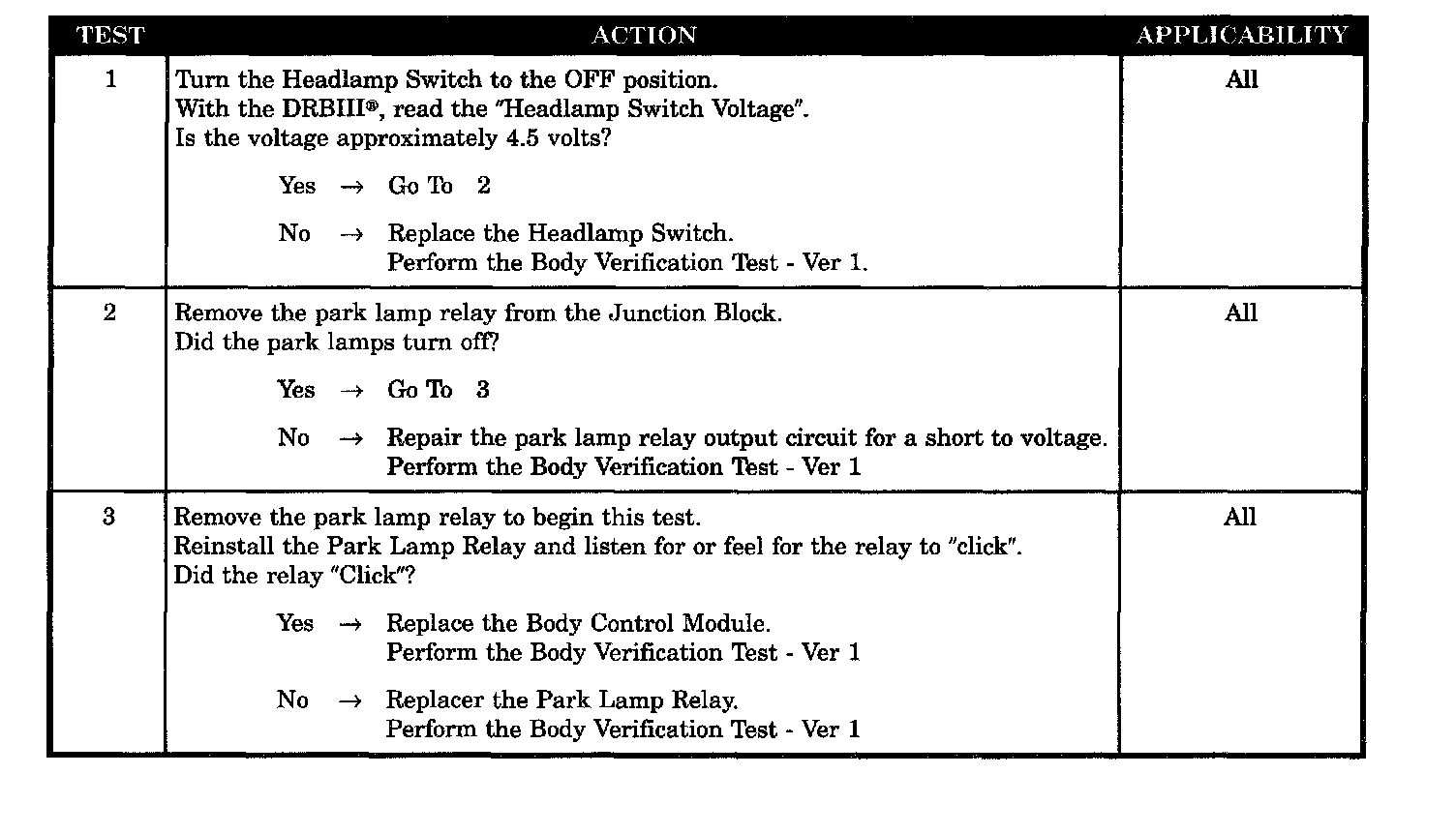

Test 1 - 3:




SYMPTOM
PARK LAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Body control module
- Park lamp output short voltage
- Park lamp relay
- Headlamp switch
