Low Beam Headlamps Will Not Turn On

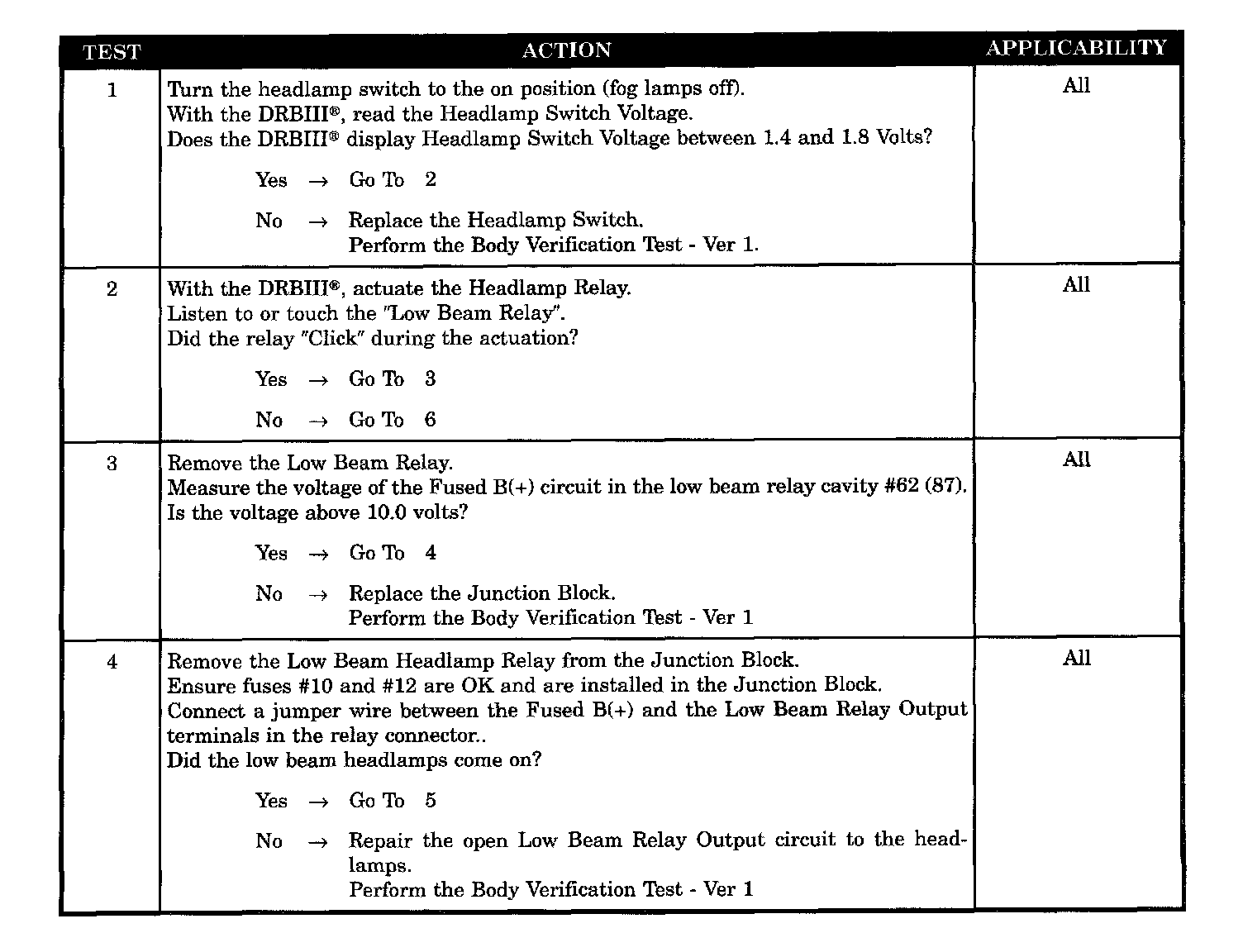

Test 1 - 4:

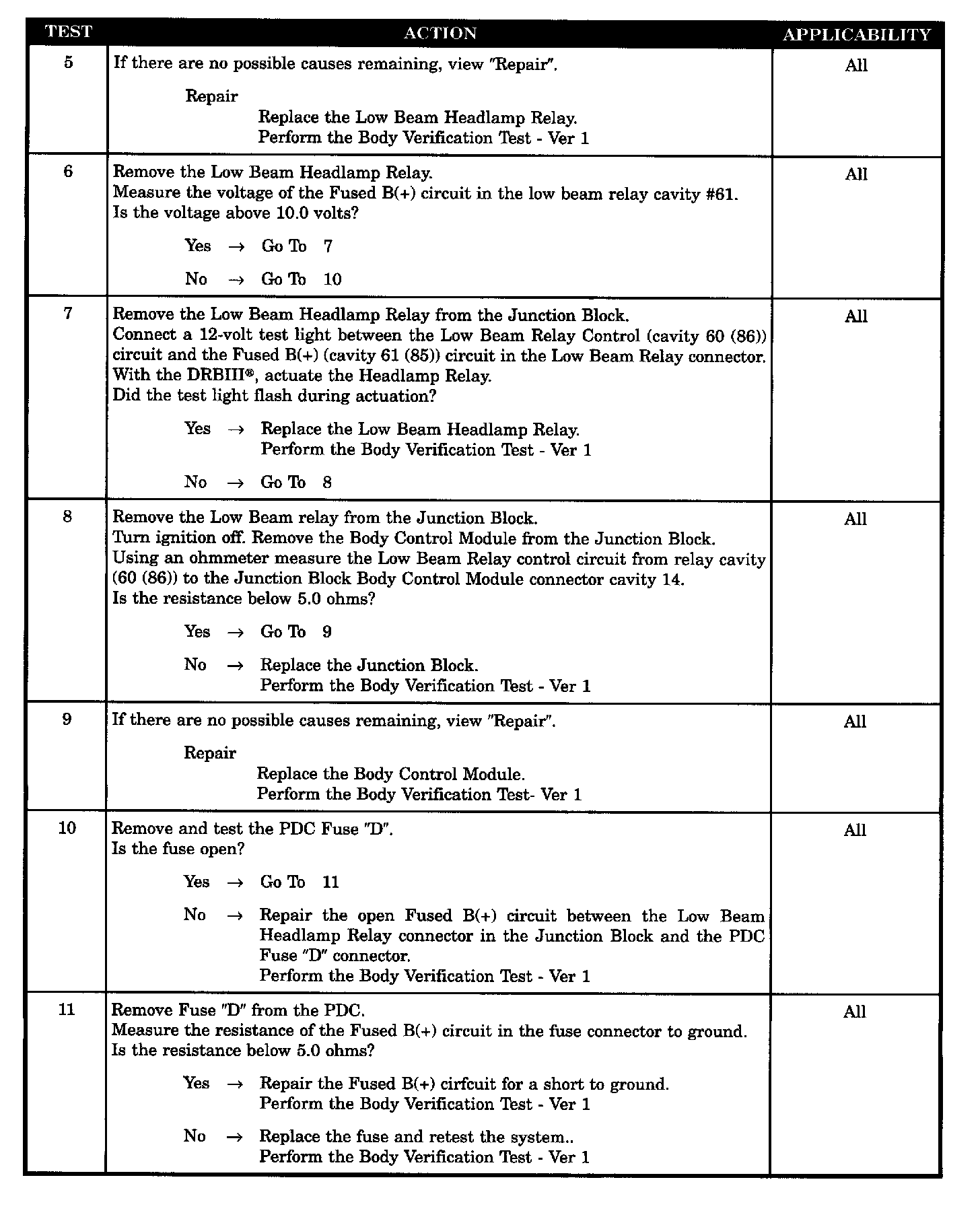

Test 5 - 11:

SYMPTOM
LOW BEAM HEADLAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Defective fuse
- Open fuse B(+) to junction block
- Low Beam Relay output CKT open
- Low Beam Relay control circuit open
- Fused B(+) circuit short to ground
- Open fused B(+)
- Low Beam Relay
- Low Beam Headlamp Relay
- Headlamp Switch - Low Beams inoperable
- Body control module
