High Beam Headlamps Will Not Turn Off

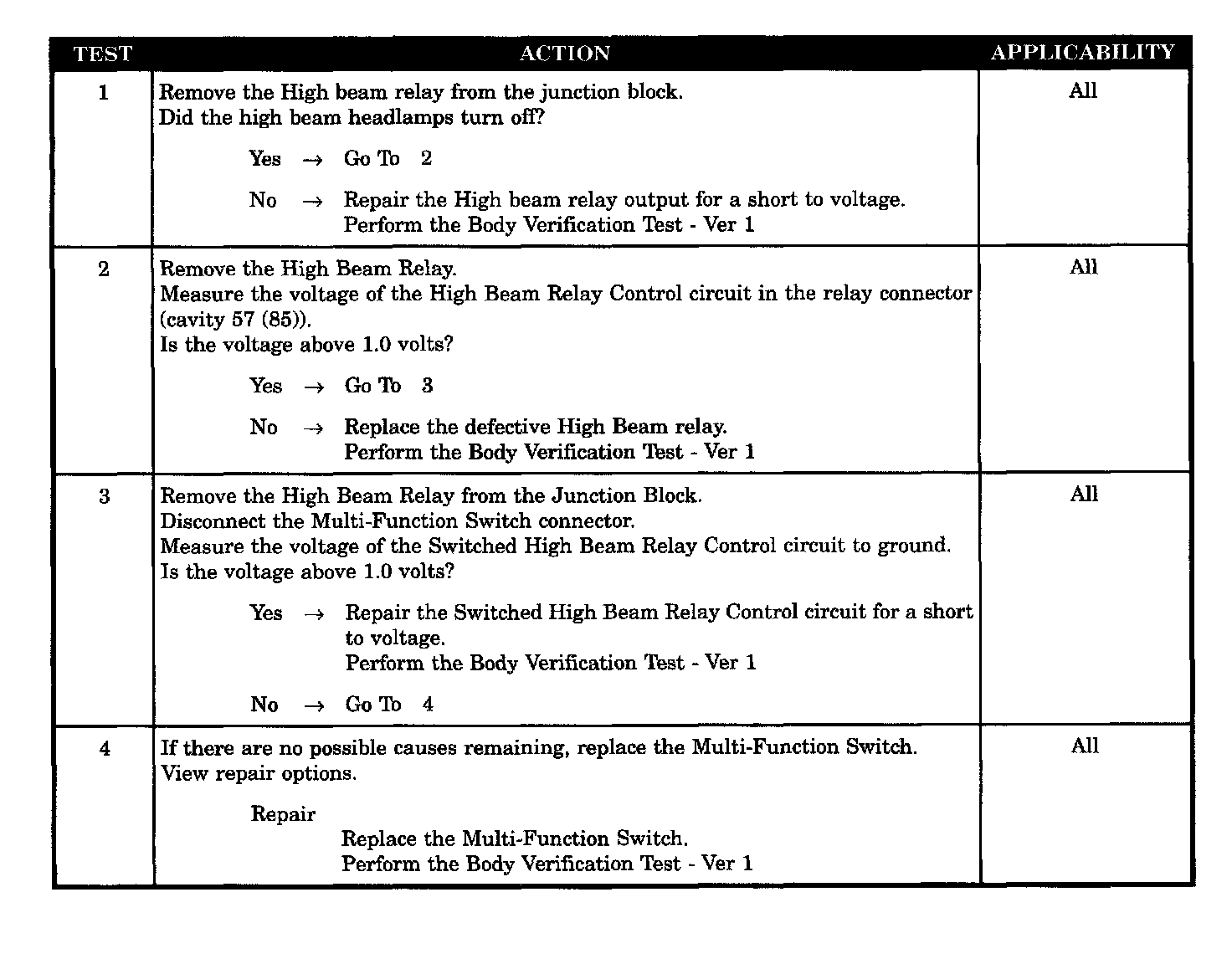

Test 1 - 4:




SYMPTOM
HIGH BEAM HEADLAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- High beam relay output short to voltage
- Switched high beam relay control circuit short to voltage
- Multi-function switch
- High beam relay
