Home >> Chrysler >> 2000 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Exterior Lighting >> Headlamp Time Delay Inoperative

Headlamp Time Delay Inoperative

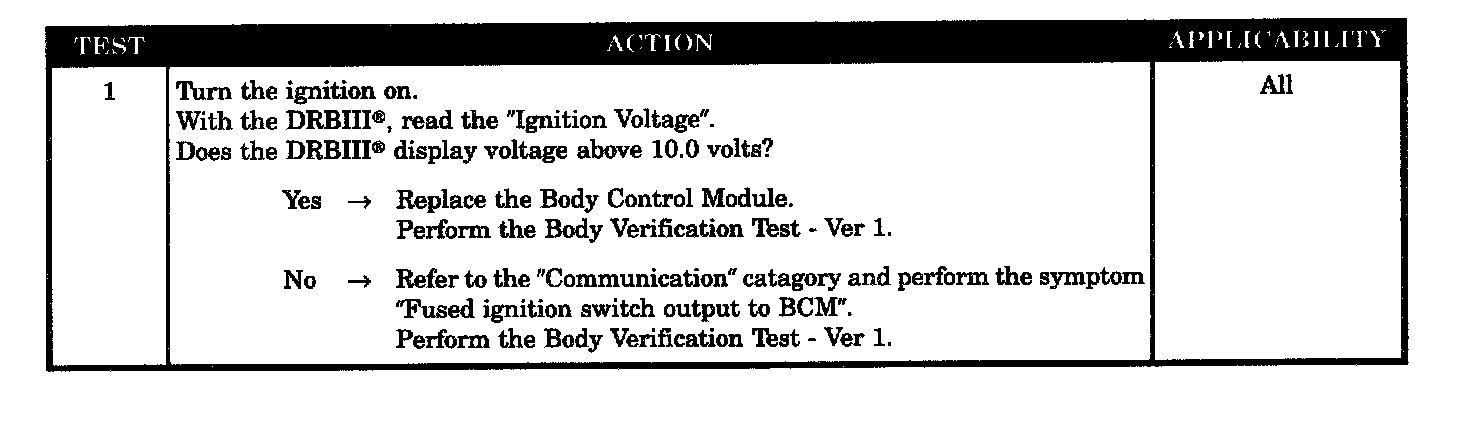

Test 1:




SYMPTOM
HEADLAMP TIME DELAY INOPERATIVE

POSSIBLE CAUSES
- Body control module
- Ignition voltage low
