Fog Lamps Will Not Turn On

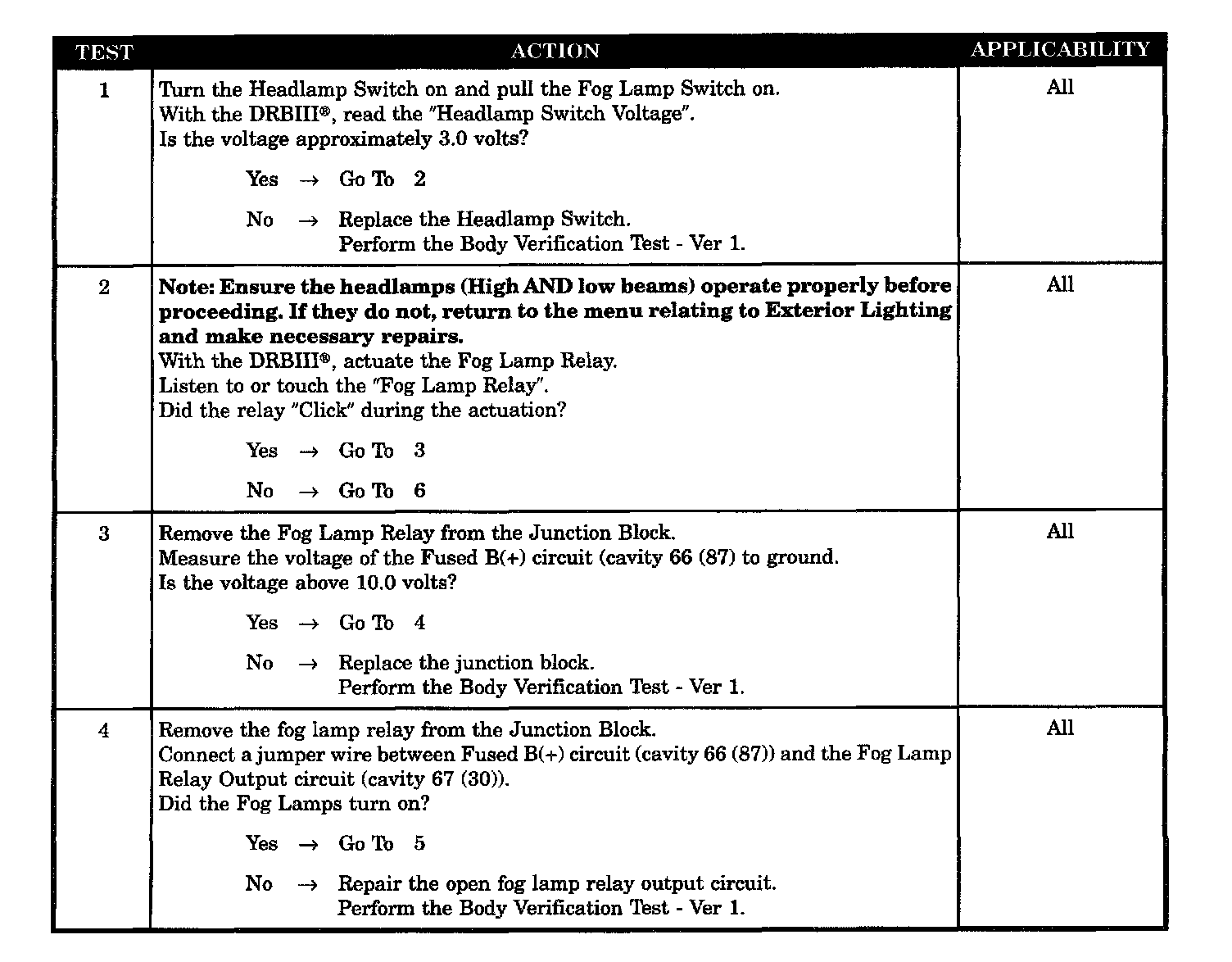

Test 1 - 4:

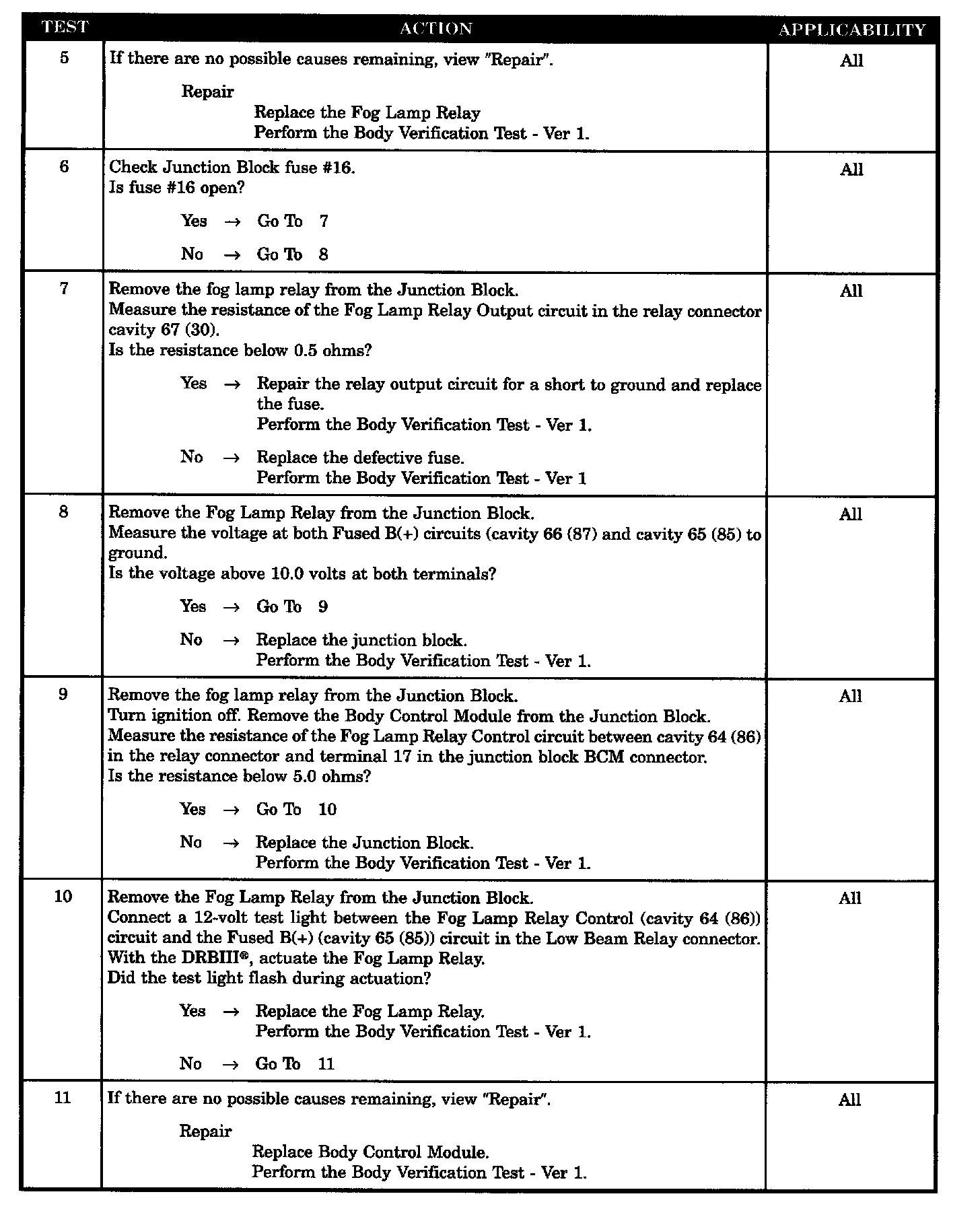

Test 5 - 11:

SYMPTOM
FOG LAMPS WILL NOT TURN ON

POSSIBLE CAUSES
- Fuse #16 defective
- Fog lamp relay output CKT open
- Fog lamp relay CTL CKT open
- Open fused B(+) to fog relay
- Open fused B(+) to fog relay
- Fog lamp relay output CKT short
- Fog lamp relay
- Fog lamp relay
- Body control module
- Headlamp switch
