Passenger Thermistor Out of Range High

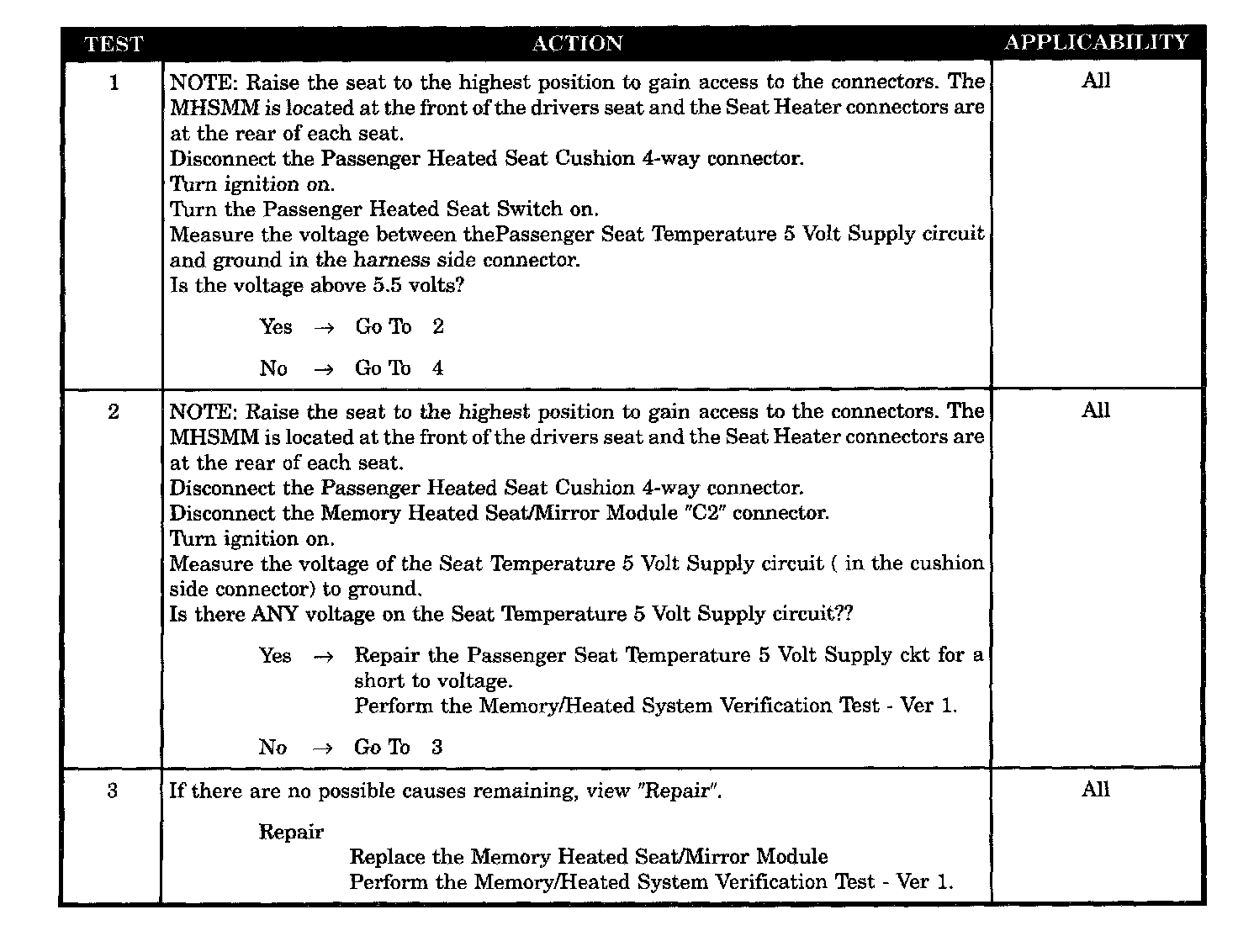

Test 1 - 3:

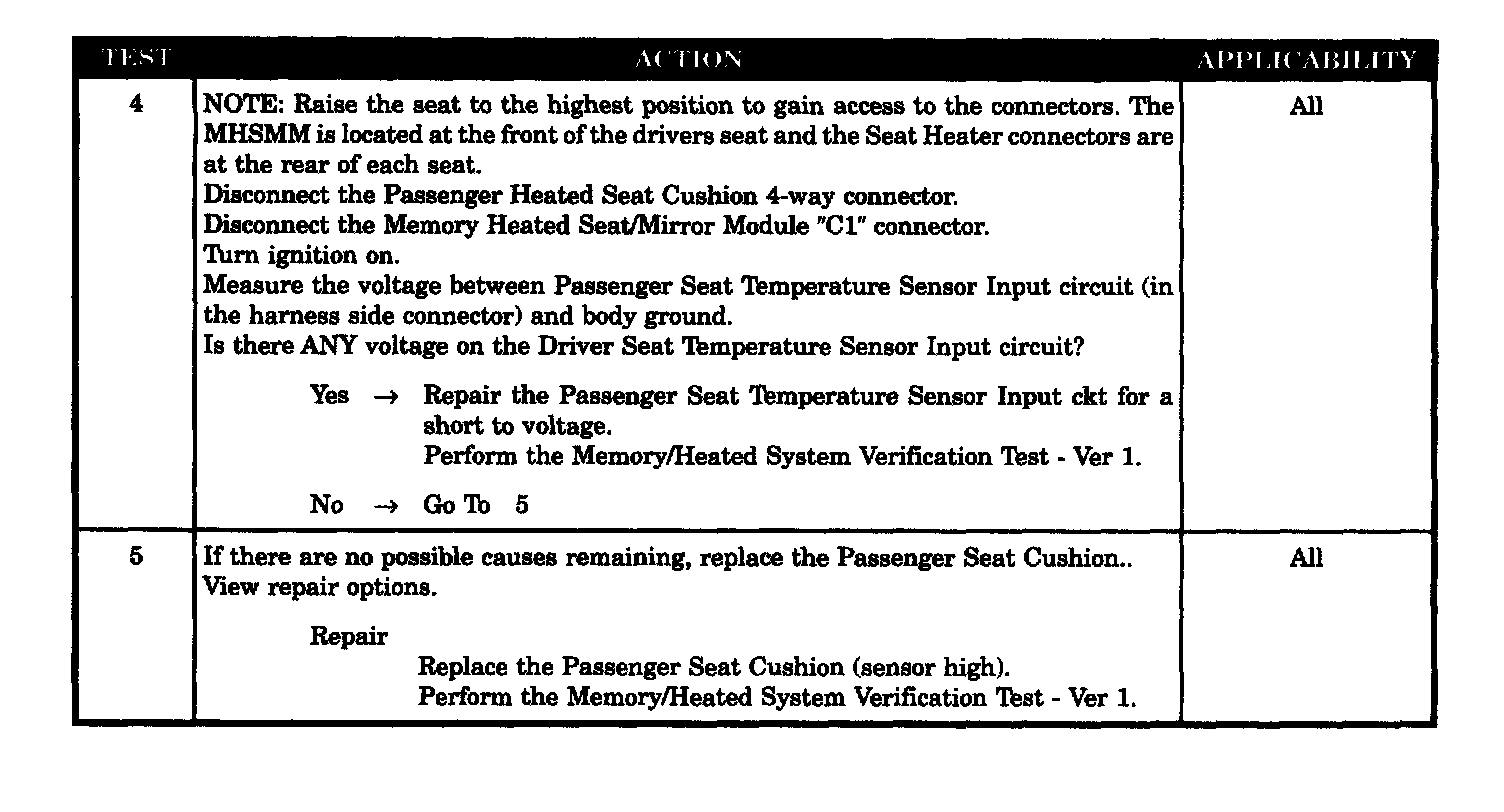

Test 4 - 5:

SYMPTOM
PASSENGER THERMISTOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition ON, during the heated seat operation.

SET CONDITION
This code is immediately set when the Heated Seat Module senses a greater value than the value stored in EEPROM.

POSSIBLE CAUSES
- Passenger seat TEMP sensor input CKT short to voltage
- Passenger seat temperature 5 volt supply wire short to voltage
- Passenger seat temperature sensor
- Memory heated seat/mirror module
