Driver Thermistor Out of Range Low

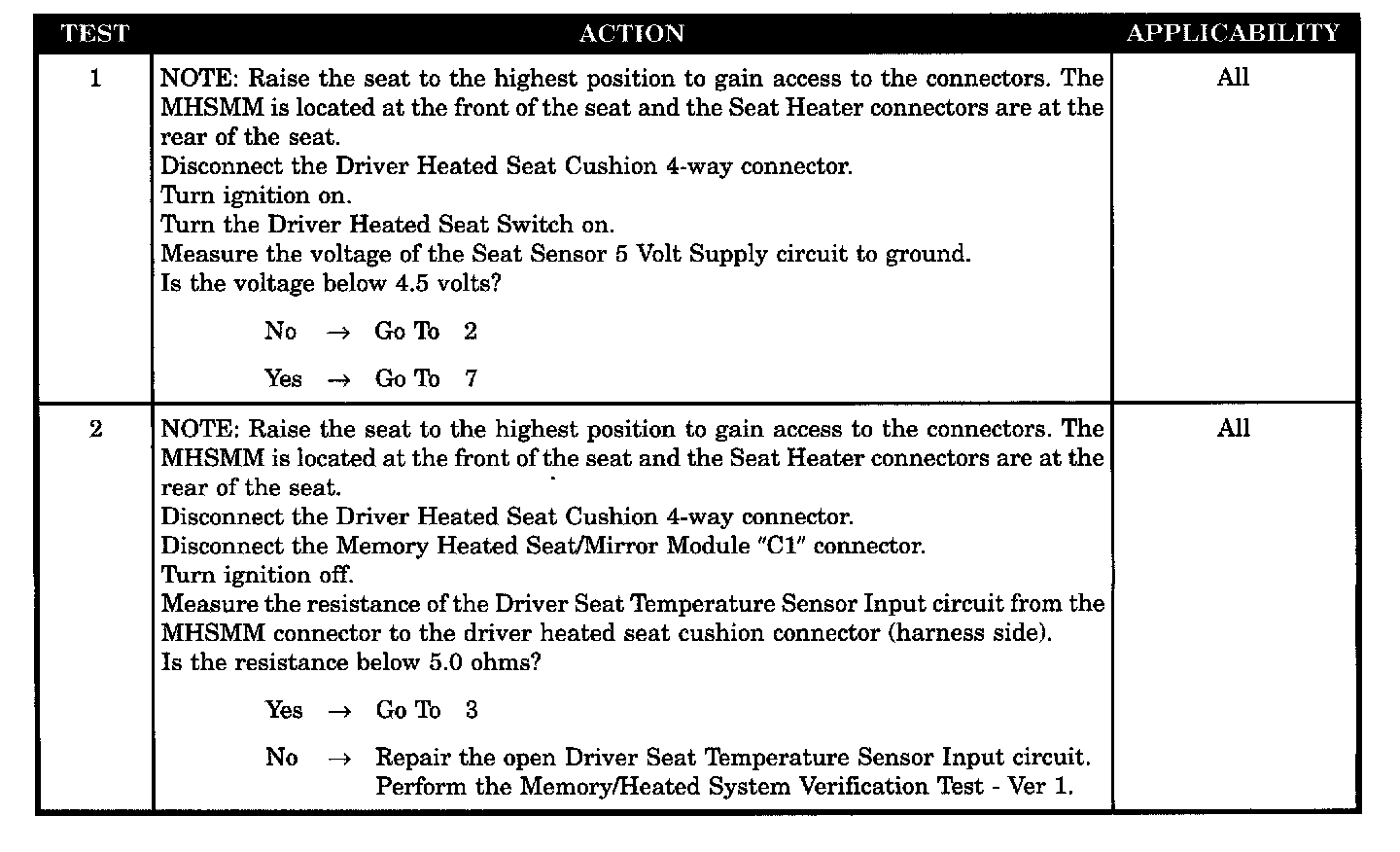

Test 1 - 2:

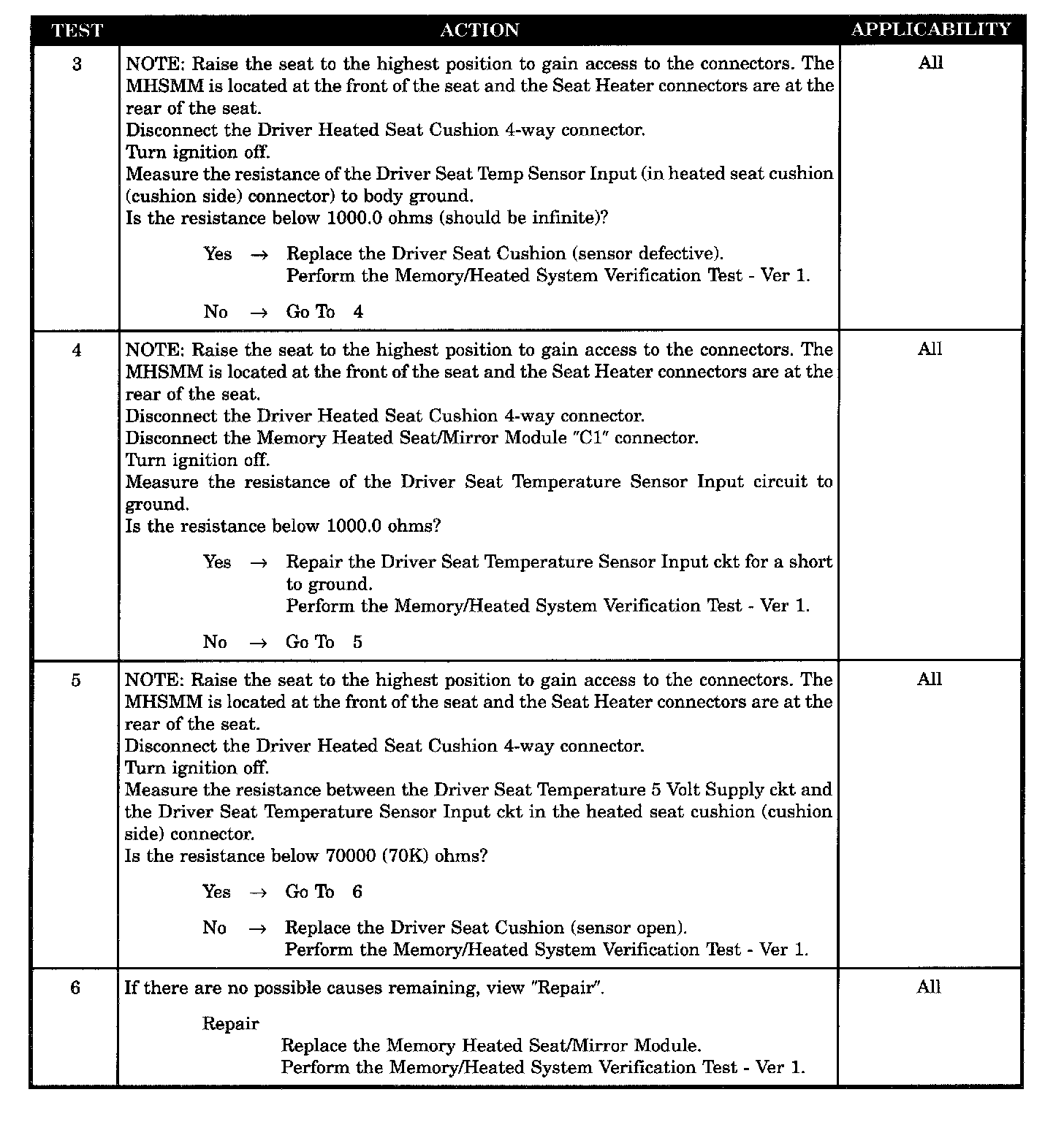

Test 3 - 6:

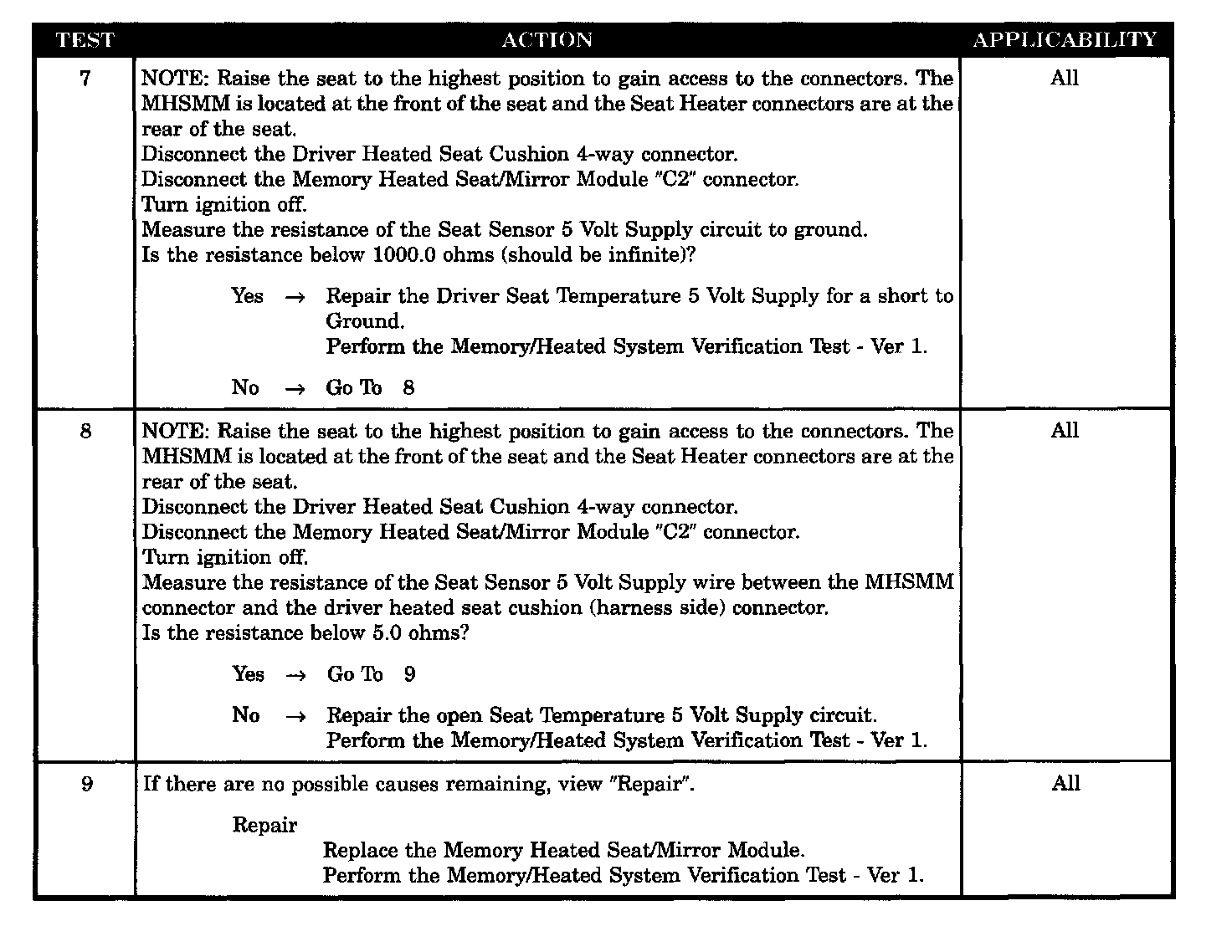

Test 7 - 9:

SYMPTOM
DRIVER THERMISTOR OUT OF RANGE LOW

WHEN MONITORED
Ignition ON, during the heated seat operation.

SET CONDITION
This code is immediately set when the Memory Heated Seat/Mirror Module senses a lesser value than the value stored in EEPROM.

POSSIBLE CAUSES
- Driver seat TEMP sensor input open
- Driver seat TEMP Sensor input short to ground
- Driver seat heater sensor open
- Driver seat TEMP sensor short to ground
- Seat temperature 5 volt wire open
- Driver seat temperature 5 volt supply short to ground
- Memory heated Seat/Mirror module
- Memory heated Seat/Mirror module
