Odometer Displays "No Bus"

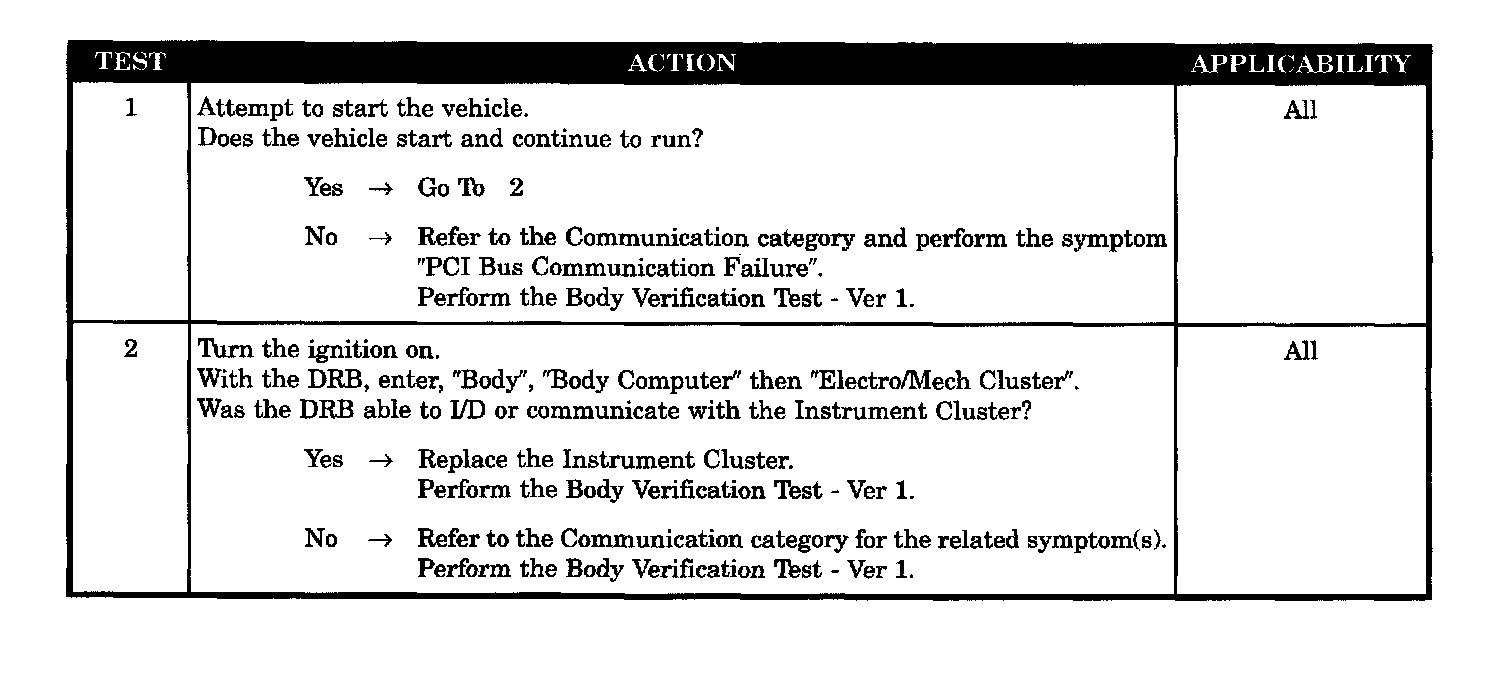

Test 1 - 2:




SYMPTOM
ODOMETER DISPLAYS "NO BUS"

POSSIBLE CAUSES
- Instrument cluster
- Attempt to start the vehicle
- With the DRB, attempt to communicate with the instrument cluster
