OTIS Messages Not Received

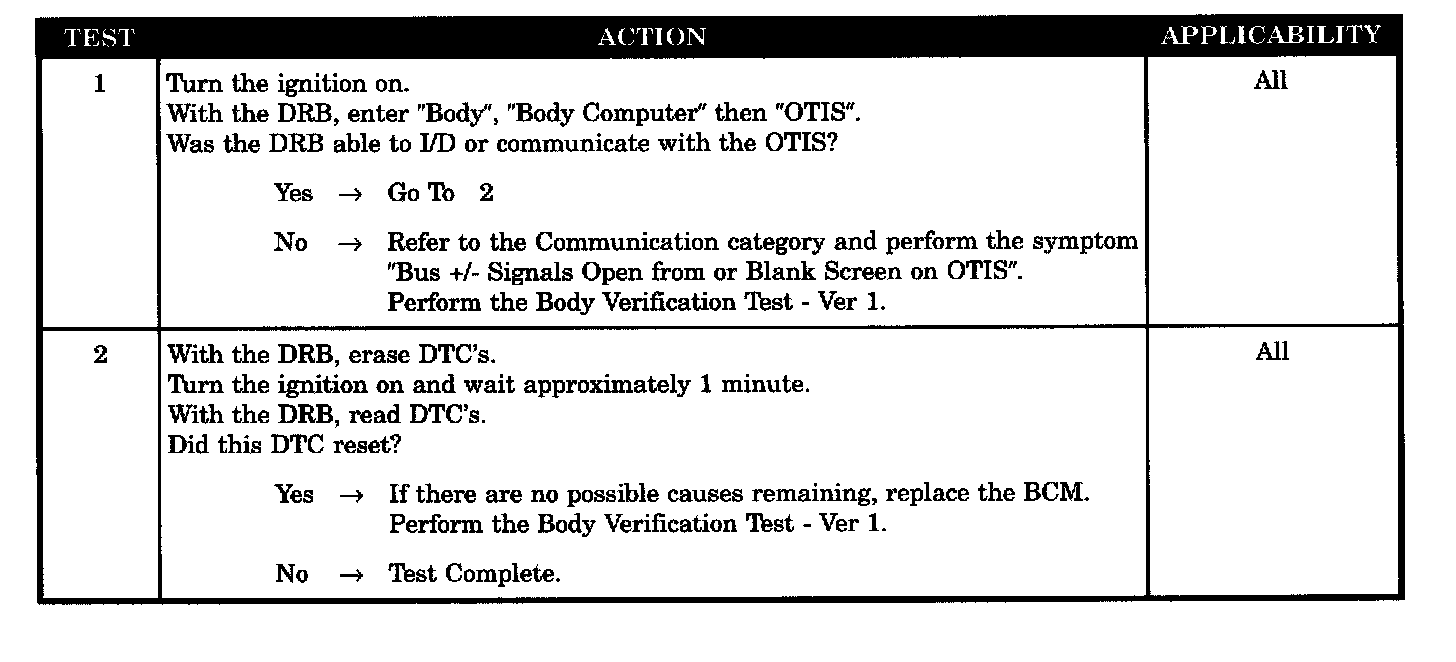

Test 1 - 2:




SYMPTOM
OTIS MESSAGES NOT RECEIVED

WHEN MONITORED
With the ignition ON.

SET CONDITION
The BCM has not received any PCI Bus messages from the Overhead Travel Information System (OTIS) for at least 14 seconds.

POSSIBLE CAUSES
- Attempt to communicate with the OTIS
- Body control module
