Fused Ignition Switch Output to BCM

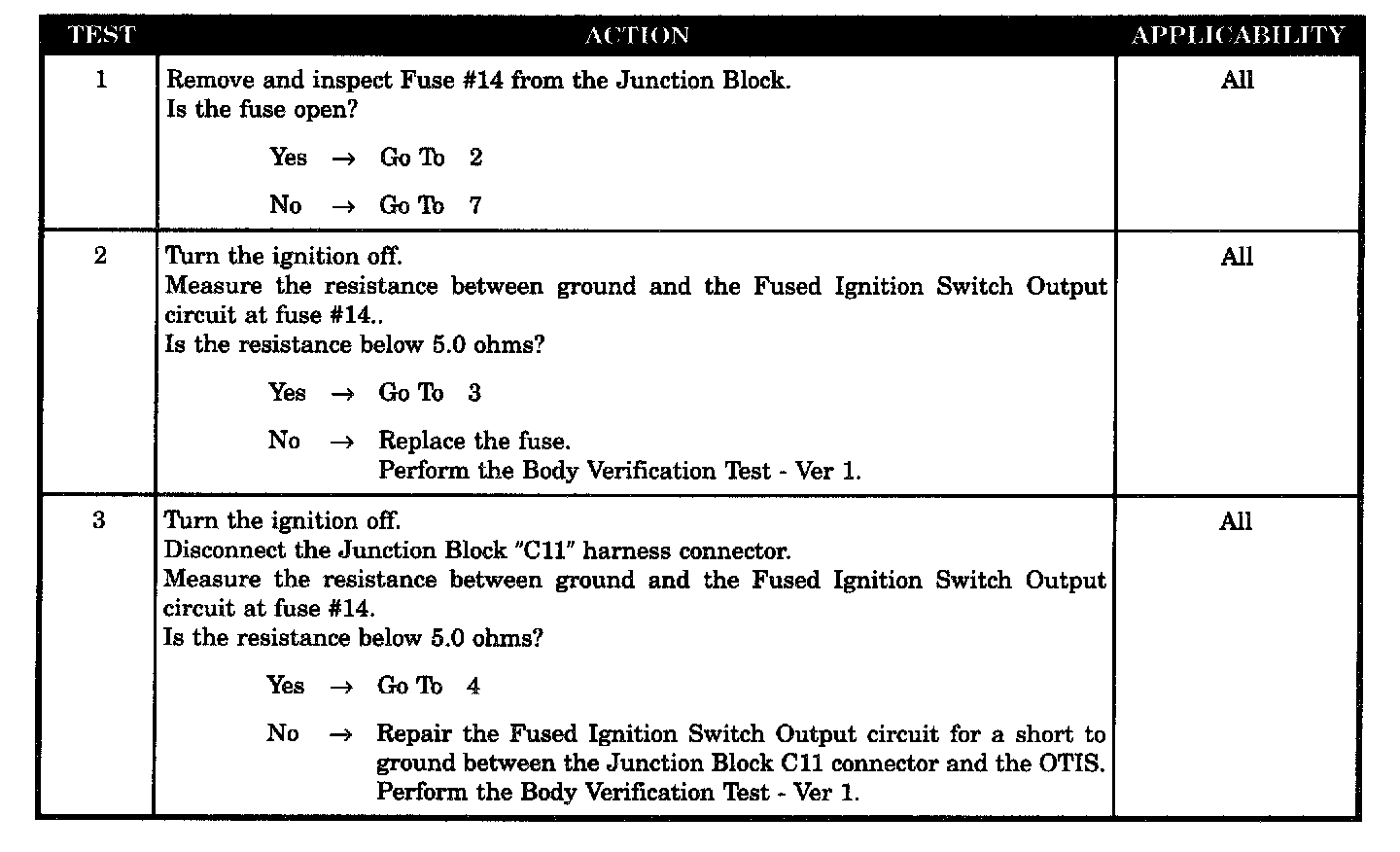

Test 1 - 3:

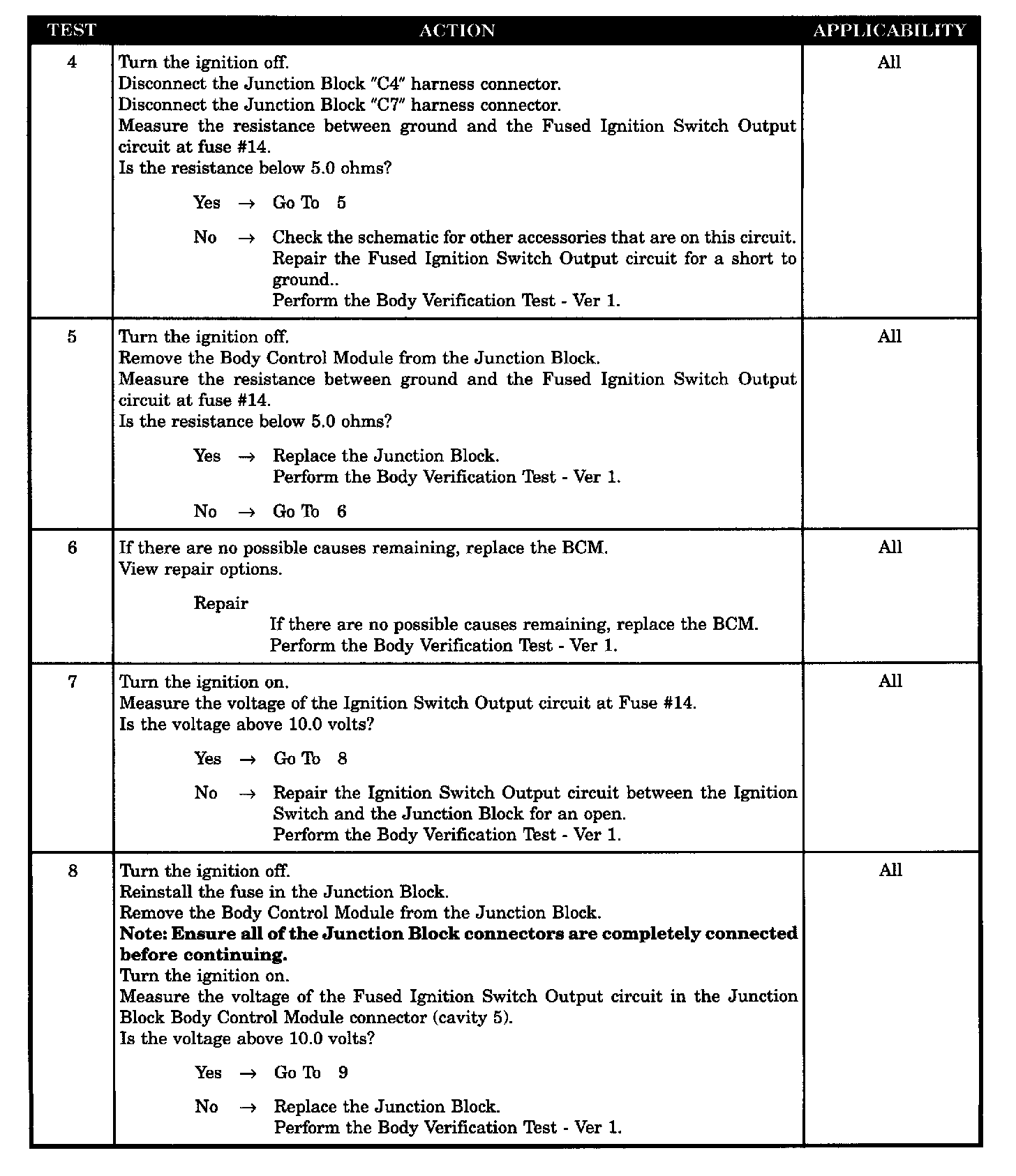

Test 4 - 8:

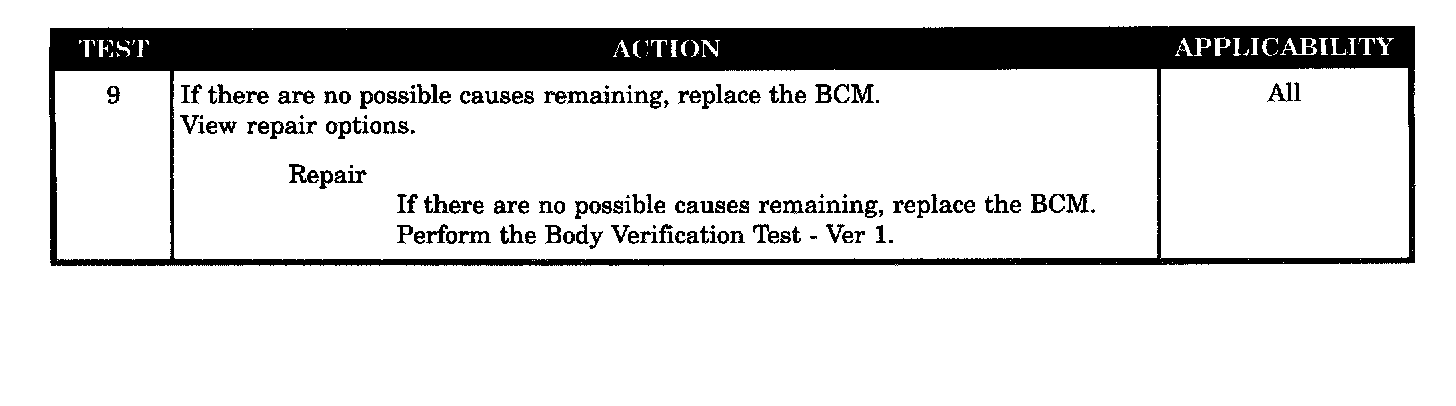

Test 9:

SYMPTOM
USED IGNITION SWITCH OUTPUT TO BCM

POSSIBLE CAUSES
- Check for a short to ground
- Disconnect the junction block C11 connector and check for a short to ground
- Disconnect the junction block C4 & C7 connectors and check for a short to ground
- Check the voltage supply to fuse #14
- Check the voltage supply to the BCM (J/B BCM CONN cavity 5)
- Remove the BCM from the junction block and check for a short to ground
- Body control module
- Body control module
