EATX Bus Communication Failure

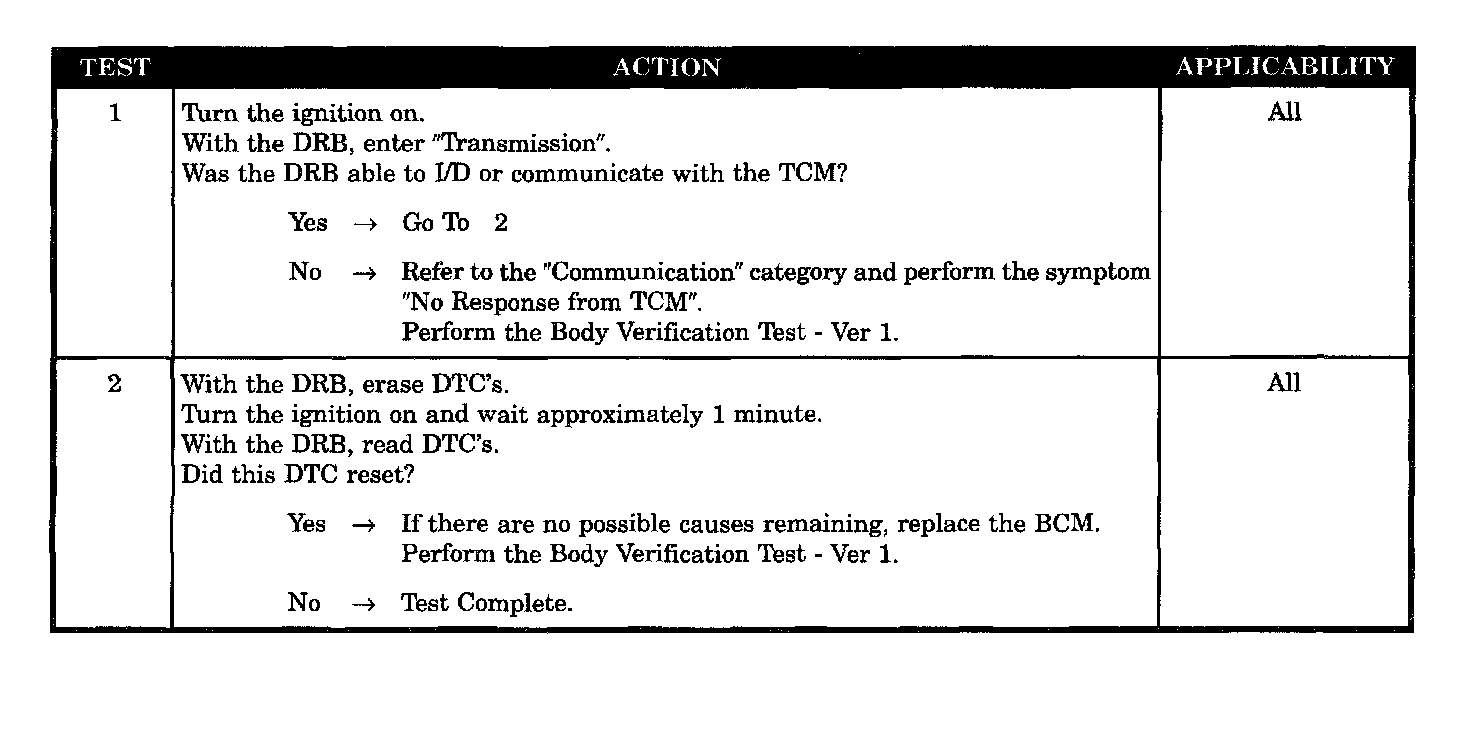

Test 1 - 2:

SYMPTOM
EATX BUS COMMUNICATION FAILURE

WHEN MONITORED
Ignition ON.

SET CONDITION
The BCM has not received any PCI Bus messages from the TCM for at least 18 seconds.

POSSIBLE CAUSES
- Attempt to communicate with the TCM
- Body control module
