Battery Power to Module Disconnected

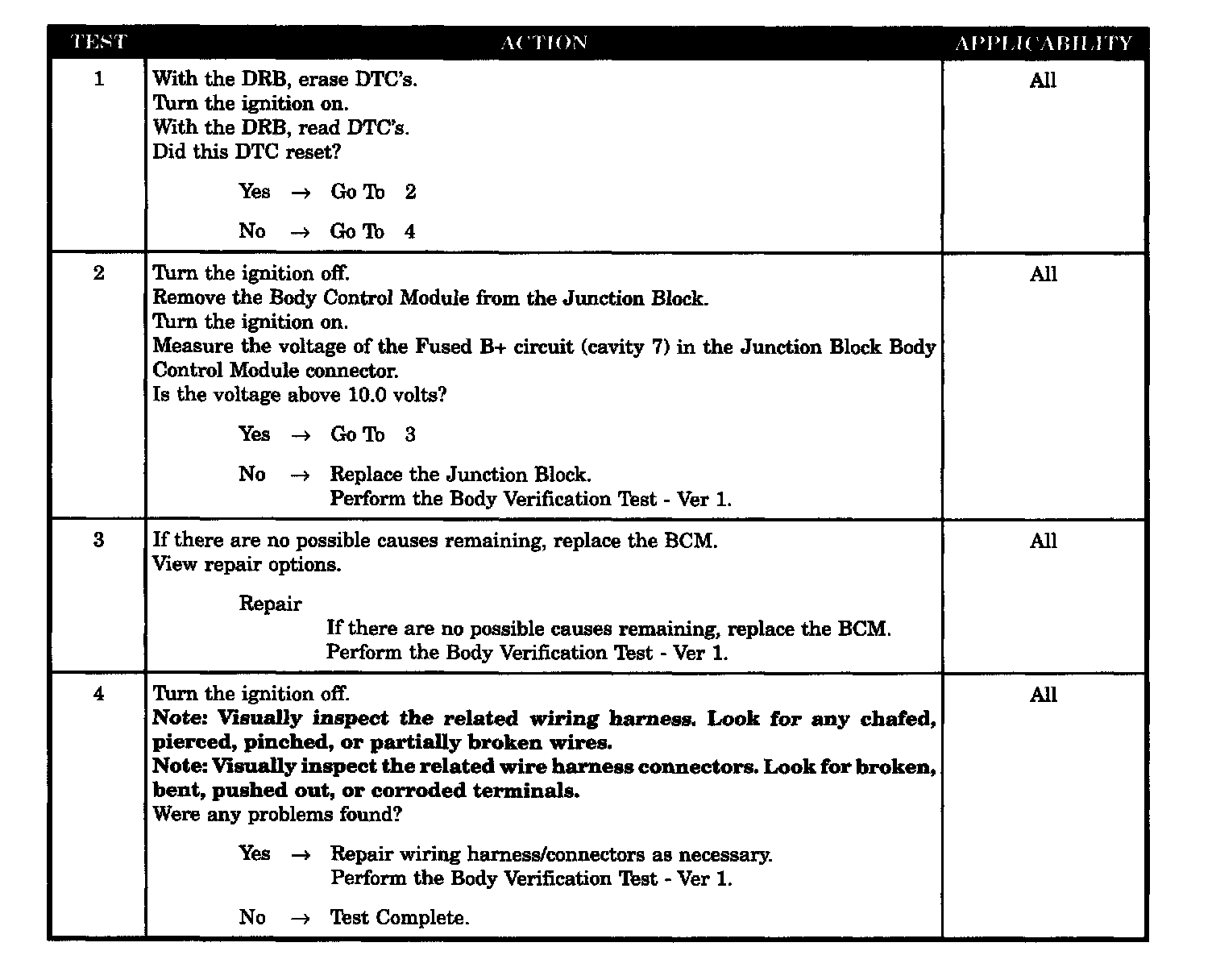

Test 1 - 4:

SYMPTOM
BATTERY POWER TO MODULE DISCONNECTED

WHEN MONITORED
With ignition ON.

SET CONDITION
The BCM receives ignition ON voltage, but no battery power feed.

POSSIBLE CAUSES
- Check the fused B+ CKT (in junction block)
- Wiring harness intermittent defect
- Body control module
