Rear Output Shorted

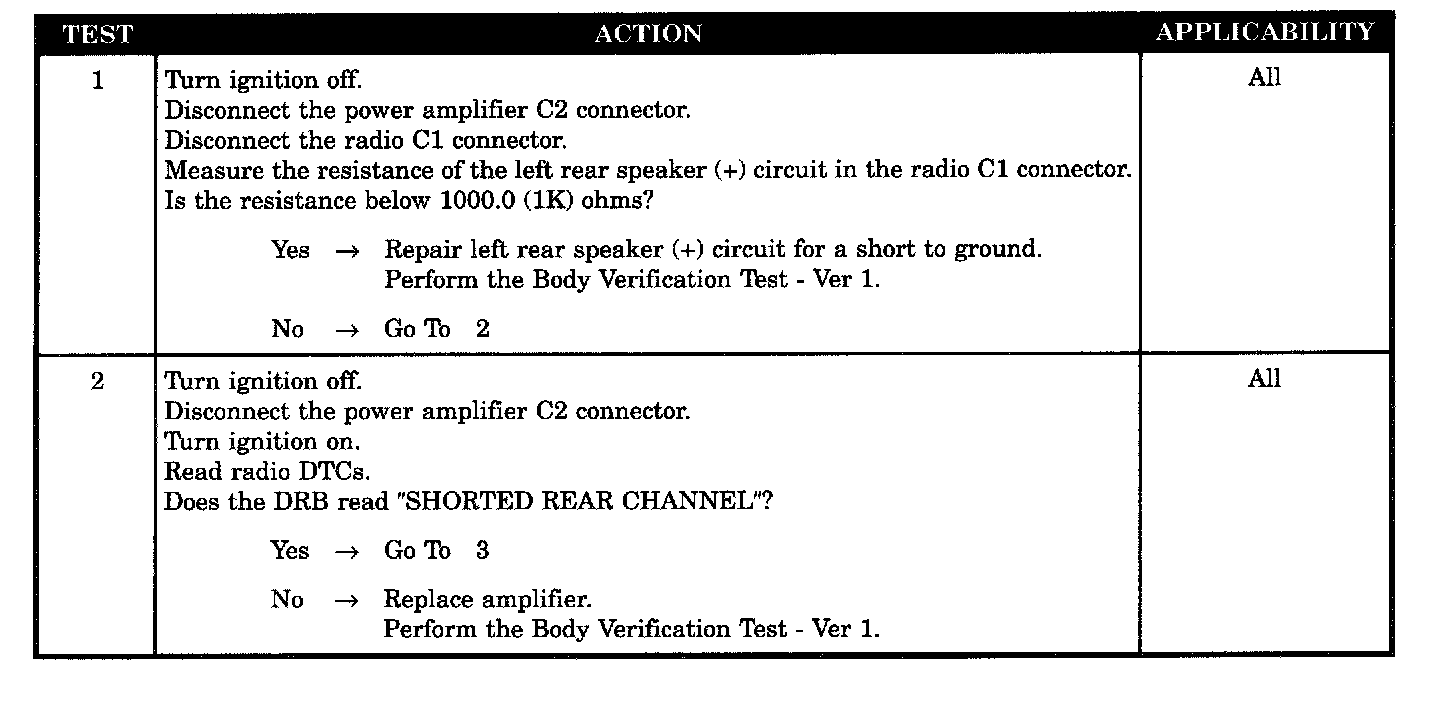

Test 1 - 2:

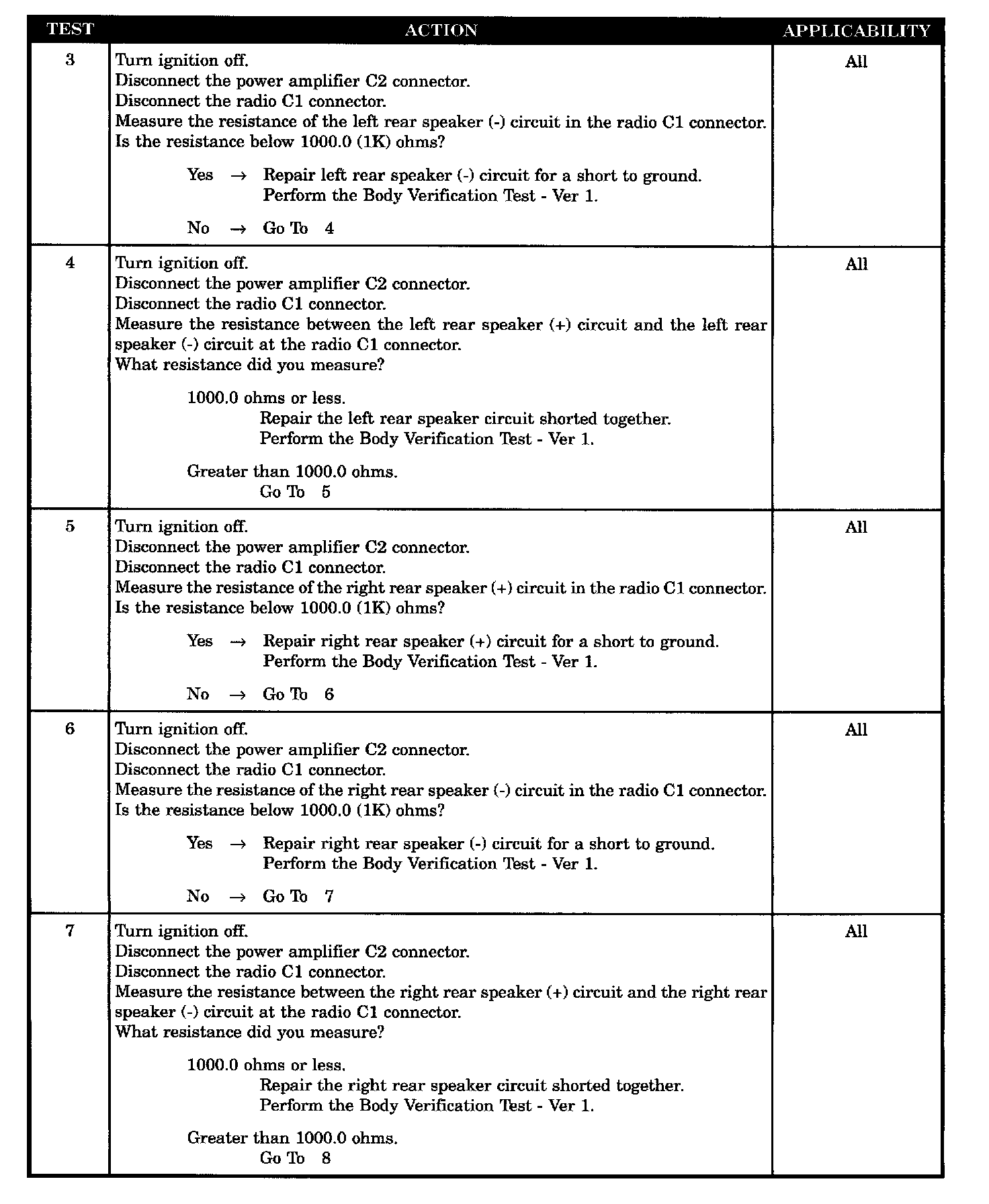

Test 3 - 7:

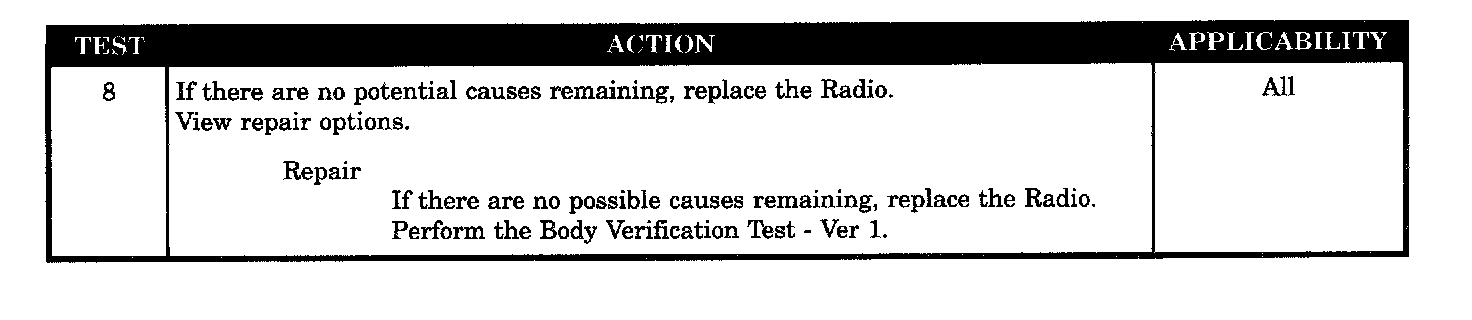

Test 8:

SYMPTOM
REAR OUTPUT SHORT

WHEN MONITORED
Monitored any time the radio is turned ON.

SET CONDITION
The radio has sensed a short on it's rear output channel.

POSSIBLE CAUSES
- Left rear (+) shorted to ground
- Left rear (-) shorted to ground
- Left rear channel shorted together
- Right rear (+) shorted to ground
- Right rear (-) shorted to ground
- Right rear channel shorted together
- Power amplifier (input section)
- Radio output section
