Power Supply Too High

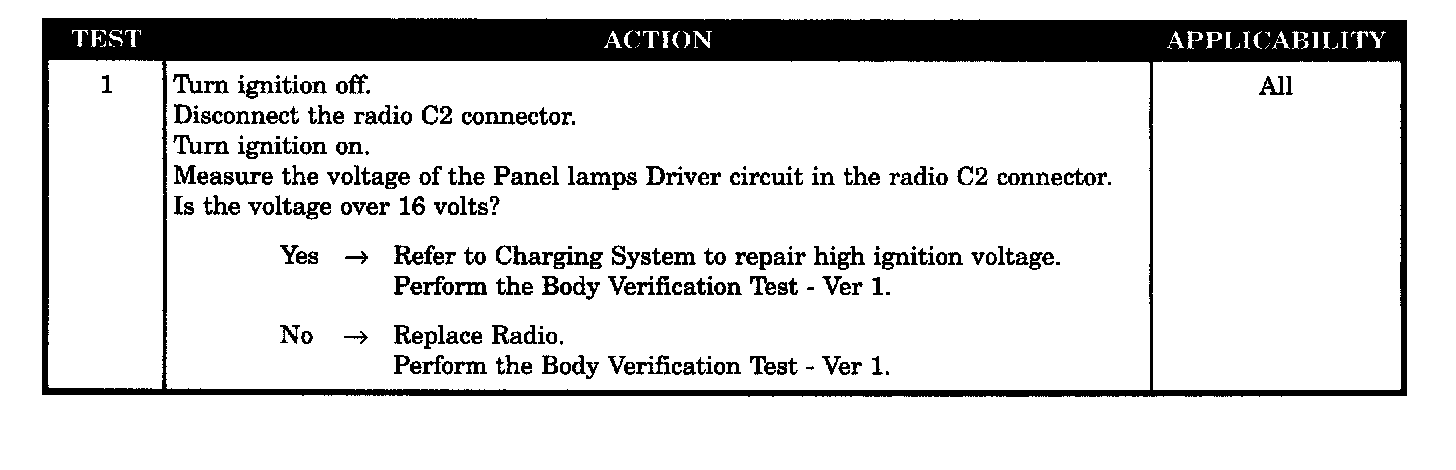

Test 1:




SYMPTOM
POWER SUPPLY TOO HIGH

WHEN MONITORED
Continuously with ignition ON and radio turned ON.

SET CONDITION
The code will set if the CD Changer detects ignition voltage over 16 volts for 5 seconds.

POSSIBLE CAUSES
- Power supply of radio
- Power supply too high
