Poor Sound From Right Rear Door Speaker

Test 1 - 2:

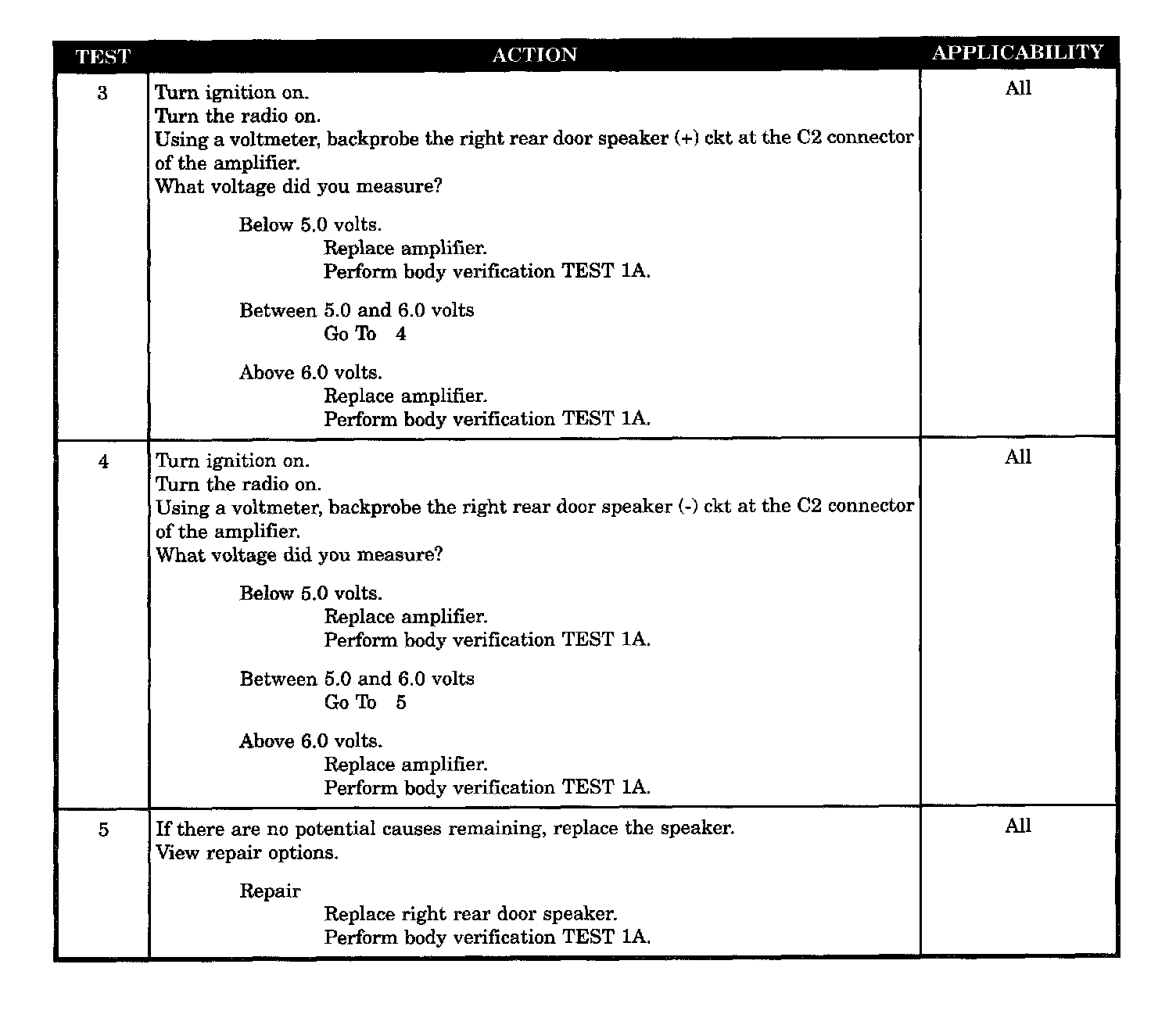

Test 3 - 5:

SYMPTOM
POOR SOUND FROM RIGHT REAR DOOR SPEAKER

TEST NOTE
This symptom is diagnosed using the test NO SOUND FROM RIGHT REAR DOOR SPEAKER.

POSSIBLE CAUSES
- Right rear door speaker (+) CKT. open
- Right rear door speaker (-) CKT. open
- Right rear door speaker
- Right rear door SPKR (+) section of amplifier
- Right rear door SPKR (-) section of amplifier
