Poor Sound From Right Front Door Speaker

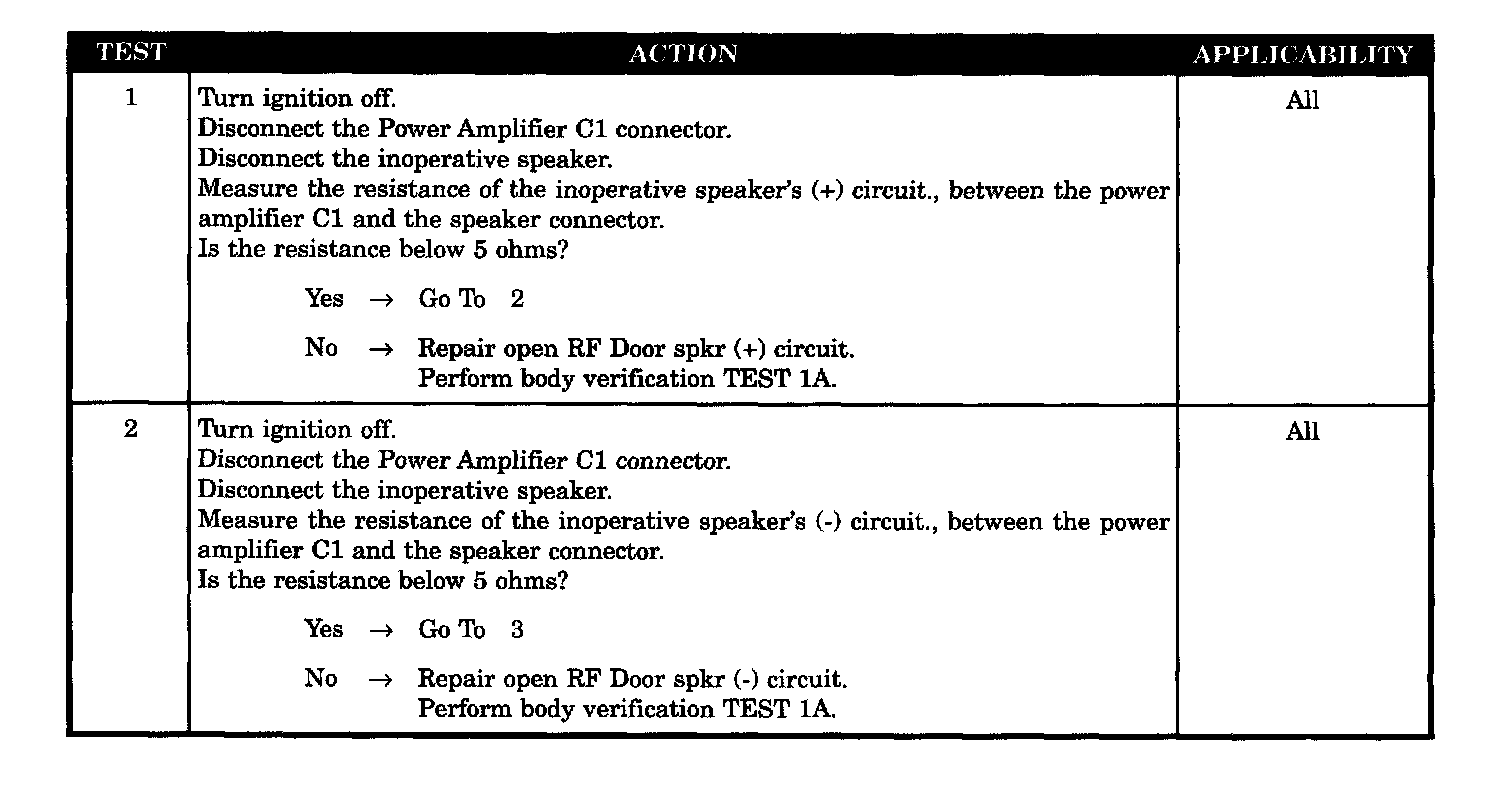

Test 1 - 2:

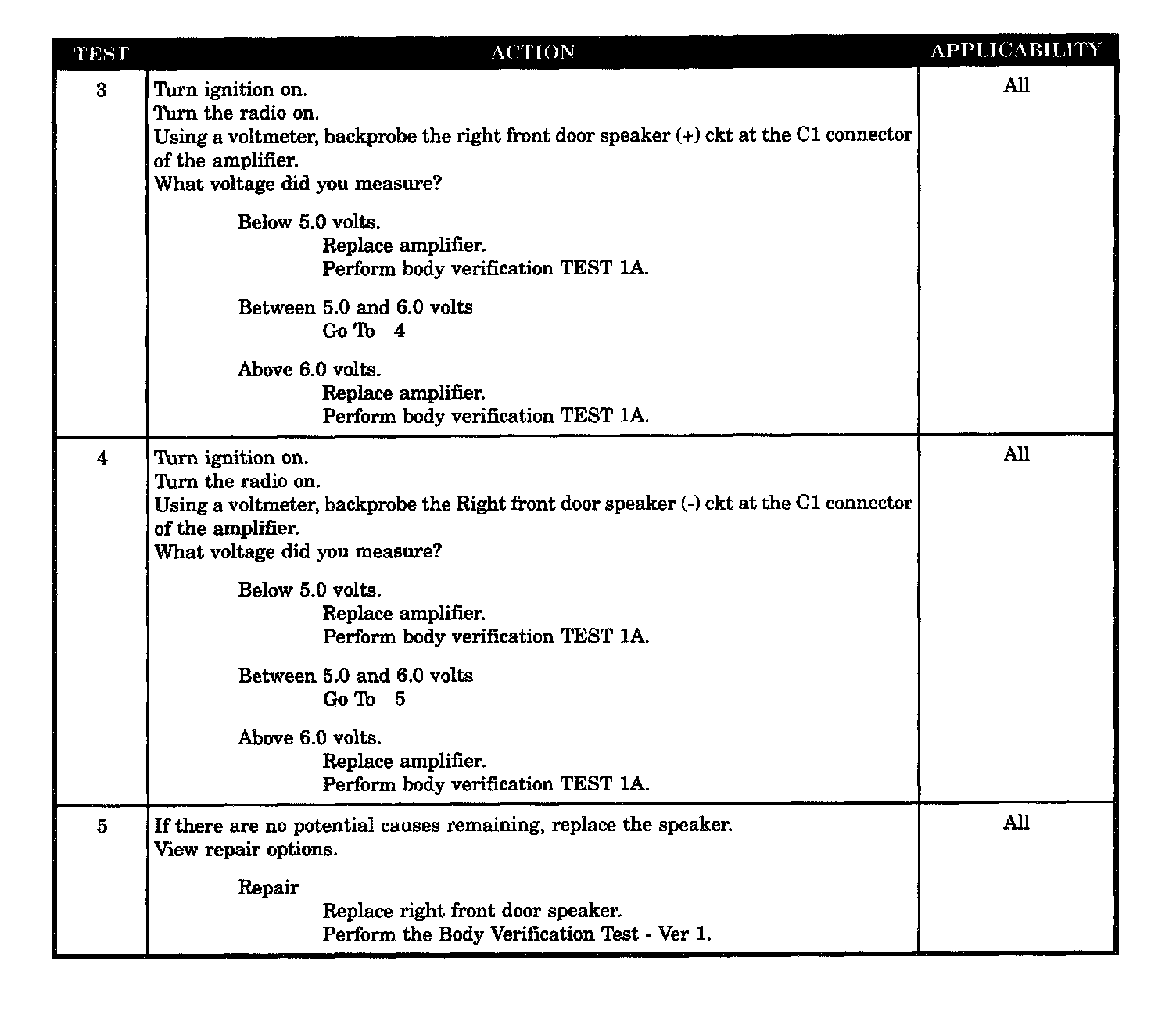

Test 3 - 5:

SYMPTOM
POOR SOUND FROM RIGHT FRONT DOOR SPEAKER

TEST NOTE
This symptom is diagnosed using the test NO SOUND FROM RIGHT FRONT DOOR SPEAKER.

POSSIBLE CAUSES
- Right front door speaker (+) CKT. open
- Right front door speaker (-) CKT. open
- Right front door speaker
- Right front door (+) section of amplifier
- Right front door (-) section of amplifier
