Front Output Shorted

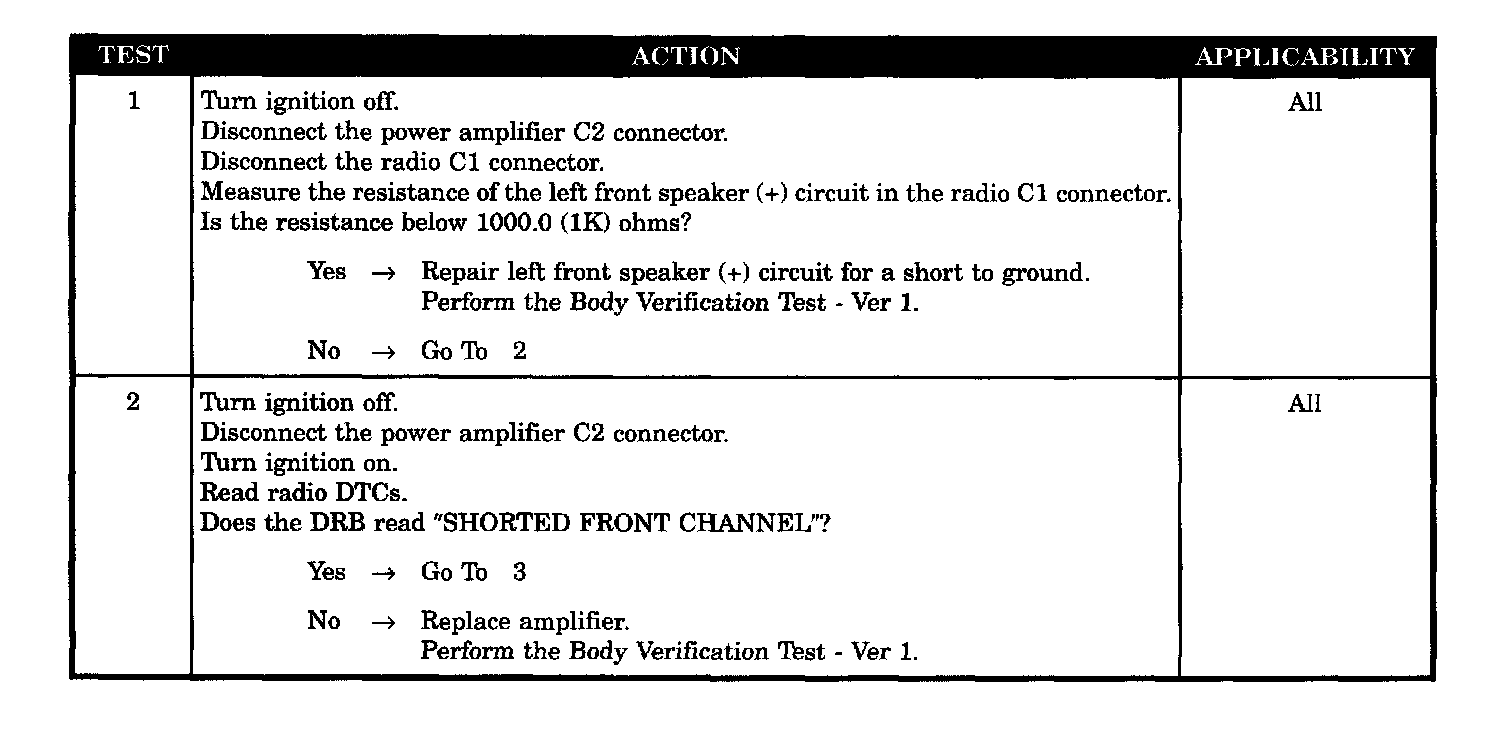

Test 1 - 2:

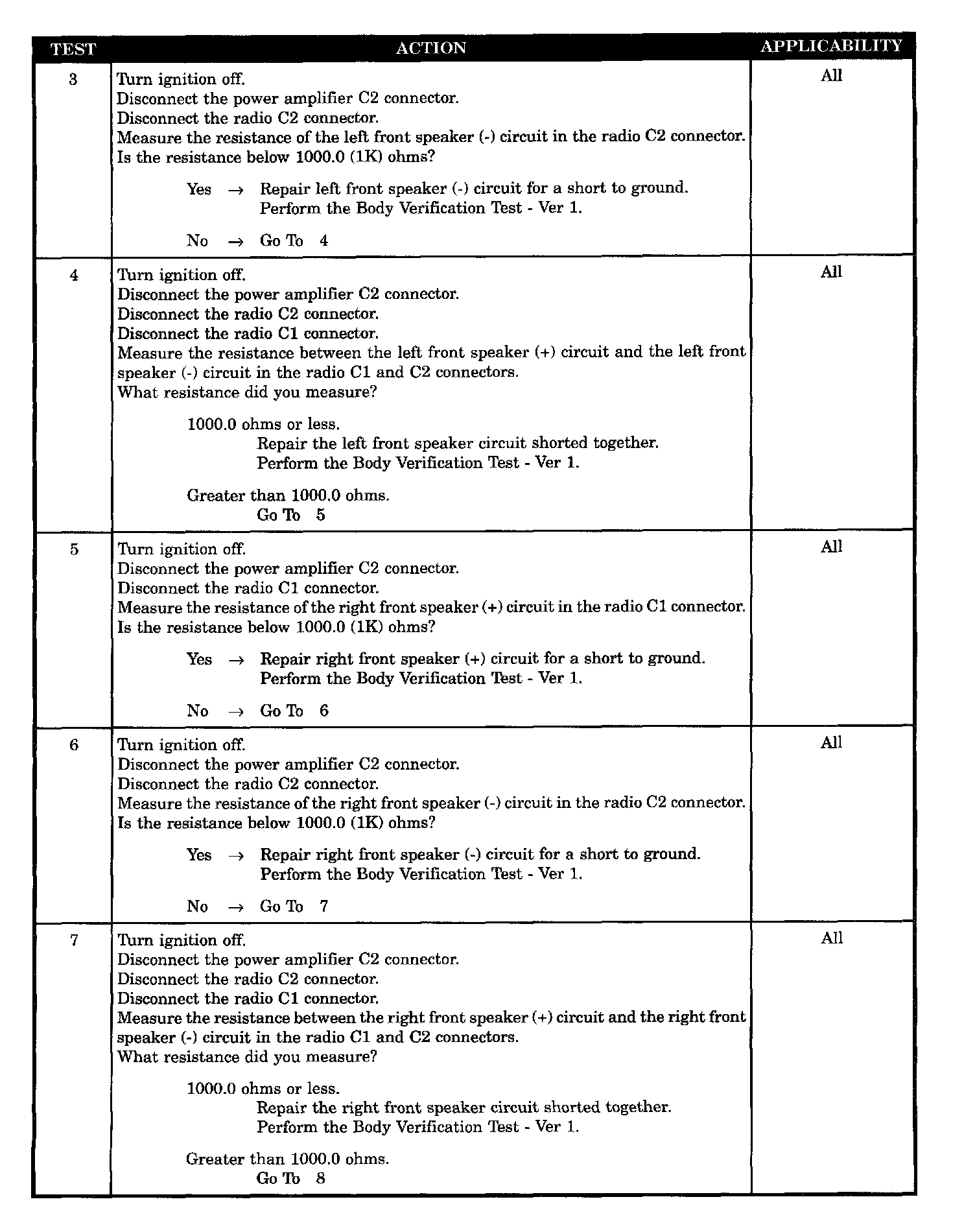

Test 3 - 7:

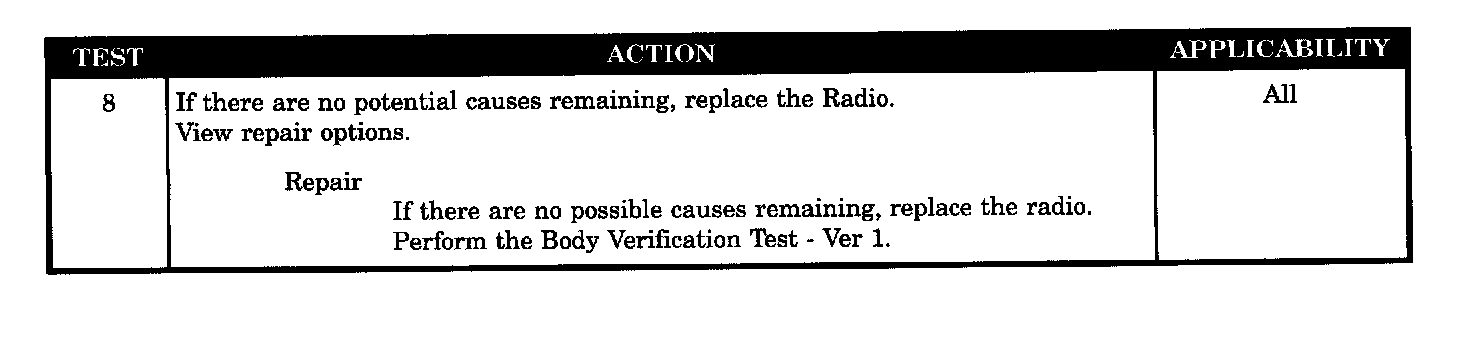

Test 8:

SYMPTOM
FRONT OUTPUT SHORT

WHEN MONITORED
Monitored any time the radio is turned ON.

SET CONDITION
The radio has sensed a short on it's front output channel.

POSSIBLE CAUSES
- Left front (+) shorted to ground
- Left front (-) shorted to ground
- Left front channel shorted together
- Right front (+) shorted to ground
- Right front (-) shorted to ground
- Right front channel shorted together
- Power amplifier (input section)
- Radio output section
