Right Rear Sensor Signal Failure

Symptom:
RIGHT REAR SENSOR SIGNAL FAILURE

When Monitored and Set Condition:
RIGHT REAR SENSOR SIGNAL FAILURE

When Monitored: Wheel speed comparison is checked at drive off or every 7 milliseconds (ms). Wheel speed continuity is checked every 7 milliseconds. Wheel speed phase length supervision is checked every 7 milliseconds.

Set Condition: If, during an ABS stop, the CAB commands any valve solenoid on for an extended length of time, and does not see a corresponding wheel speed change, the Diagnostic Trouble Code (DTC) is set. The DTC can also set if the signal is missing or erratic.

POSSIBLE CAUSES

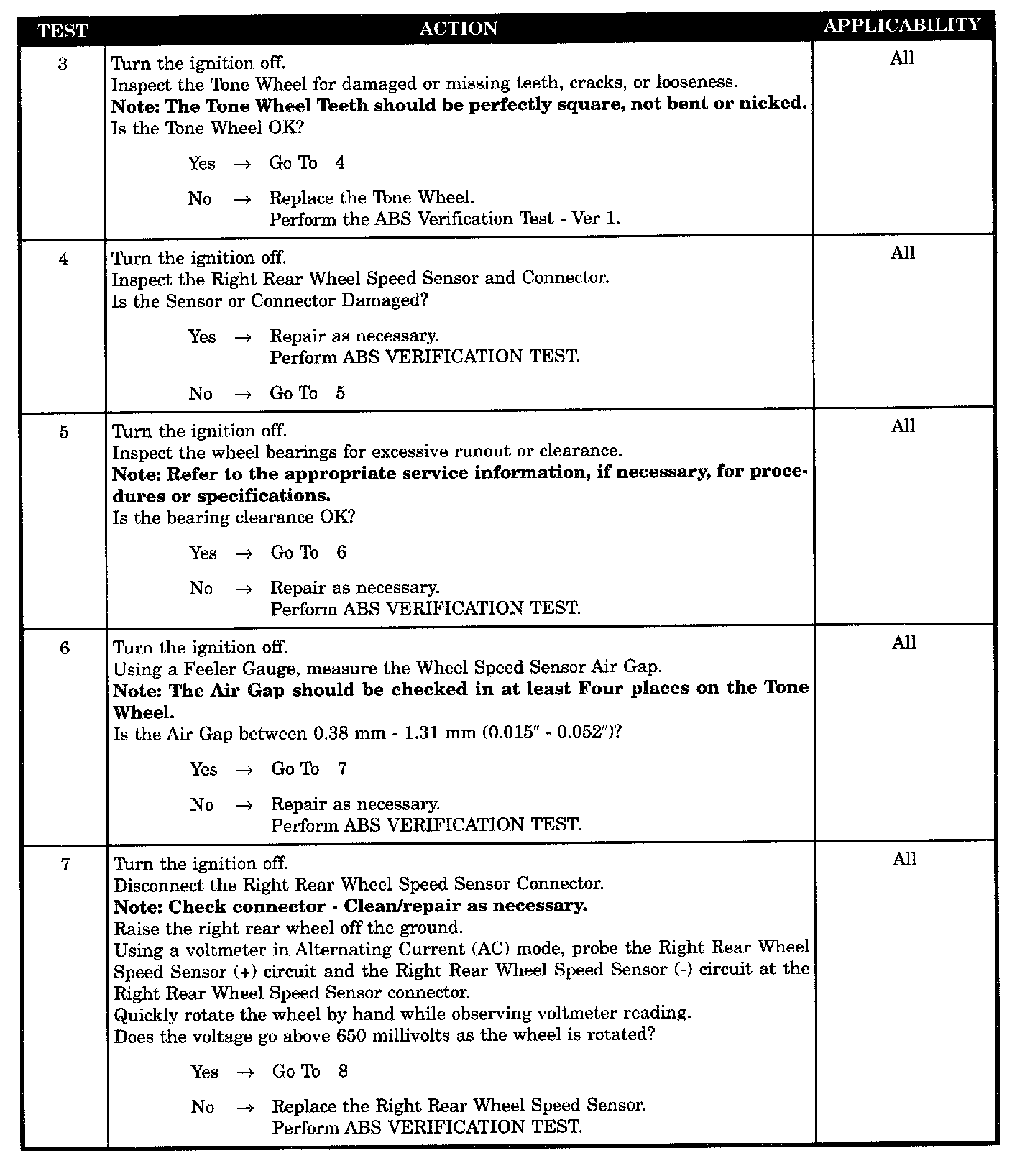

TONE WHEEL DEFECTIVE
RIGHT REAR WHEEL SPEED SENSOR FUNCTIONAL TEST
INTERMITTENT SIGNAL DTC

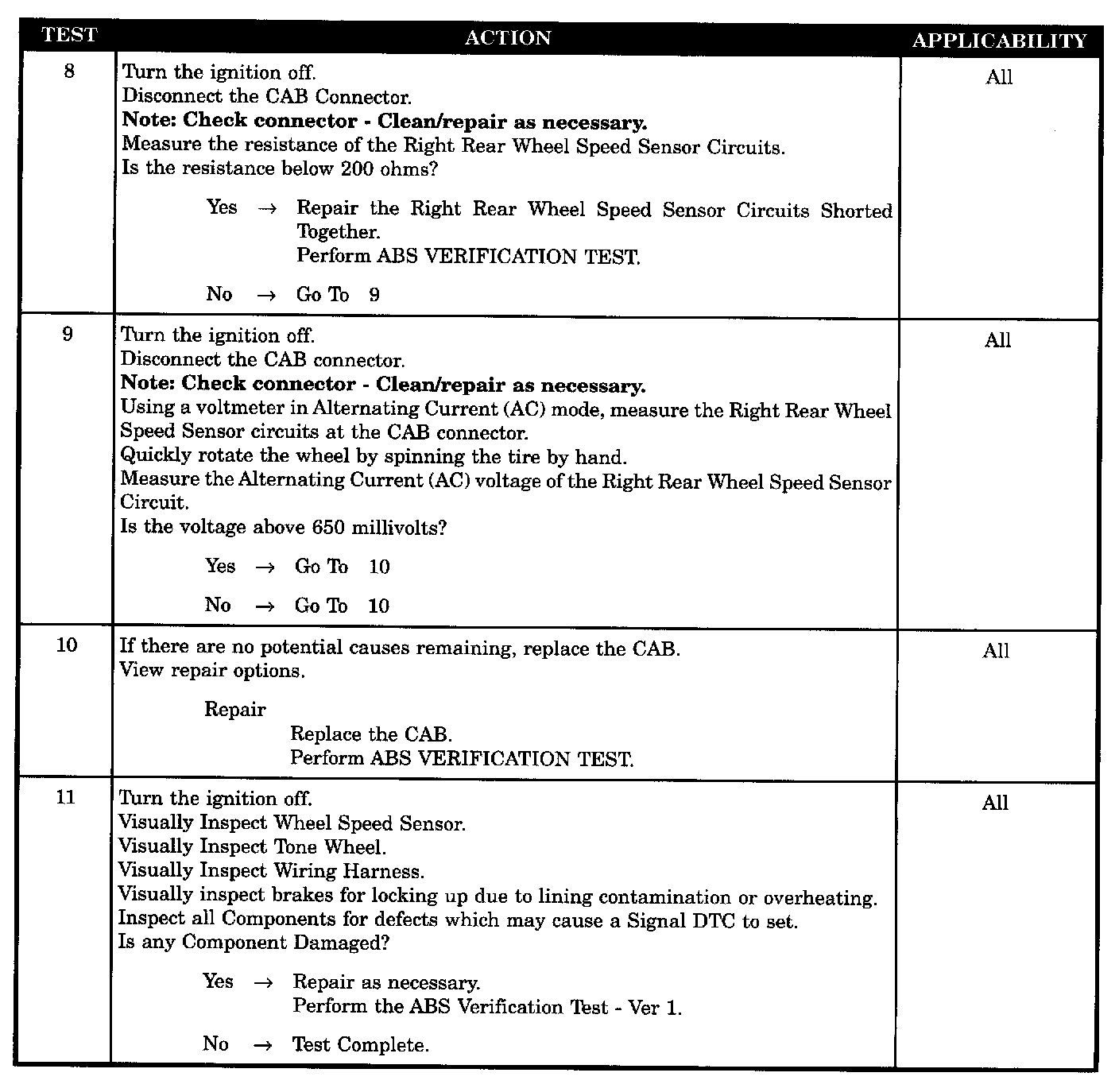

RIGHT REAR WHEEL SPEED SENSOR CIRCUITS SHORTED TOGETHER
CAB DEFECTIVE - UNABLE TO READ RIGHT REAR WHEEL SPEED SENSOR SIGNAL
RIGHT REAR WHEEL BEARING OUT OF SPECIFICATION
RIGHT REAR WHEEL SPEED SENSOR AIR GAP OUT OF SPECIFICATION
RIGHT REAR WHEEL SPEED SENSOR OR CONNECTOR DAMAGED
