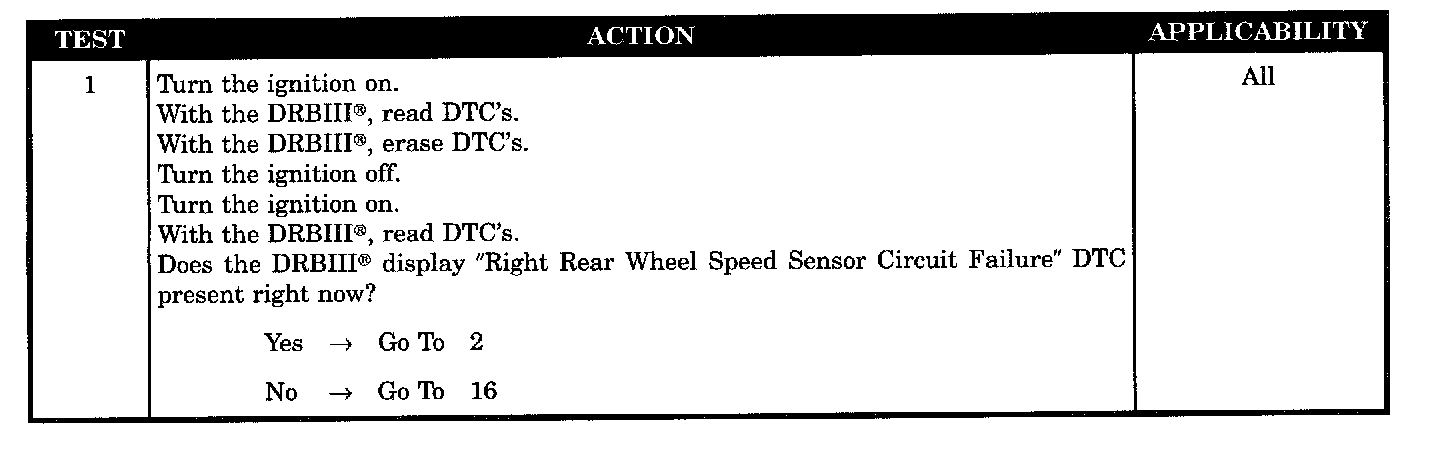

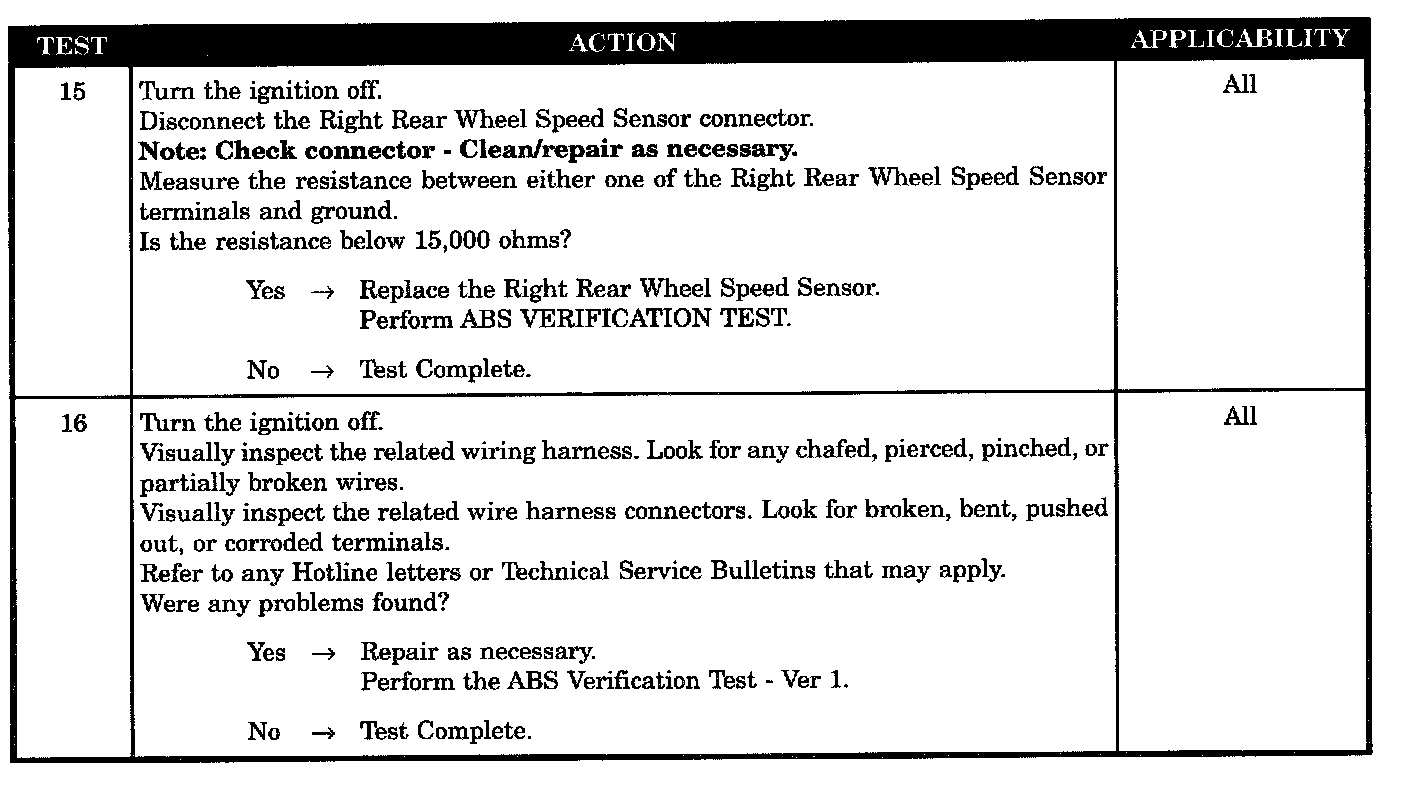

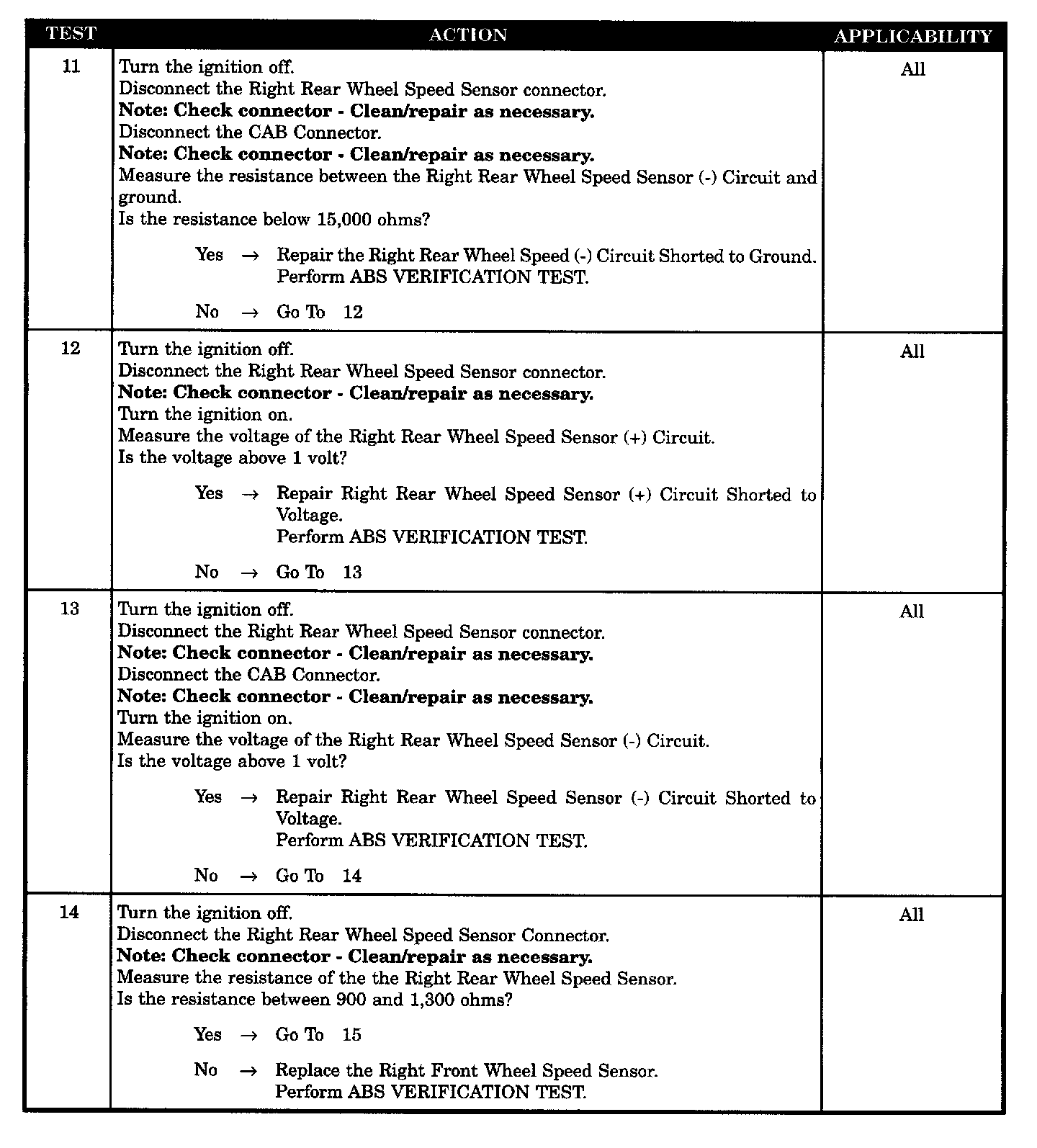

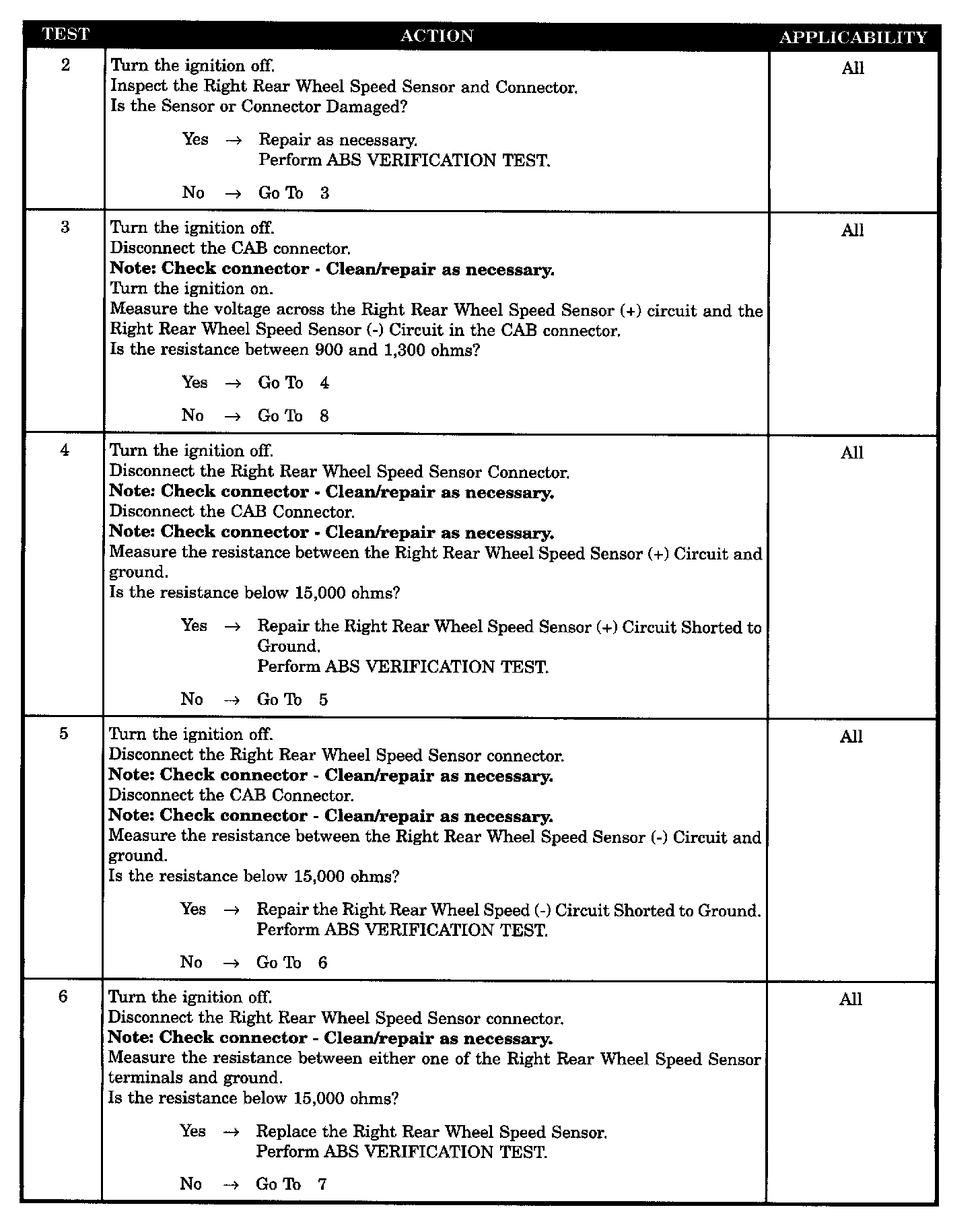

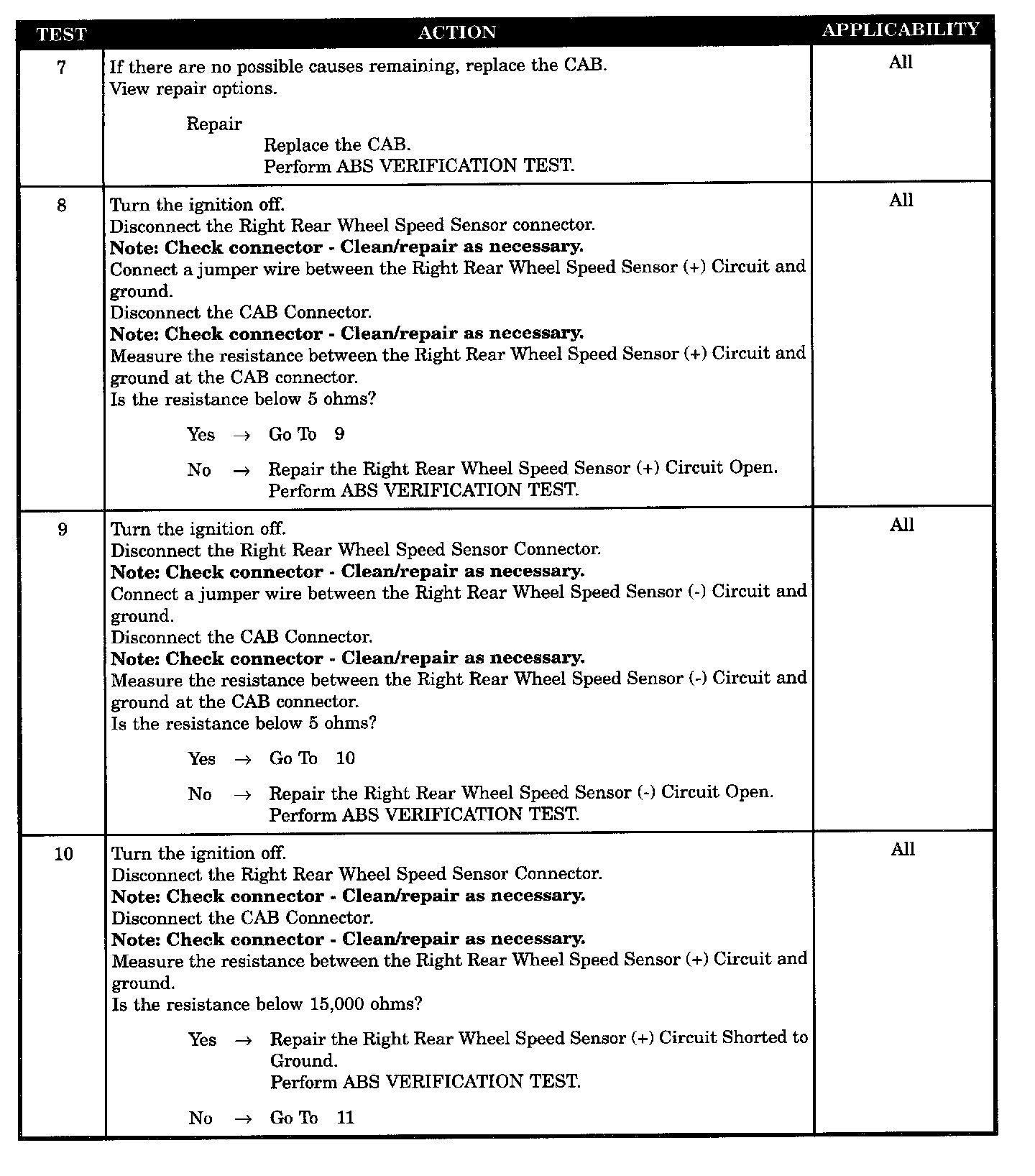

Right Rear Sensor Circuit Failure

Symptom:
RIGHT REAR SENSOR CIRCUIT FAILURE

When Monitored and Set Condition:
RIGHT REAR SENSOR CIRCUIT FAILURE

When Monitored: Ignition on. The CAB monitors the wheel speed circuit every 7 milliseconds (ms).

Set Condition: If the CAB detects an open or shorted wheel speed sensor circuit, the Diagnostic Trouble Code (DTC) will set.

POSSIBLE CAUSES
RIGHT REAR WHEEL SPEED SENSOR (+) CIRCUIT OPEN
RIGHT REAR WHEEL SPEED SENSOR (-) CIRCUIT OPEN
RIGHT REAR WHEEL SPEED SENSOR (+) CIRCUIT SHORTED TO GROUND
RIGHT REAR WHEEL SPEED SENSOR (-) CIRCUIT SHORTED TO GROUND
RIGHT REAR WHEEL SPEED SENSOR (+) CIRCUIT SHORTED TO VOLTAGE
RIGHT REAR WHEEL SPEED SENSOR CIRCUIT SHORTED TO VOLTAGE
INTERMITTENT CIRCUIT DTC
RIGHT REAR WHEEL SPEED SENSOR RESISTANCE OUT OF SPECIFICATION
RIGHT REAR WHEEL SPEED SENSOR DEFECTIVE - SHORTED TO GROUND
CAB DEFECTIVE- RIGHT REAR WHEEL SPEED SENSOR (+) CIRCUIT OPEN
CAB DEFECTIVE-RIGHT REAR WHEEL SPEED SENSOR (-) CIRCUIT OPEN
CAB DEFECTIVE - RIGHT REAR WHEEL SPEED SENSOR (+) CIRCUIT SHORTED TO GROUND
RIGHT REAR WHEEL SPEED SENSOR OR CONNECTOR DAMAGE
